Irregular Video Wall Controller
Support HDMI / VGA / Composite / USB input
HW5210
About HW5210
[ HW5210 ] can be arranged in different sizes of screens and screens to create a stylish and personalized spliced video wall image. Supports signal input (HDMI / VGA / Composite / USB) to switch the sync output to the HDMI display.

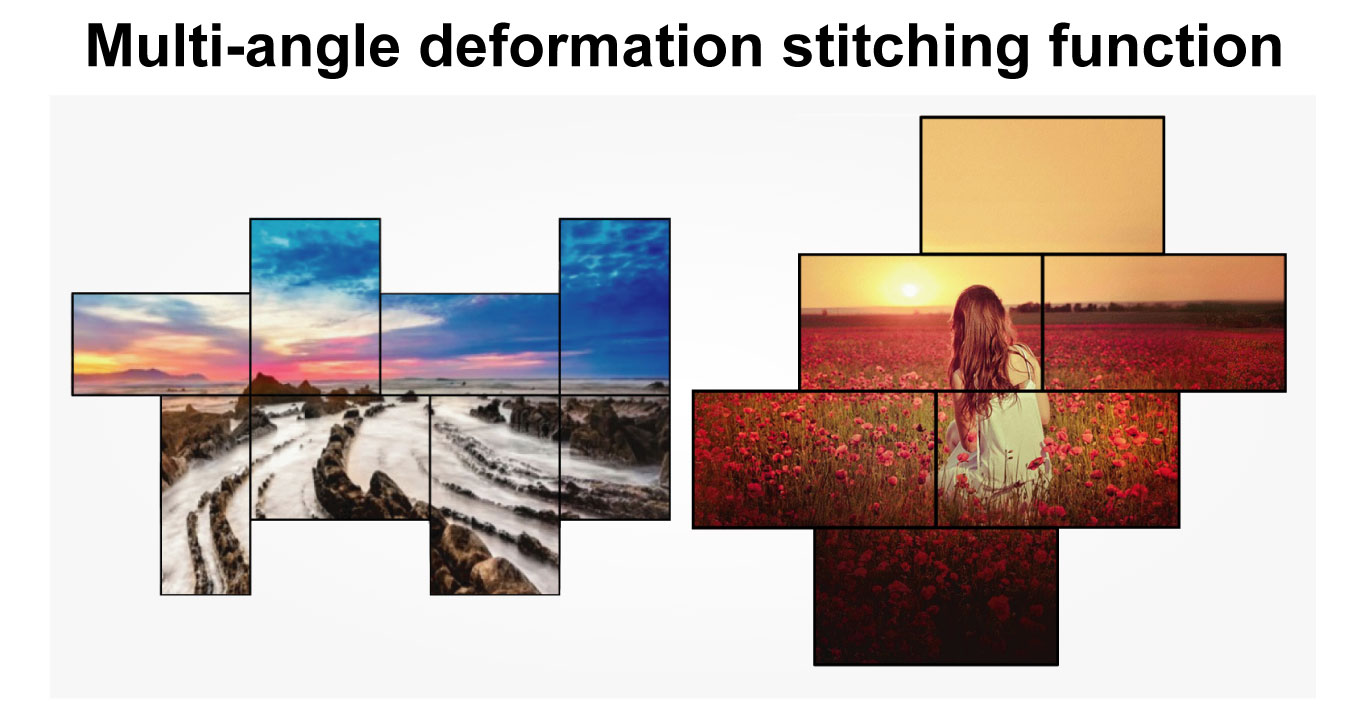

The latest deformation technology, can be arranged in different sizes of screens and screens, combined with the deformation of the mosaic TV wall.
Supports mashup signal USB/VGA/Composite/HDMI switching input, and synchronous output to up to 10 HDMI displays.
Support USB 2.0 interface, can be connected to USB flash drive, embedded audio; support video, picture, MP3, TXT.

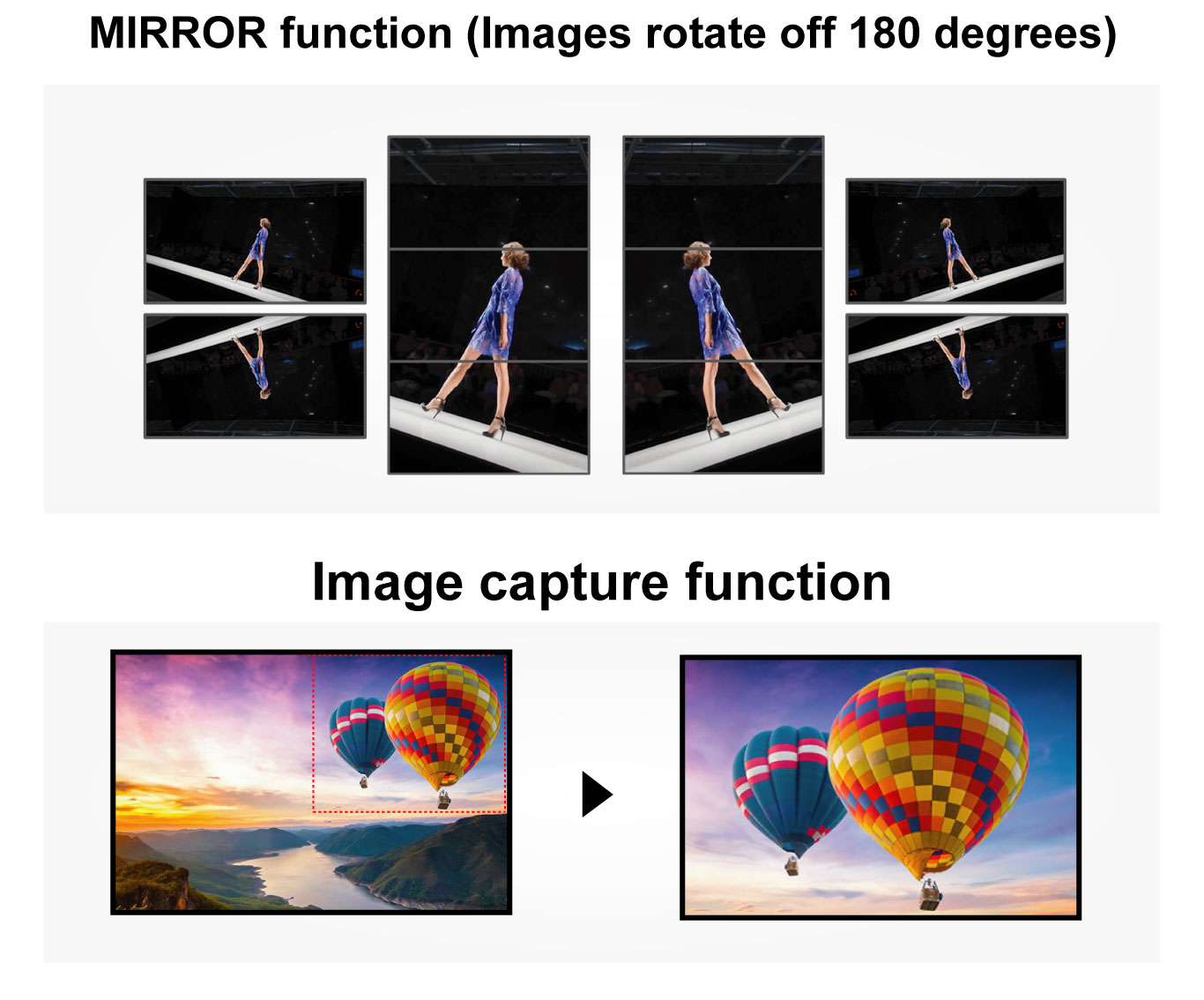

Support MIRROR function (Images rotate 180 degrees).
Support Image capture function.
Support 2-10 ports HDMI output with customized.
Support 3.5mm audio output.
The resolution is up to 1080P 60Hz.
Support button / remote control / RS-232 control.
Support 19 inches 1U rack.
1 x IR (Without battery)
1 x Power Cord
1 x User Manual
| MODLE NAME | HW5210 |
|---|---|
| Input port | 1 x HDMI, 1 x USB, 1 x VGA + 1 x 3.5mm, 1 x AV |
| Output port | 2-10 ports x HDMI ( Type A Female ), 1 x 3.5mm output with customized |
| Video Resolution | DTV/HDTV: 1080P@60HZ、720P@60HZ、1024x768@60HZ |
| Video Wall mode | 2x2、2X3、2X4、2X5、3X2、3X3、1X..... video wall |
| Splitter mode | 1 input signal synchronization distribution multiple HDMI displays |
| Control mode | Panel button / Remote control / RS-232 |
| Material | Metal |
| Power Supply | AC 90V-260V 50/60HZ |
| Dimension ( L x W x H ) | L442 X W242 X H45 mm |
Diagram
