Large-scale 4K audiovisual engineering wiring solution
Just use one network cable that can transmit UHD images to multiple remote 4K TVs simultaneously.
Each TV receiver can then be connected to the other receiver through a network cable.
If the TV equipment needs to be added in the future, just purchase the receiver.

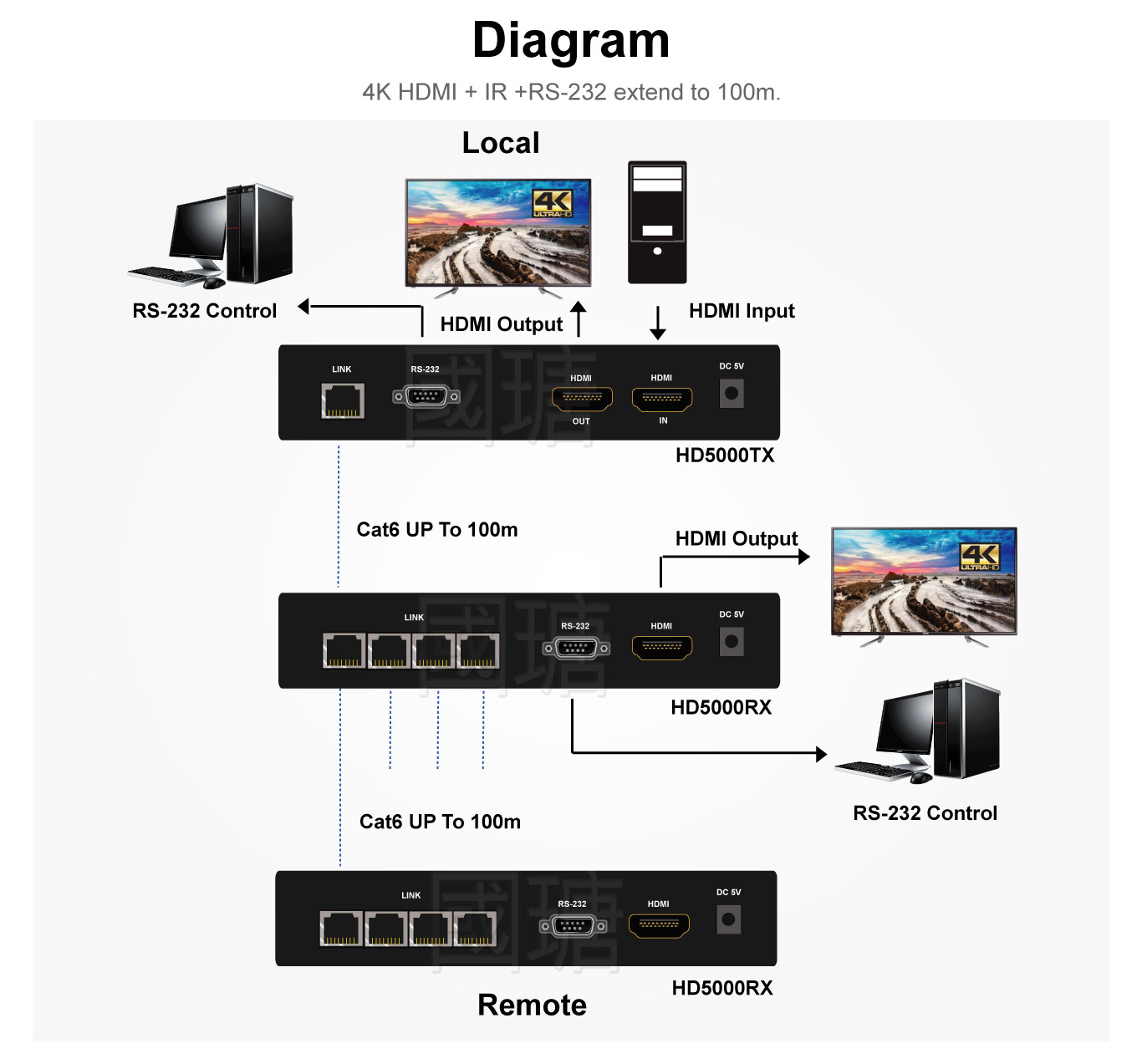

Diagram |
|---|
Description |
|---|
This solution supports the transmission of 4K signal sources to multiple remote display receivers, and easily achieve the simultaneous display of multiple 4K screens.
Transmitter: Convert high-definition signal into the general network cable, and use the network cable to connect to the TV receiver at a distance of up to 100 meters.
Receiver: the network cable to an HDMI interface and connect to the TV with a resolution of 4K.
The signal transmitter has one HDMI local display port.
The receiver of the display can be connected to the TV display and serially connected to the next display, and so on ...
It can be used with a 10/100/1000M Giga switch. The signal transmitter and display receiver all can be connected to the Giga switch.
Support 4K 30Hz.
Note: To avoid delay, please don't share it with the internet.
More detailed description HD5000
2 x 5V 2A
1 x IR TX Cable
1 x IR RX Cable
1 x User Manual
| MODLE NAME | HD5000 |
|---|---|
| Transmitter | 1 x HDMI input, 1 x HDMI output, 1 x IR output, 1 x RJ45 output, 1 x RS232 |
| Receiver | 1 x HDMI output, 1 x IR input, 4 x RJ45 (1 x input, 3 x Cascaded-chainable), 1 x RS232 |
| Cascaded-Chainable | 10 layers |
| Max Video Resolution | 4096x2160 @30Hz / 3840x2160 @30Hz |
| Extension Cable Type & Length | CAT.5e / CAT.6 / Giga switch Max.Length: 100m |
| OS Compatibility | OS Independent |
| Operating Temp | 32~ 122°F (0~ 50°C ) |
| Humidity | 0% ~ 80% RH |
| Power Supply | AC 110V-240V 50/60HZ DC:5V 2A |
| Dimension ( L x W x H ) | T: 180 x 82 x 27 mm / R: 180 x 82 x 27 mm (Pairs) |
| Mass (Main unit) | T: 470g / R: 471g (Pairs) |
