Multifunction Converter & Scaler
Support Multi-interface, Mirror, Scaler, Audio embedded and de-embedded

CM55


About CM55

[CM55] Supports the converts between analog to digital or digital to analogs, which is a universal media converter.With DVI-I interfaces, users only need to simply plug in the needed adapters to realize the converts between CVBS / DVI / VGA / Ypbpr / HDMI.

It provides all kinds of advanced mirror, scaler functions and also has been popularly used in the conferencing rooms, advertising and security and protection systems.


Supports the converts between analog and digital (HDMI/DVI/VGA/YPBPR/CVBS+LR).

Supports audio embedded and de-embedded, hot-plug.

26 Resolutions: 640*480; 800*600; 1024*768; 1280*1024; 1366*768; 1440*900; 1600*1200; 1680*1050; 1920*1200; 1080P @50/60; 1080I @50/60; 720P @50/60; 576P @50; 80P @60; 576I @50; 480I @60.

Supports advanced MIRROR function (Images rotate off 180 degrees).

Images zoom from -10% to +10%.

Supports scaler up, scaler down function.

Supports automatically detect inputs and outputs sources.

Supports color, brightness, contrast ratio and sharpness adjustment of the output images.

1 x DC12V 1.5A

1 x HDMI to DVI Adapter

1 x VGA to DVI Adapter

1 x YPBPR to DVI Adapter

1 x User Manual





Datasheet





MODEL NAME CM55
Input Resolution HDMI input (DVI-I interface) / DVI input (DVI-I interface): 800*600,1024*768,1280*720,1280*800,1280*1024,1360*768,1366*768,1440*900,1400*1050,1600*1200,1680*1050,1920*1080,1920*1200

VGA input (DVI-I interface): 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1360*768, 1366*768, 1440*900, 1400*1050, 1600*1200, 1680*1050, 1920*1080, 1920*1200, 0.7Vp-pm, 75Ω

YPBPR input (DI-I interface): 480p, 576p, 720p, 1080i, 1080p, 0.7Vp-p, 75Ω

CVBS input (DVI-I interface): NTSC, PAL, 1Vp-p, 75Ω
Output Resolution HDMI output (DVI-I interface) / DVI output (DVI-I interface): 800*600,1024*768,1280*720,1280*800,1280*1024,1360*768,1366*768,1440*900,1400*1050,1600*1200,1680*1050,1920*1080,1920*1200

VGA output (DVI-I interface): 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1360*768, 1366*768, 1440*900, 1400*1050, 1600*1200, 1680*1050, 1920*1080, 1920*1200, 0.7Vp-pm, 75Ω

YPBPR output (DI-I interface): 480p, 576p, 720p, 1080i, 1080p, 0.7Vp-p, 75Ω

CVBS output (DVI-I interface): NTSC, PAL, 1Vp-p, 75Ω
Dimension 152mm(W) X 96mm (D) X 27mm(H)
Net Weight 200g
Power Supply DC 12V 1.5A
Housing Metal enclosure
Operation temperature 0℃to +50℃
Operating Humidity Range 10% to 95 % RH (no condensation)

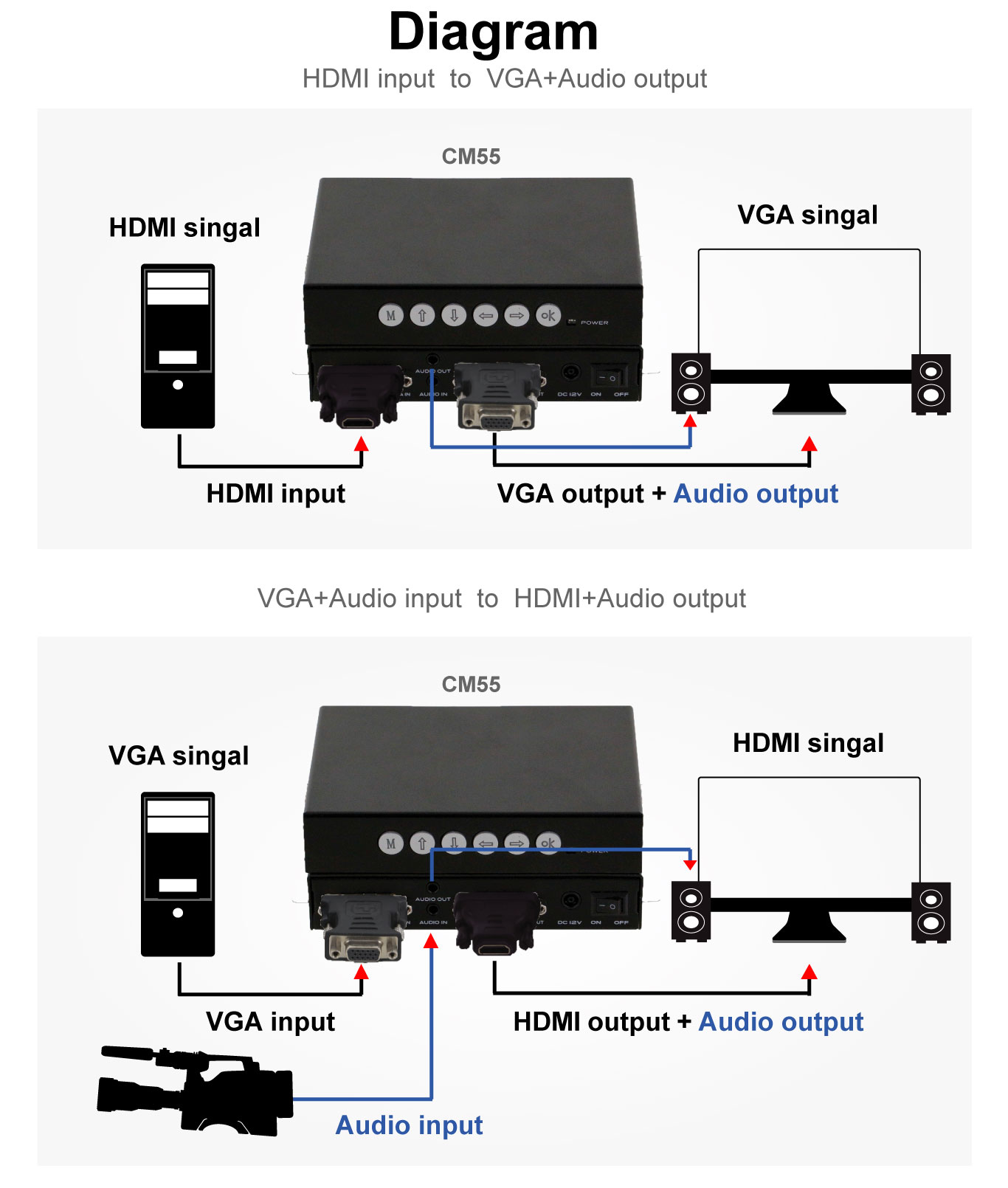

Diagram
