12-Port Quad Multi-Viewer with Seamless KVM Switch
Supports 4x Composite Video, 4x VGA, 4x HDMI Input with Dual HDMI & VGA Output
CK12
About CK12
This device supports quad-view display functionality, enabling input from four signal sources. Each input set includes HDMI, VGA, and BNC interfaces, with the ability to select one signal for output display. It allows you to switch to a single selected signal and output it simultaneously to both HDMI and VGA displays, along with an additional 2-port USB output. The device features synchronized switching of video signals and USB devices (such as a mouse and keyboard), supporting control of up to four computers using a single keyboard and mouse.

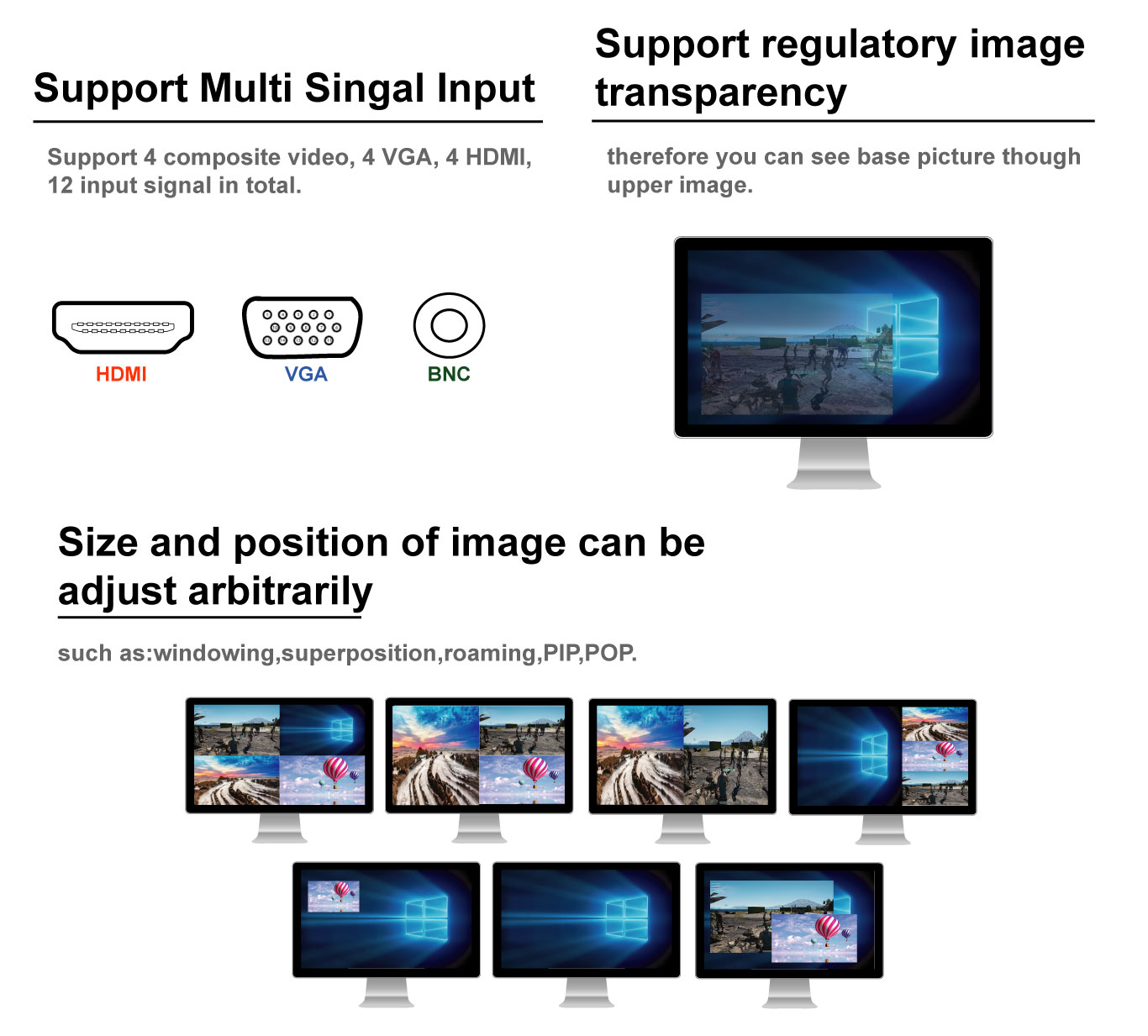

12 Input Signals: 4x Composite Video, 4x VGA, and 4x HDMI.
Flexible Output: Enables simultaneous output to both 1x VGA and 1x HDMI displays for synchronized viewing.
Supports synchronous display of 4 input signals on a single display unit, presented in a quad-split screen layout.
Control 4 Computers: Use a single console (keyboard/mouse) to manage up to 4 computers via USB connections.
Allows seamless selection and synchronous switching of USB devices, mouse, keyboard, and video signals across 4 computers, enabling efficient multi-system control.
Delivers crystal-clear output at up to 1920x1080.
Software-Based Image Adjustment: Configure image size, position, and transparency to achieve the optimal viewing experience.
Multi-Window Display Management: Configure multiple device windows on a single display via software, supporting screen overlay, free roaming, PIP (Picture-in-Picture), and POP (Picture-outside-Picture) for a flexible and efficient visual experience.
Transparency Control: Adjust image transparency via software to reveal underlying content, enhancing multitasking efficiency.
Supports ultra-wide input alternating voltage (90V–264V), making it suitable for use in any country.
Multiple Control Methods: Operate via case keys, IR remote, RS-232 serial port, or centralized control systems.
Rack-Mountable Design: Compatible with standard 19" racks for easy integration into professional setups.
1 x CK12
1 x IR
1 x Power Cord
1 x User Manual
| MODEL NAME | CK12 |
|---|---|
| Input port | 4 x HDMI, 4 x VGA, 4 x BNC, 4 x USB, 1 x RS-232, |
| Output port | 1 x HDMI, 1 x VGA, 2 x USB (Keyboard Mouse) |
| Identify pattern | Automatic |
| Video Resolution | 1080p @60HZ |
| Zoom and display | Unlimited |
| Image adjust | Supports movement, scaling, brightness, contrast, and color temperature customization for precise display optimization. |
| Control mode | RS-232, IR, Panel Buttons, Control Software |
| Dimension | 442x242x45mm |
| Power Supply | AC 90~260V |

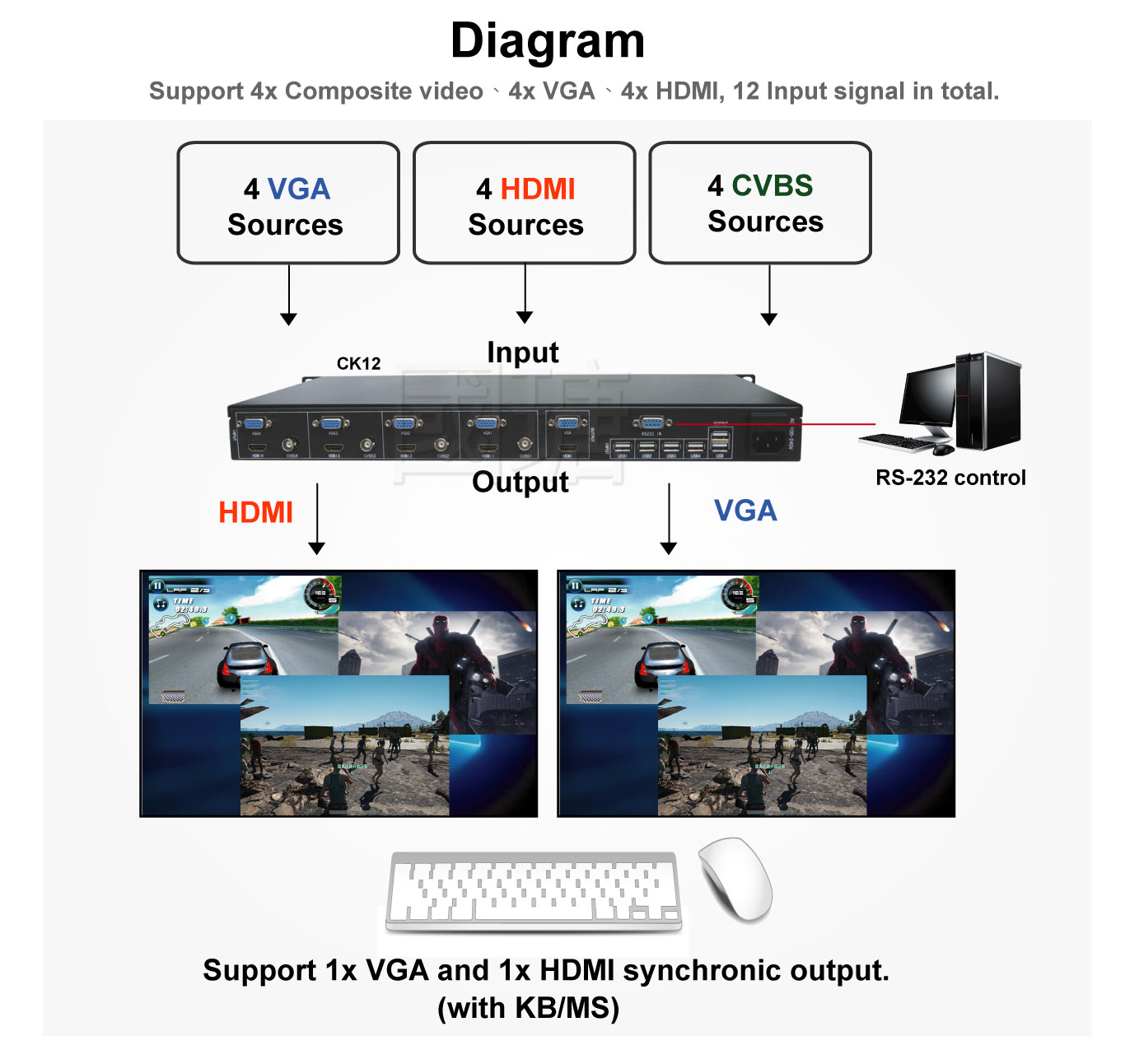

Diagram
