8X8 4K HDMI Matrix Switch
Support 4K30Hz, RS232, TCP/IP Control, ESD
CH8830K
About CH8830K
PANIO [CH8830K] allows 8 different sets of HDMI digital signals to be displayed interactively on 8 HDMI video and audio display devices.
Which can be switched using panel buttons/ remote control/ RS-232 control port/ TCP/IP port.
Built-in EDID (Extended Display Capability Identification), support 4K 30Hz.
This product is easy to operate and provides a variety of multimedia application environments with excellent flexibility and control capabilities.
8-in 8-out HDMI matrix switcher, which can be easily switched by manual and remote control.
Supports HDMI1.4b, HDCP 1.3, and resolutions up to 3840 X 2160 @30Hz.
Supports PCM, Dolby AC3, DTS5.1, DTS7.1, and DSD audio formats.
Support EDID automatic adjustment function, adapt to the diverse display devices on the scene better, improve compatibility.
The power-off memory function, automatically returns to the previously set state.
Provide 4 kinds of scene memories, you can call up various scene situations simply by using the remote control.
The LED displays the current status in real-time.
Control method: remote switch, RS-232, panel control and TCP / IP control.
Provide 8KV ESD protection.
Supports 19" rack size.
1 x 12V Power Supply
1 x Remote Controller (Battery not provided)
2 x Rack ears
1 x User Manual
| MODLE NAME | CH8830K |
|---|---|
| Input | 8 x HDMI |
| Output | 8 x HDMI |
| Video Resolution | 3840x2160 @30Hz, 1080P @60Hz, 3D |
| Control mode | Remote Controller, Button, RS-232, TCP/IP |
| HDMI signal | HDMI1.4b、HDCP1.3、EDID |
| ESD protection | 8KV ESD |
| Power Supply | AC 110V-240V 50/60HZ DC 12V |
| Dimension ( L x W x H ) | 440 X 150 X 45mm |
| Mass (Main unit) | 2 Kg |

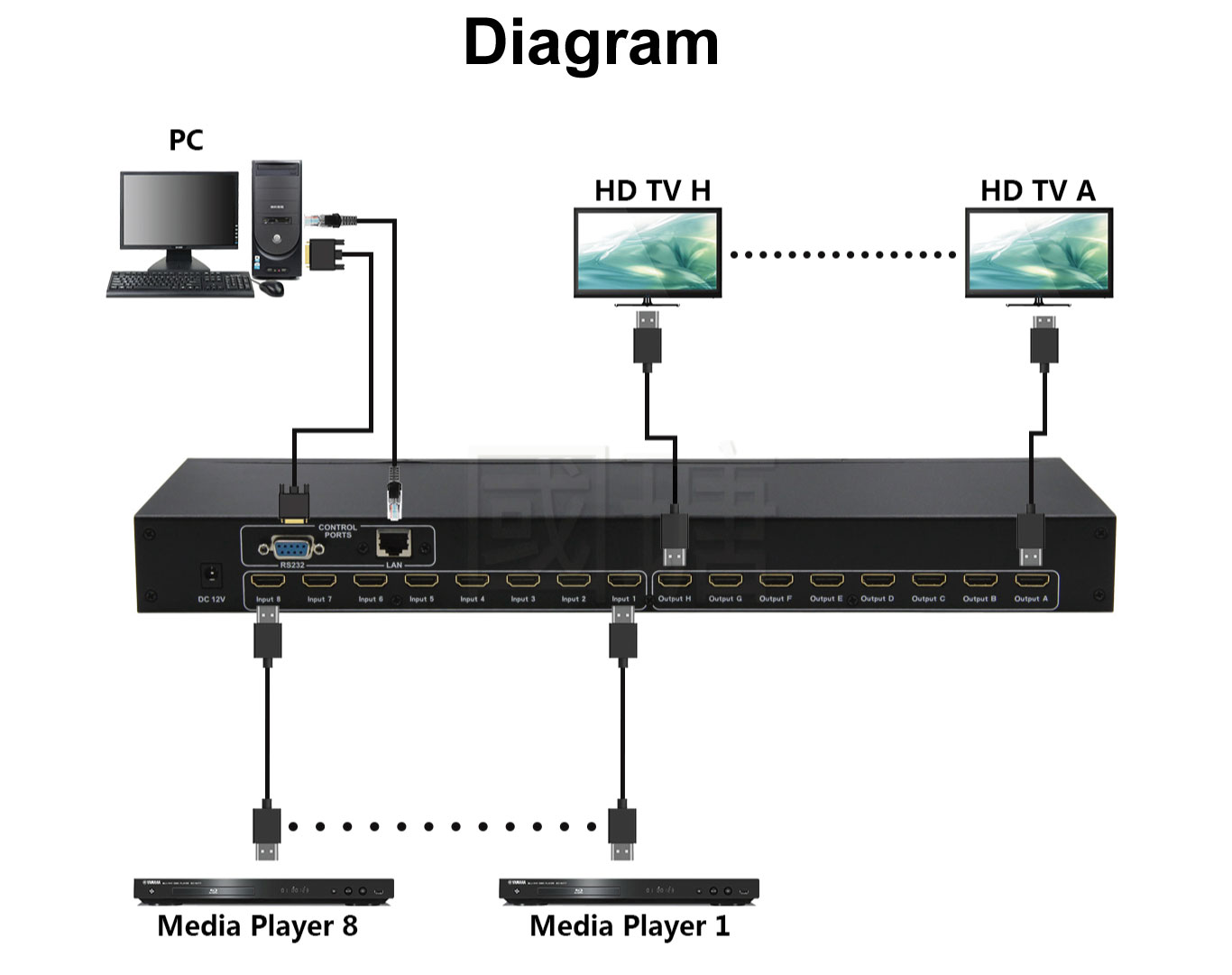

Diagram
