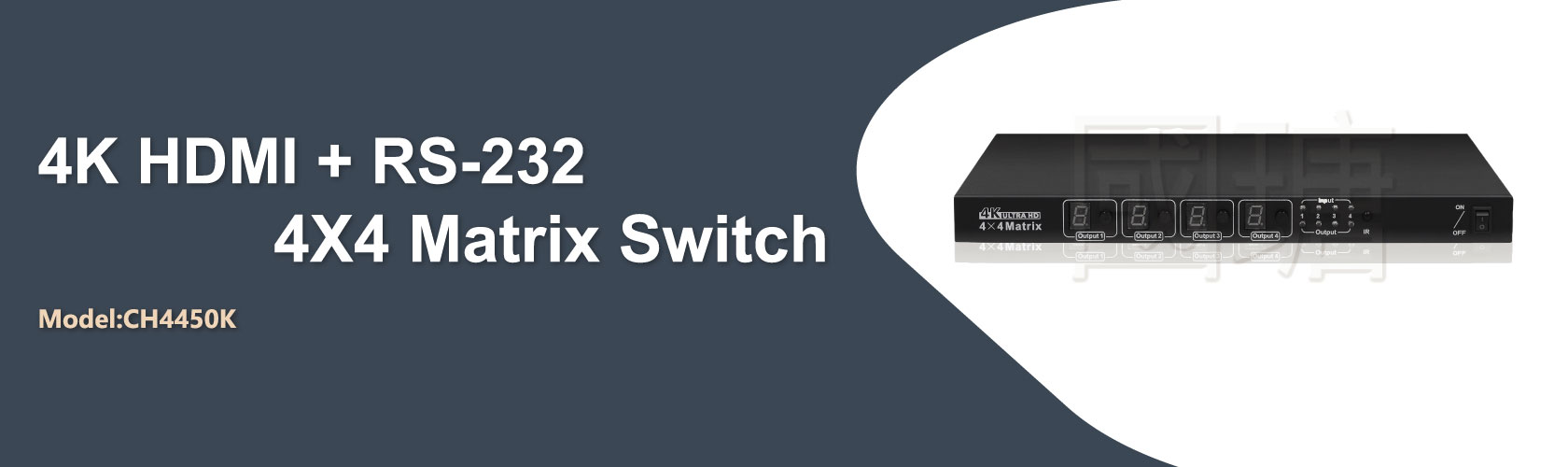

4X4 4K HDMI Matrix Switch
Support 4K30Hz, RS232 Control, ESD
CH4450K
About CH4450K
PANIO [CH4450K] allows 4 sets of 4K HDMI digital signals to be displayed interactively on 4 4K HDMI video and audio display devices.
Which can be controlled using panel buttons/ remote control/ RS-232 control port.
Built-in EDID (Extended Display Capability Identification), support 4K 30Hz.
This product is easy to use and provides excellent flexibility and control in various multimedia application environments.
4 in 4 out digital audio and video HDMI matrix switcher, which can be easily switched by manual and remote control.
Supports 3840 x 2160P @30Hz.
Supports PCM, Dolby AC3, DTS5.1, DTS7.1, and DSD audio formats.
Support EDID automatic adjustment function, adapt to the diverse display devices on the scene better, improve compatibility.
Power-off memory function, automatically returns to the previously set state.
The LED displays the current status in real-time.
Provides 8KV ESD protection.
Control method: remote switch, RS-232, panel control.
1 x 12V Power Supply
1 x Remote Controller (Battery not provided)
1 x User Manual
| MODLE NAME | CH4450K |
|---|---|
| Input | 4 x HDMI |
| Output | 4 x HDMI |
| Video Resolution | 3840x2160@30Hz, 1080P@60Hz, 3D |
| Control mode | Remote Controller, Button, RS-232 |
| HDMI signal | HDMI1.4b、HDCP1.3、EDID |
| ESD protection | 8KV ESD |
| Power Supply | AC 110V-240V 50/60HZ DC 12V |
| Dimension ( L x W x H ) | 278 × 136 × 25mm |
| Mass (Main unit) | 1.1 Kg |
Diagram
