KH3000 4K HDMI/USB/RS232/IR/Audio Matrix Extender over IP&Fiber

KH3000 is the UHD KVM over IP extends HDMI, USB, 2-way analog audio, RS-232, and bi-
directional IR over a Gigabit Local Area Network or Fiber Optic.
The Sender and Receiver units can be automatically or manually configured to unique IP
addresses to allow the connection of multiple Senders and Receivers to the same network.
Multiple Receiver units can simultaneously connect to any Sender unit within the network to
create a virtual cross-point matrix of up to 16 Senders and multiple Receivers .



v
Extends 4K HDMI, USB, RS-232, bi-directional stereo analog audio, and bi-directional IR over IP / SFP
Matrix switching extension over IP.
Supports resolutions up to 4096X2160 UHD.
Supports video wall over IP.
USB 2.0 and backward-compatibility with USB 1.1
Support both of interlaced and progressive display modes.

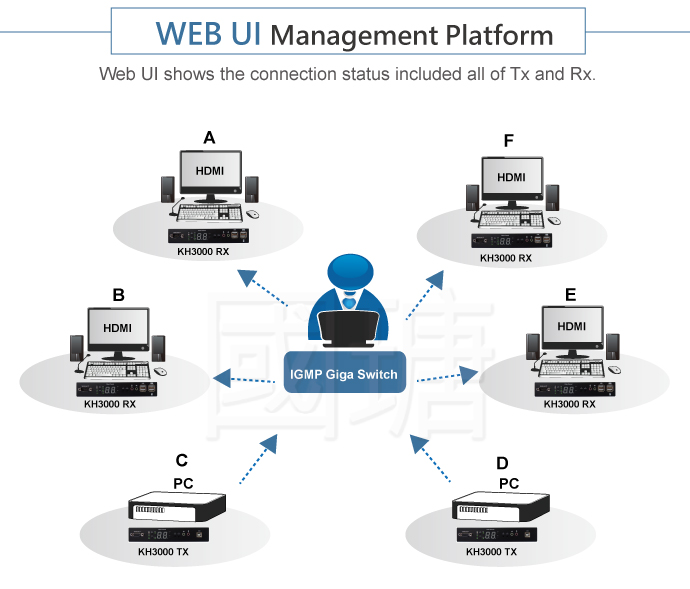

Web UI shows the connection status included all of Tx and Rx.
Supports multi-consoles to max 255 PCs ( multi-console KVM Extender ) .
Support IR remote control for video channel setting.
Field-upgradable firmware via web server interface
The transmitter unit supports HDMI in and monitoring HDMI out synchronized.
Remotely away operational KVM USB switching to selective PC/sources.

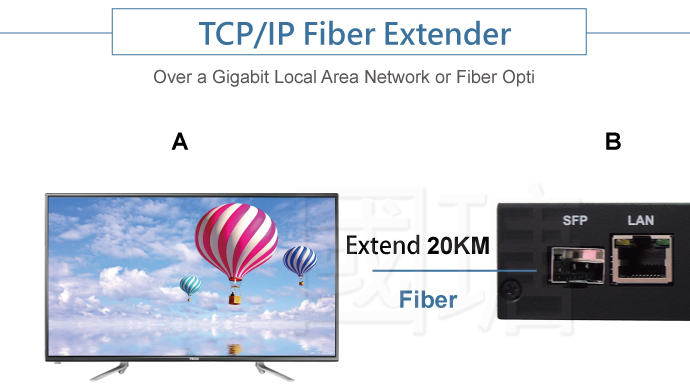

Extend by CatX or Fiber
PoE supported ( Optional ).
Made in Taiwan.

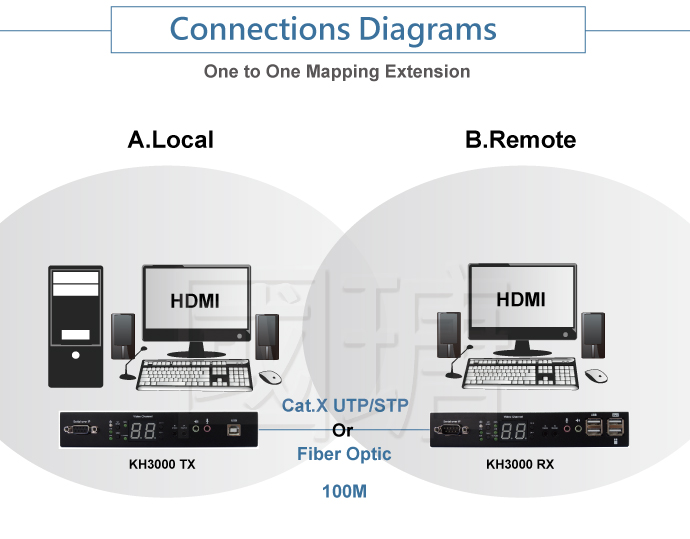

UHD+Audio+IR+RS-232+USB2.0 over IP / Cat.5e/6 / Fiber Optic with Video wall

Supported HDMI resolution up to 4096 x 2160.
Support USB devices connect.

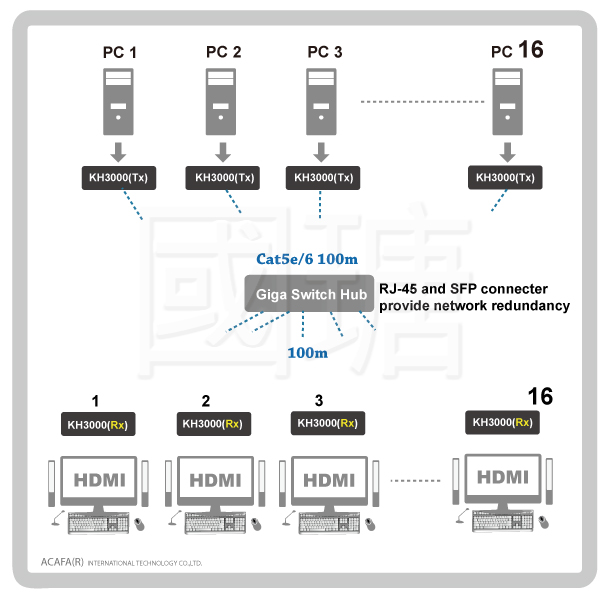

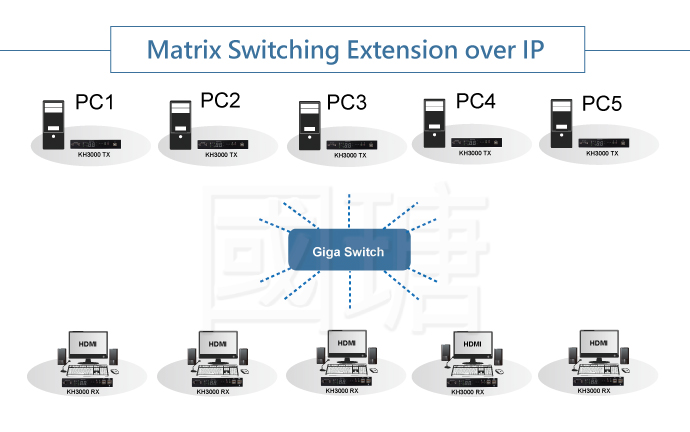

16X16 Diagram:

Video wall supports up to 8x8.
Support Web-UI IR push buttons Remote control.
Up to 16 Groups Multi-Casting.


KH3000 UHD KVM Extender - Transmitter
KH3000 UHD KVM Extender - Receiver
2 x 5V DC power supply
1 x IR emitter cable or 1 x IR receiver cable

1 X USB 2.0 cable.

1 X Audio/Mic cable

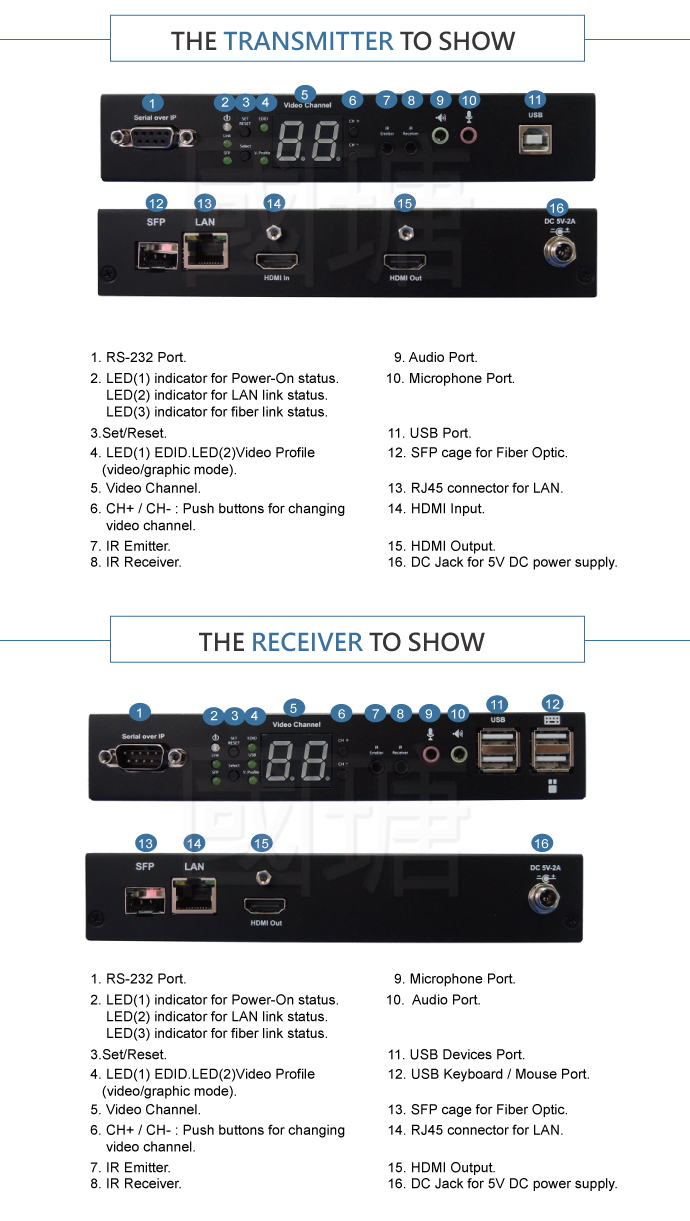

MODLE NAME KH3000 (Transmitter) KH3000 (Receiver)
Video
Input
HDMI female
-
Output
HDMI female ( Loopback )
 HDMI Type A 19-pin, female
Audio
Line-In
 3.5mm mini-stereo jack
-
Line-Out
 3.5mm mini-stereo jack
 3.5mm mini-stereo jack
MIC-In
-
 3.5mm mini-stereo jack
USB
USB Host
 USB Type B, female
-
USB Device
-
 USB Type A, female x 4
RS-232 Connector
 DB-9, female
 DB-9, male
IR
IR Emitter
 3.5mm mini-mono jack
 3.5mm mini-mono jack
IR Extender
 3.5mm mini-stereo jack
 3.5mm mini-stereo jack
Ethernet
 RJ-45, gigabit / SFP Fiber module
 RJ-45, gigabit / SFP Fiber module
Mode button
push button
push button
LED
Link Indicator
 LED, green
 LED, green
Power Indicator
 LED, blue
 LED, blue
Power
Supply
5V 3A DC
5V 3A DC
Dimension
L X W X H
180 X 92 X 27 mm
