UE3200


USB 3.2 Gen1 Extender Pro

Remotely Support 4-Port USB 3.2 GEN1 Output


Products / USB Extender

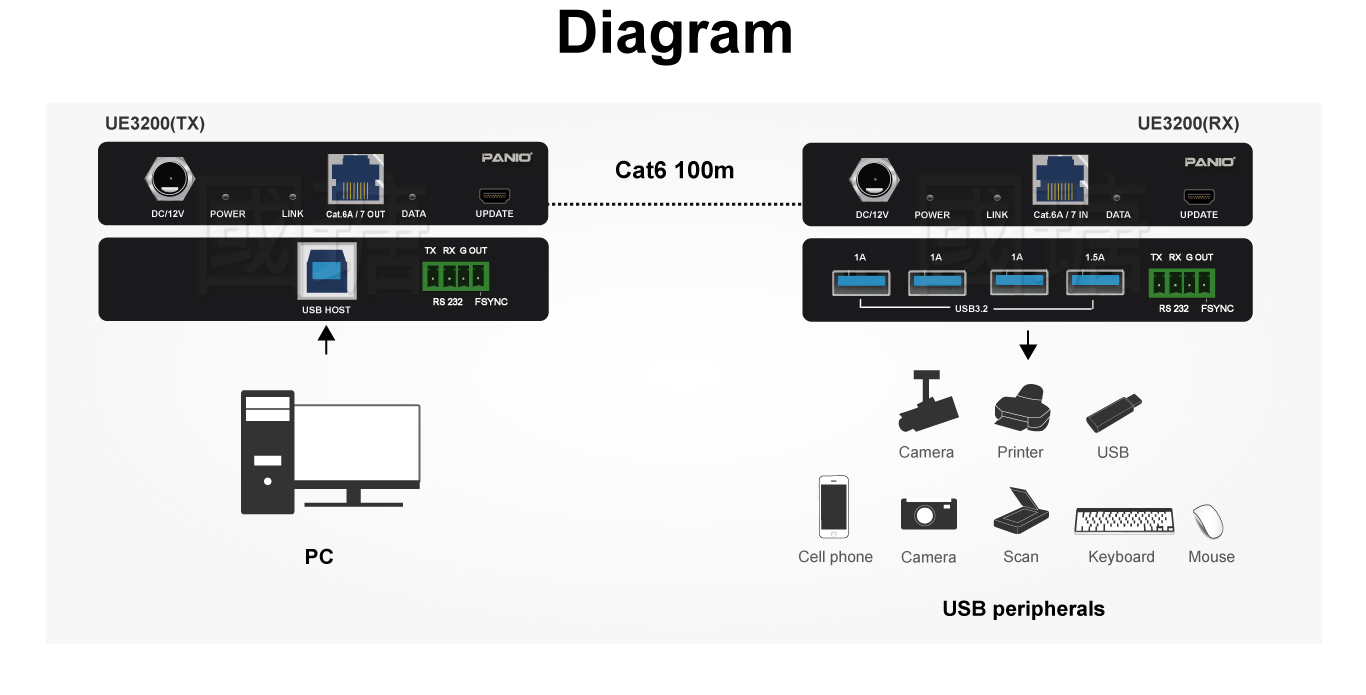

Long-Distance USB 3.2 Extension: Up to 100 Meters with CAT6a/7 FTP
Feature
  • With a CAT6a/7 FTP cable connecting the transmitter and receiver, USB 3.2 peripherals can extend their signal up to 100 meters.
  • Compatible with all SuperSpeed (5Gbps) / HighSpeed (480Mbps) / FullSpeed (12Mbps) / LowSpeed (1.5Mbps) USB peripherals.
  • This product is backward compatible with USB 2.0 and USB 1.1.
  • Extenders support Power over Cable (PoC) technology, requiring power only at the receiver end.
  • The extender receiver includes a built-in 4-port USB 3.2 Gen1 HUB, allowing you to connect multiple USB 3.2 Gen1 peripherals.
  • Supports RS-232 Full-Duplex Communication.
  • Plug-and-play hardware design with no software or driver installation required.
  • Standard RJ-45 connectors are used for extension interfaces.
  • Meets FCC and CE standards.

Specification

Model Name UE3200
Transmitter USB Type B Female Connector, RJ-45 port input
Receiver 4-Port USB Type A Female Hub, RJ-45 port output
Types of network cables Certified CAT6a/CAT7/HDBaseT Cables
Extension distance Maximum transmission distance of 100 meters.
Power DC 12V 3A Single-ended power supply for the receiver
Dimensions 105 x 100 x 21mm (LxWxH)

Note:

  • Please use the USB 3.0 cable provided by the manufacturer for connection.
  • Please use the power adapter provided by the manufacturer.

Package Contents

  • 1 X UE3200
  • 1 X 5V 3A Power adapter
  • 1 X Quick Guide
