KH8000


4K 60Hz HDBaseT Extender with USB2.0

Support USB2.0, POC


Products / 4K 60Hz Extender

4K 60Hz HDBaseT Extender with USB2.0
Feature

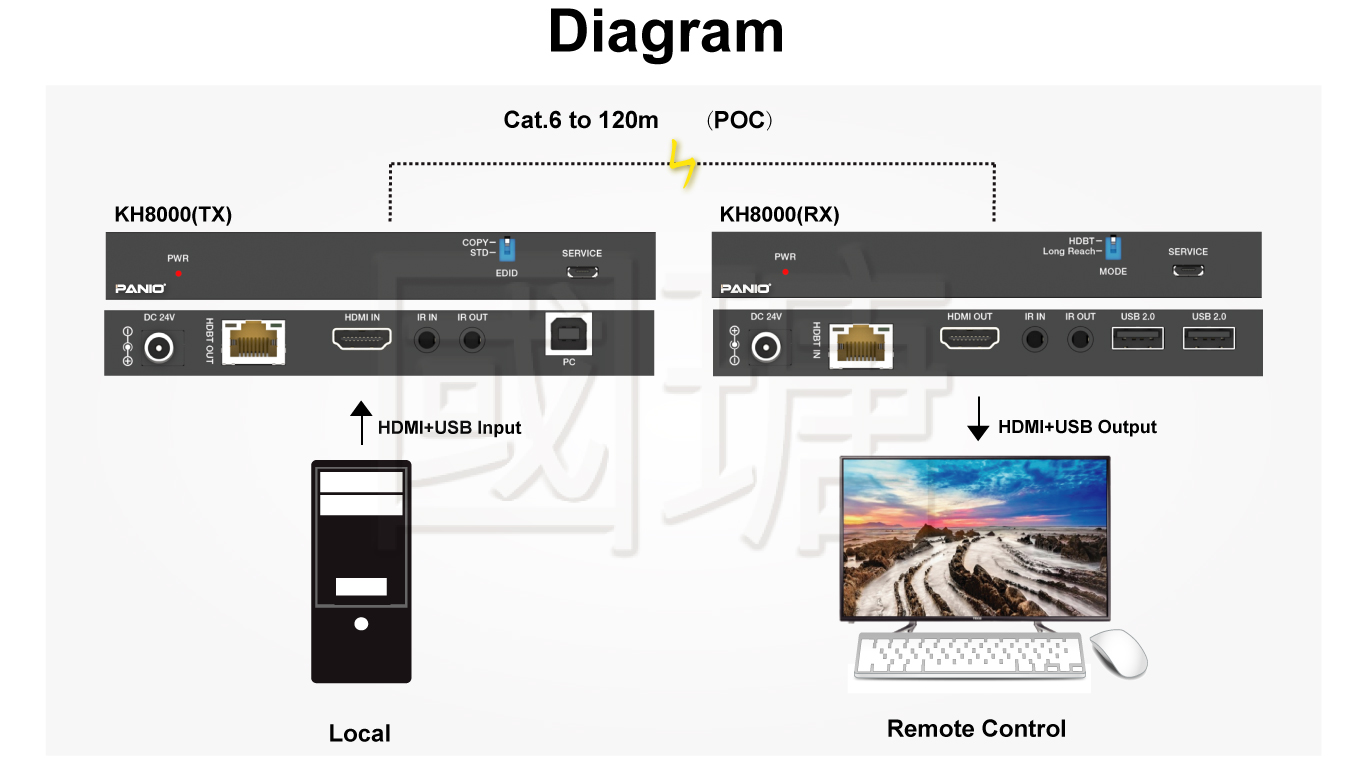

  • The 4K 60Hz HDMI/ USB2.0/ Bidirectional IR signal is transmitted to the remote display through the network cable.
  • Using HDBaseT uncompressed transmission technology, 4K video and audio signals can be transmitted remotely through the network cable.
  • Support 18Gbps video bandwidth.
  • Support HDMI2.0, HDCP 2.2 / 1.4.
  • HDMI & USB keyboard and mouse signals can be extended to 120 meters at 4K 60Hz resolution.
  • HDMI & USB keyboard and mouse signals can be extended to 150 meters at 1080p resolution.
  • USB peripheral devices (using USB cameras, USB flash drives, etc.) can be extended to 100 meters.
  • Support 4K @60Hz resolution, and YUV4:4:4, 18G, HDR10+, HLG, Dolby vision.
  • Support wide-band bi-direction infrared routing control.
  • Support EDID function.
  • Support bidirectional infrared signal and USB KVM signal transparent transmission.
  • Support POC unilateral power supply.
  • Hardware design, no need to install additional software.

Specification

Model Name KH8000
Transmitter port 1 x HDMI input, 1 x USB HOST [USB Type B], 2 x IR, 1 x HDBT (RJ45) output, 1 x SERVICE Micro-USB
Receiver port 1 x HDMI output, 2 x USB DEVICES [USB Type A], 2 x IR, 1 x HDBT (RJ45) input, 1 x SERVICE Micro-USB
Support resolution (Max) 4K 60Hz, YUV4:4:4
Transmission distance Transmit up to 150m under 1080p 60Hz, 120m under 4K 60Hz.
USB peripheral devices (using USB cameras, USB flash drives, etc.) can be extended to 100 meters.
MODE DIP switch This switch is used for mode setting (factory default is set to HDBaseT mode).
HDBT: Switch to HDMI+ USB peripheral devices mode.
Long Reach: Switch to HDMI+USB Keyboard/ mouse.
Color space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Bandwidth 18Gbps
Bit Depth 8/10/12-bit
Cable length Input and output can be connected to a maximum of 5 meters HDMI2.0 cable
Power supply DC 24V/1A (unilateral power supply)
Dimensions Transmitter 140 × 65 × 18mm / Receiver 140 × 65 × 18mm (LxWxH)
Item Weight Transmitter 245g / Receiver 249g

Note:

  • Please use a certified HDMI2.0 cable to connect the signal.
  • It is not recommended to serially switcher, distributor, converter, and so on that has not been certified by the factory.
  • To maintain quality stability, please use the original certified adapter.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • Please use Cat6 standard network cable (8-cores full).
  • To extend the signal, the network cable is connected to the HDBT/POC port, not to the Ethernet port.

Package Contents

  • 1 X KH8000 Transmitter
  • 1 X KH8000 Receiver
  • 2 X IR cables
  • 1 X DC 24V 1A (POC)
  • 2 X Rack accessories
  • 1 X User manual
