HW91


9-ports output video wall splicing processor

Support 5760x3240 30Hz, 3840x3240 30Hz


Products / Video Wall

Multiple Splicing Modes

Built-in 3x2, 3x3, 2x3, 2x4...up to 9 screens, supporting both vertical and horizontal video wall splicing functions

Dual Interface Input

Supports DP/ HDMI1.4b 2-port input interface.

Ultra 5K resolution

In 3x3 splicing mode, it supports 5760x3240 input at 30Hz.

Undistorted Display

Supports 5K resolution input, with pixel-to-pixel lossless, proportional, undistorted, and unstretched display.

180° Rotation

Supports 180° rotation functionality for individual screens.

Audio Source Separation

Outputs via a 3.5mm audio jack, compatible with external speakers.

Edge processing

Splicing displays can result in visible bezels and visual gaps. Processed images are free from distortion and stretching, providing a more natural and realistic visual experience.

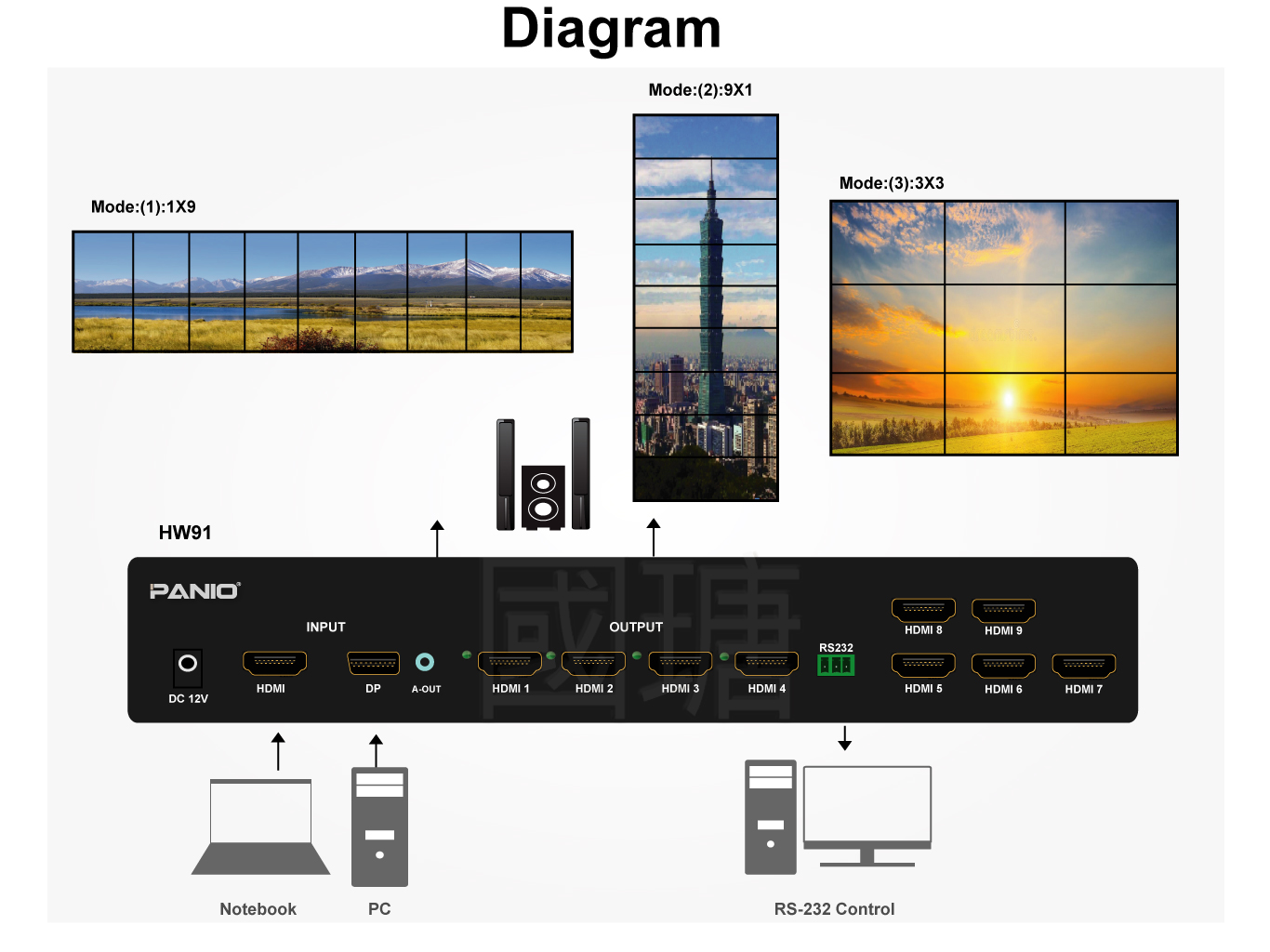

3x3, 3x2, 1x6, 6x1, 2x4, 4x2, Up to 9 screens, vertical or horizontal TV wall
Feature
  • Built-in functionality for creating video walls with 3x3, 3x2, 2x3, 2x4, 4x2 configurations, supporting up to 9 screens.
  • Dual Input Switching with 1xDisplayPort and 1xHDMI
  • The DP port supports 3x3 mode with 5760x3240 30Hz input, 2x3 mode with 5760x2160 30Hz input, 3x2 mode with 3840x3240 30Hz input.
  • Ultra-high-resolution display with customizable resolution support, maintaining aspect ratio without distortion or stretching.
  • Experience the flexibility of 180° screen rotation on a single monitor.
  • Support screen mirroring function.
  • 3.5mm audio jack output with dedicated audio channels.
  • Enjoy effortless setup and use with our hardware-driven design that requires no additional software.
  • Advanced deinterlacing technology featuring 3D comb filtering, 3D noise reduction, motion auto compensation, skin tone correction, chroma enhancement, gamma correction, and frame rate conversion.
  • Multi-resolution output compatible with LCD monitors and projectors.
  • Powered by cutting-edge image processing technologies, featuring dynamic contrast enhancement, true six-axis color control overlay, and advanced noise reduction capabilities.
  • Control method: Remote control switch, panel buttons, RS-232.
taiwan panio 4k

Specification

Model Name HW91
Input 1 x HDMI, 1 x DP
Output 9 x HDMI, 1 x 3.5mm
Input resolution DP input: 5760 x 3240 30Hz, 5760 x 1080 60Hz, 1920 x 3240 60Hz backward compatible
HDMI input: 3840 x 2160 30Hz, 1920 x 3240 30Hz backward compatible
Output resolution 1024 x 768 60Hz, 1280 x 800 60Hz, 1280 x 720 60Hz, 1920 x 1080 60Hz, 1920 x 1200 60Hz resolution switchable
Splicing mode 1x2/3/4/5/6/7/8/9, 2x1/2/3/4, 3x1/2/3, 4x1/2, 2/3/4/5/6/7/8/9x1,Screen placement vertical or horizontal.
Cable length Please make sure that the HDMI cable input and output do not exceed 10 meters, and use HDMI 2.0 4K 60Hz cables.
Control method Remote control, RS-232, Button
Power DC 12V 1A
Dimensions 302 x 152 x 40mm (LxWxH)

Note:

  • Please use 4K cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The output+input HDMI cable cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X HW91
  • 1 X DC 12V 1A Adapter
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
