HW61


6-ports output video wall splicing processor

Support 5760x2160 30Hz, 3840x3240 30Hz


Products / Video Wall

Various TV wall modes

Built-in 2x3, 3x2, 1x6, 6x1, 1x5, 5x1, Up to 6 screens, vertical or horizontal TV wall.

2 kinds of interface input

Support DP/ HDMI1.4b 2-port input interface.

Ultra 5K resolution

2x3 video wall, supports 5760x2160 30HZ resolution input.

The picture does not deform

Support 5K resolution input, image point-to-point lossless, proportional, non-deformed, non-stretched display.

180 Degree Rotation

Supports 180° Degree function for a single screen.

Audio Source Separation

Output 3.5mm audio, can be connected to external speakers.

Adjust border gap function

Spliced display will cause gaps in the borders and the picture will appear to be visually stretched; the processed picture will not be deformed or stretched and will look more natural and realistic.

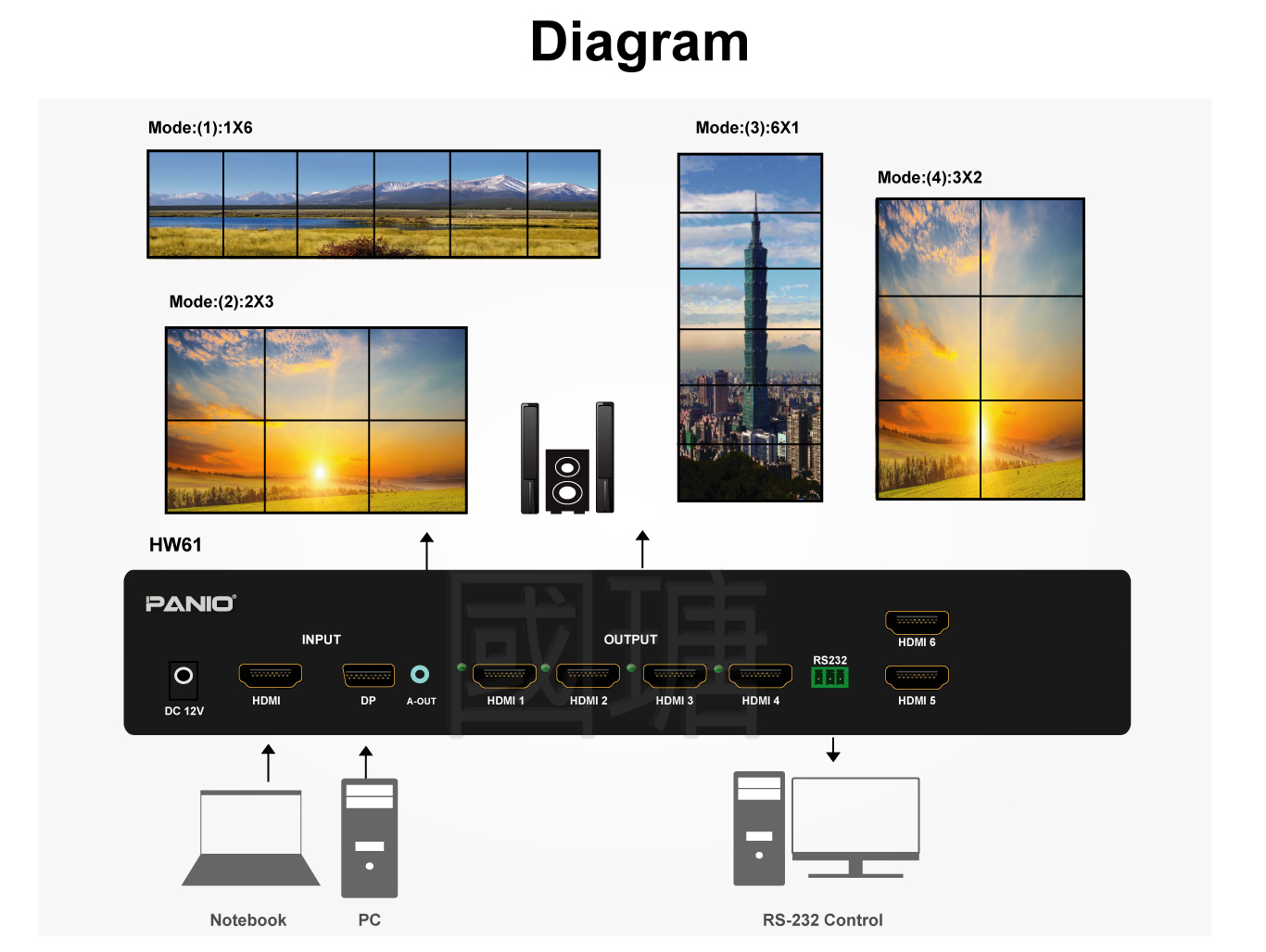

2x3, 3x2, 1x6, 6x1, 1x5, 5x1, Up to 6 screens, vertical or horizontal TV wall
Feature
  • Built-in 2x3, 3x2, 1x6, 6x1, 1x5, 5x1, Up to 6 screens, vertical or horizontal TV wall.
  • Support 1 port DP, and 1 port HDMI switch input.
  • The DP port support 2x3 mode 5760x2160 30HZ input, 3x2 mode 3840x3240 30HZ input.
  • Supports custom resolution function, ultra-high resolution display, and the screen ratio will not be deformed or stretched.
  • Support single screen 180° rotation function.
  • Support screen mirroring function.
  • Support 3.5mm port audio separation output.
  • Pure hardware design, plug, and play, no need to install additional software.
  • It has advanced functions such as 3D comb filter image decoding, 3D noise reduction and automatic motion compensation de-interlacing technology, skin color correction, color vividness enhancement, GAMMA correction and frame rate conversion.
  • Support multiple output resolution options, compatible with LCD screens and projectors.
  • Support leading image processing technologies and functions such as dynamic contrast enhancement, true six-axis color control overlay, and noise elimination.
  • Control method: Remote control switch, panel buttons, RS-232.
taiwan panio 4k

Specification

Model Name HW61
Input 1 x HDMI, 1 x DP
Output 6 x HDMI, 1 x 3.5mm
Input resolution DP input: 5760 x 3240 30Hz, 5760 x 1080 60Hz, 1920 x 3240 60Hz backward compatible
HDMI input: 3840 x 2160 30Hz, 1920 x 3240 30Hz backward compatible
Output resolution 1024 x 768 60Hz, 1280 x 800 60Hz, 1280 x 720 60Hz, 1920 x 1080 60Hz, 1920 x 1200 60Hz resolution switchable
Splicing mode 1x2/3/4/5/6, 2x1/2/3, 3x1/2, 4x1, 5x1, 6x1, Screen placement vertical or horizontal.
Cable length Input and output can be connected to a maximum of 5 meters 4K HDMI cable
Control method Remote control, RS-232, Button
Power DC 12V 1A
Dimensions 302 x 152 x 40mm (LxWxH)

Note:

  • Please use 4K cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The output+input HDMI cable cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X HW61
  • 1 X DC 12V 1A Adapter
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
