HW31


3-Port Output Video Wall Processor

Support 5760x3240 30Hz, 5760x1080 60Hz


Products / Video Wall

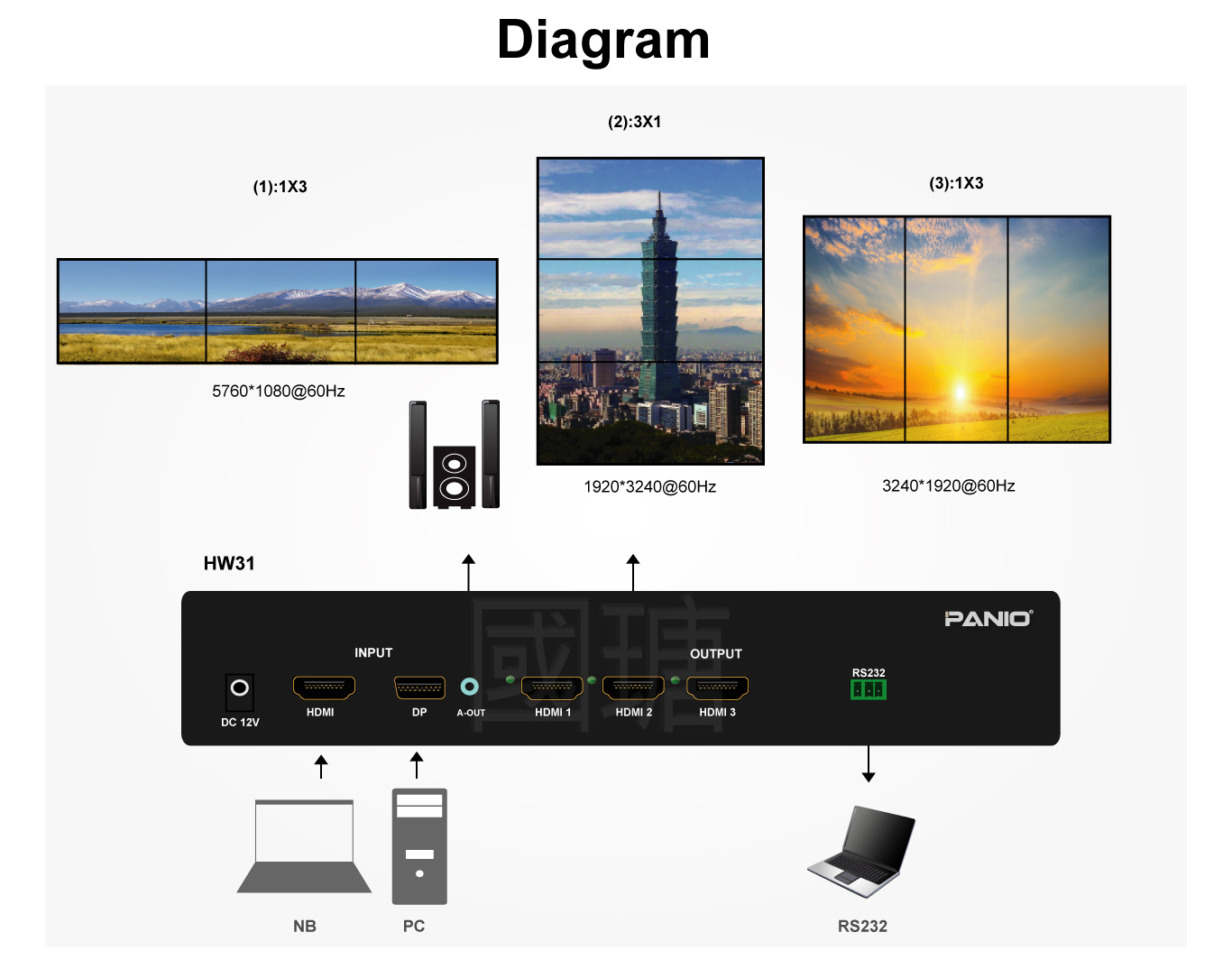

Multiple Splicing Modes

Supports built-in 2x1, 1x2, 1x3, and 3x1 video wall splicing in both vertical and horizontal orientations.

Dual Interface Input

Supports DP and HDMI 1.4b (2-port input).

Ultra 4K Resolution Support

Supports 1x3 horizontal splicing with 5760x1080 @60Hz input and 3x1 vertical splicing with 1920x3240 @60Hz input.

Lossless Display

Supports 4K and higher resolution input with pixel-perfect, distortion-free, non-stretched, and proportional image display.

180° Rotation Feature

The processor supports a 180-degree rotation function for individual screens, catering to diverse display requirements.

Independent Audio Output Port

Equipped with a 3.5mm audio output jack, allowing easy connection to external speakers for clear sound performance.

Bezel Compensation

Eliminates the visual gap caused by screen bezels in video wall setups. The processed image remains distortion-free and unstretched, ensuring a more natural and seamless viewing experience.

4K Quick Matrix switch with video wall
Feature
  • Built-in multiple video wall modes, supporting 1x2, 2x1, 1x3, and 3x1 configurations.
  • Supports switching between 1 DisplayPort and 1 HDMI input
  • Supports DP interface with 5K resolution input, including 5760x3240 @30Hz and 5760x1080 @60Hz.
  • Supports custom resolution settings, ensuring correct screen aspect ratio and ultra-high-definition display without distortion or stretching.
  • Supports 180° screen rotation for flexible adaptation to various display requirements.
  • Mirror Display Function: Supports configurable screen mirroring for enhanced viewing flexibility.
  • Supports 3.5mm audio interface with independent audio extraction output.
  • Plug-and-play functionality with no additional software installation required.
  • Supports multiple output resolutions, compatible with LCD screens and projectors.
  • Supports dynamic contrast enhancement, true six-axis color control, noise reduction, and other cutting-edge image processing features.
  • Control Methods: Remote switch, panel buttons, and RS-232 interface.
taiwan panio 4k

Specification

Model Name HW31
Input 1 x HDMI, 1 x DP
Output 3 x HDMI, 1 x 3.5mm
Input resolution DP input: 5760 x 3240 30Hz, 5760 x 1080 60Hz, 1920 x 3240 60Hz backward compatible
HDMI input: 3840 x 2160 30Hz, 1920 x 3240 30Hz backward compatible
Output resolution 1024 x 768 60Hz, 1280 x 800 60Hz, 1280 x 720 60Hz, 1920 x 1080 60Hz, 1920 x 1200 60Hz resolution switchable
Video Wall Display Modes Supports 2x1, 1x2, 1x3, and 3x1 configurations in both vertical and horizontal orientations.
Cable length Supports HDMI 2.0 cables up to 5 meters for 4K@60Hz input and output.
Control method Remote control, RS-232, Button
Power DC 12V 1A
Dimensions 302 x 152 x 40mm (LxWxH)

Note:

  • Please use 4K-compatible cables for signal connection to ensure optimal video quality transmission.
  • To ensure stable operation, do not use unauthorized switchers, splitters, or converters.
  • To maintain device performance and safety, please use the manufacturer-certified power cables.
  • For safety reasons during transportation, the remote control does not include batteries. Please prepare them separately.
  • If you plan to use this device with other equipment, please inform us in advance to ensure compatibility.
  • The total length of input and output cables should not exceed 10 meters. For longer distances, we recommend using fiber optic HDMI cables to maintain signal integrity.

Package Contents

  • 1 X HW31
  • 1 X DC 12V 1A Adapter
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
