4K rotation processing unit|TAIWAN PANIO

4K rotation processing unit

Supports projection of mobile phones, computers, and players onto vertical screens with 90°, 180°, and 270° rotation

HR01

Feature

Supports image rotation display in 90°, 180°, and 270° increments.
Supports screenshot function, displaying the entire captured image on a vertical screen.

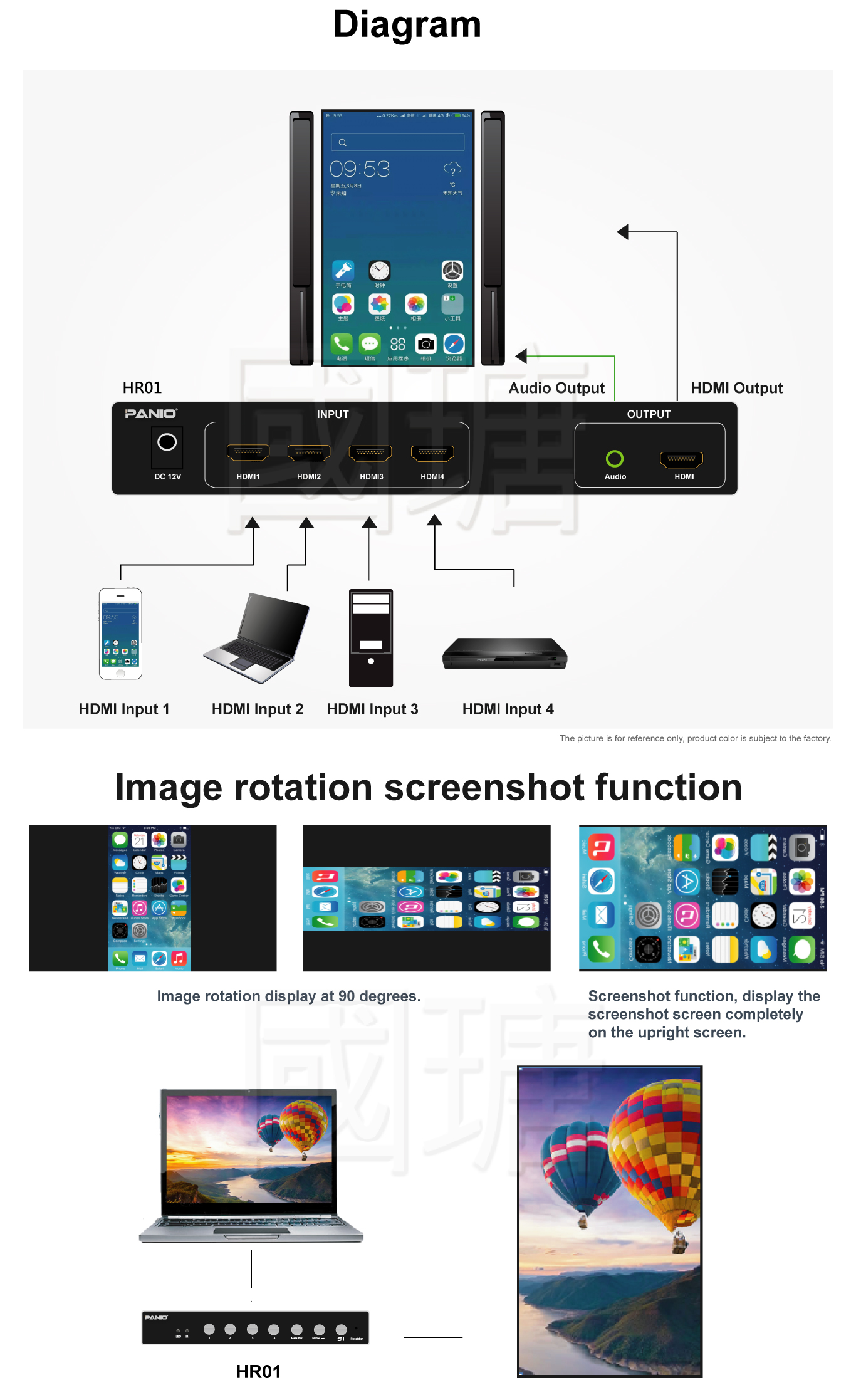

Input: 4 × HDMI, Output: 1 × HDMI, 1 × 3.5mm audio jack.
The resolution is up to 3840 x 2160 30HZ output.
Supports vertical (up/down) and horizontal (left/right) mirroring functions.
Supports vertical projection of content from mobile devices and media players, ideal for digital signage and advertising displays.

Model Name	HR01
Input port	4 x HDMI
Output port	1 x HDMI, 1 x 3.5mm
Video resolution (Max)	3840 X 2160 30Hz / 4K 30Hz
Control mode	remote control, button
Auto scan	Adjustable seconds
Cable length	The input and output can each be connected with a maximum length of 5 meters HDMI2.0 4K 60Hz cable.
Power supply	AC 110V-240V 50/60HZ DC: 12V 2A
Dimensions	188 x 118 x 22mm (LxWxH)
Item Weight	500g

Remote Control Battery: For shipping safety reasons, the remote control battery is not included.
Please use an HDMI 2.0 cable supporting 4K @60Hz for optimal signal transmission.
Avoid using uncertified serial switchers, distributors, converters, or similar devices, as they may affect performance.
To ensure quality and stability, always use the original certified power adapter.
Multi-level cascading of signal sources may lead to image instability. For extended signal transmission, it is recommended to use an HDMI signal booster.
