4K 60Hz HDBaseT Extender with USB2.0|TAIWAN PANIO

HD6000K

4K 60Hz HDMI 2.0 Extendertender

Supports Audio Separation, PoC, RS-232, and CEC for Seamless AV Integration

Products / 4K 60Hz Extender

Feature

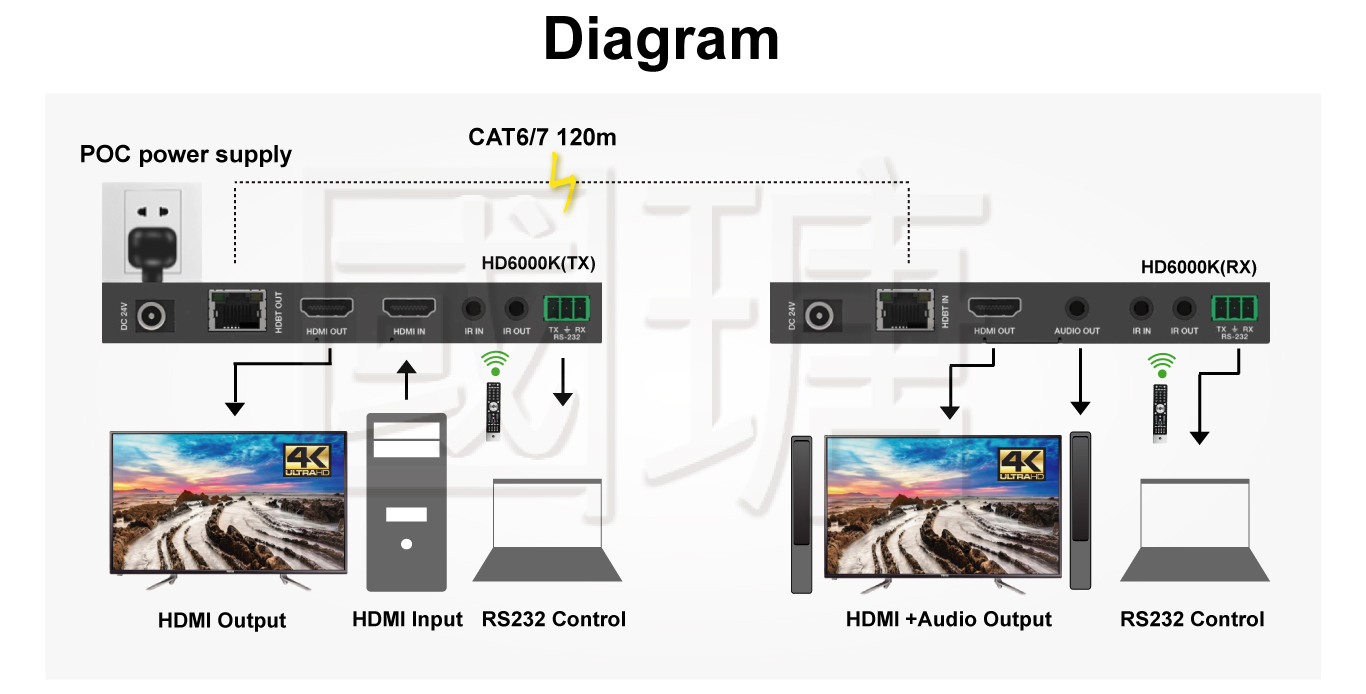

The 4K 60Hz HDMI+ Audio+ IR+RS-232 signal is transmitted to the remote display through the network cable.
Uncompressed HDBaseT Transmission– Transmits 4K 60Hz HDMI+ Audio+ IR+ RS-232 signals over a network cable to a remote display with zero latency.
1 Input, 2 Output Configuration– Features 1x HDMI near-end output and 1x HDMI remote synchronous output for flexible display setups.
Advanced HDMI Compatibility– Supports HDMI 2.0, HDCP 2.2/1.4, and CEC (Consumer Electronics Control) for seamless device integration.
Long-Distance Signal Extension– Delivers up to 150m at 1080P 60Hz and 120m at 4K 60Hz over a single network cable.
4K HDR Ultra HD Support– Supports 3840 × 2160 60Hz, YUV 4:4:4, 18G bandwidth, HDR10+, HLG, and Dolby Vision for exceptional visual clarity.
Audio De-Embedding– Extracts PCM 2.0 audio for independent sound output.
Bi-Directional IR Control– Enables wide-band infrared signal transmission for remote device control.
EDID Management– Ensures optimal display compatibility and resolution matching.
ESD Protection– Built-in electrostatic discharge (ESD) protection enhances system stability.
PoC (Power over Cable) Support– Single-sided power supply for streamlined installation.
Plug-and-Play Hardware Design– No software installation required, ensuring quick and easy setup.

Model Name	HD6000K
Transmitter port	1 x HDMI input, 1 x HDMI output, 2 x IR, 1 x RS-232, 1 x HDBT (RJ45) output
Receiver port	1 x HDMI output, 1 x 3.5mm output, 2 x IR, 1 x RS-232, 1 x HDBT (RJ45) input
Support resolution (Max)	4K@60Hz,YUV4:4:4
Transmission distance	Transmit up to 150m under 1080p 60Hz, 120m under 4K 60Hz
HDMI audio format	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R audio format	PCM 2.0
Bandwidth	18Gbps
ESD protection	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Cable length	Input and output can be connected to a maximum of 5 meters HDMI2.0 cable
Power supply	DC 24V/1A (unilateral power supply)
Dimensions	Transmitter 140 × 65 × 18mm / Receiver 140 × 65 × 18mm (LxWxH)
Item Weight	Transmitter 160g / Receiver 155g

Ensure a stable connection with a certified HDMI2.0 cable for signal transmission.
Do not use uncertified switchers, distributors, or converters in series to prevent compatibility issues.
Maintain quality with the original certified adapter for power supply.
Inform us before using with other devices to ensure compatibility.
Use a Cat6 standard (8-cores full) network cable for extension.
For CEC functionality, both Blu-ray player and TV must support CEC. Some TVs may require enabling CEC in system settings.
