GMS02


Modular Matrix TV Wall Splicer

Supports Video wall + matrix switcher.


Products / Video Wall

TV wall + single screen synchronization

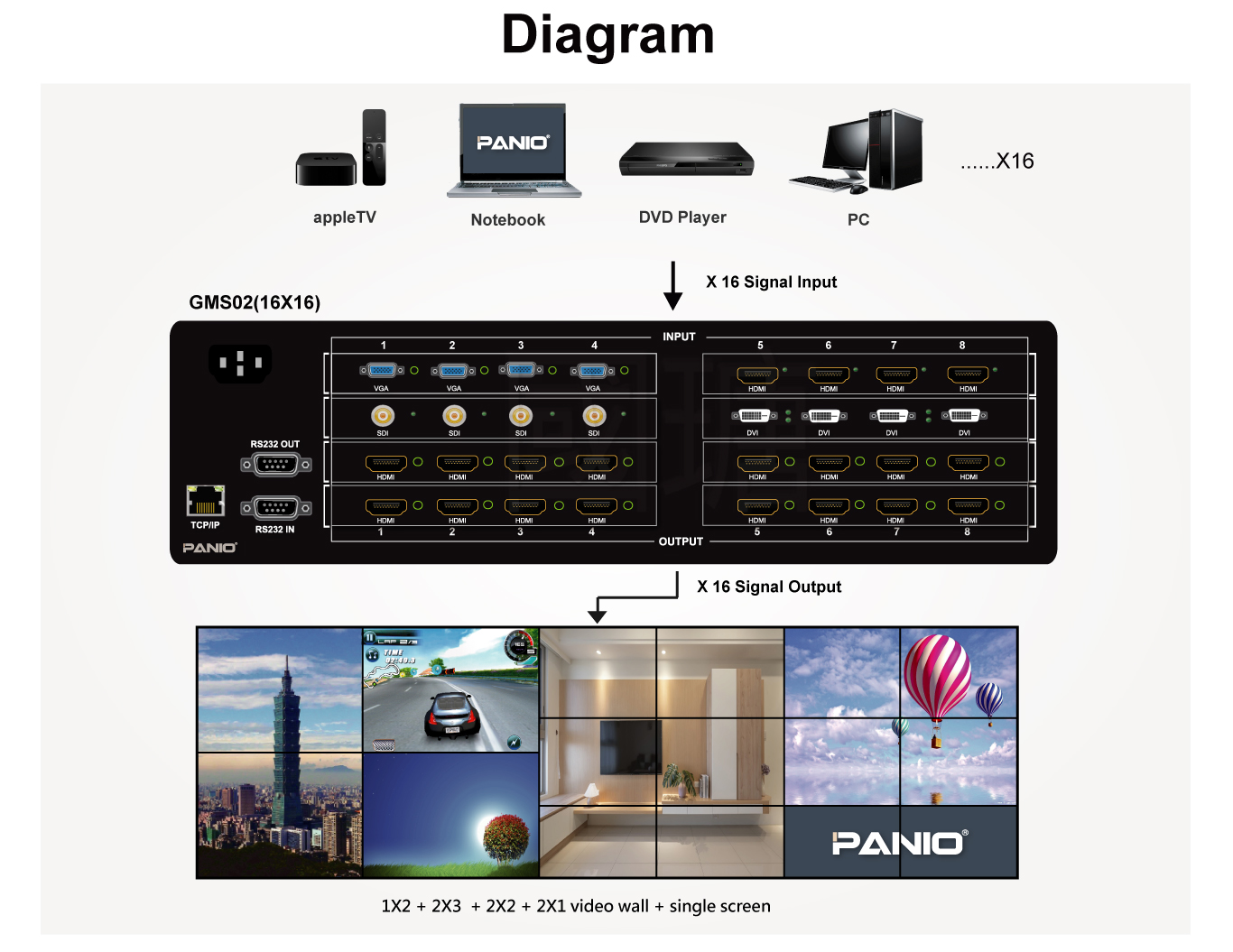

For example, 16 TV walls: 2X2 splicing + 3X2 splicing screens and 6 screens display different signal sources.

centralized control

Support dual RS-232 and TCP/IP interfaces for centralized control and management.

2-in-1 AV signal processor

TV wall splicer + matrix signal switcher.

Mixed interface

You can choose VGA+3.5mm/ HDMI/ DVI/ 3GSDI interface input at will.

Auto EDID function

Support EDID automatic detection, the screen does not change shape.

Sound separate Output

Output 3.5mm audio, can be connected to external speakers.

Save scene

There are up to 16 groups of shortcut keys for scene storage, which can quickly call the desired scene.

Modular architecture design

Optional 4/ 8/ 12/ 16/ 20/ 24/ 28/ 32 port input and output signal matrix interleave switching, flexible expansion of video and audio output ports.

Modular Matrix TV Wall Splicer
Feature
  • Support up to 32 screens for video wall splicing. (Vertical splicing needs to be handled by a computer or a rotator)
  • The input and output resolutions can up to 1080P 60Hz.
  • Support HDMI1.3, HDCP, EDID management.
  • Support splicing + simultaneous display of single screen.
  • Optional 4/ 8/ 12/ 16/ 20/ 24/ 28/ 32 port signal input and output matrix interleaved switching, flexible expansion of audio and video input and output ports.
  • 1 card with 4 channels design, eg: 24 channels input x 16 channels output, need to buy 6 input cards + 4 output cards.
  • Support multiple interfaces VGA+3.5mm/ HDMI/ DVI/ 3GSDI input.
  • Audio de-embedded from any HDMI input.
  • Support automatic storage protection in power failure scene, automatic recovery memory function after power on.
  • Interface bandwidth 3.4Gbps, total bandwidth 10.2Gbps.
  • Control mode: remote control, key switching, TCP/IP, dual RS-232.
  • Support for 19" rack size.

Specification

Model Name GMS02
Input 4-Port Input Board, Optional HDMI, DVI, VGA, 3G-SDI interface
Output 4-Port HDMI with 3.5mm output Board
Resolution Input/ Output: 1920 x 1200 @60HZ, 1920 x 1080 @60HZ, backward compatible
Bandwidth 10.2G
Status display LED screen
Control method Remote control, Panel Button, Dual RS-232, TCP/IP
Maximum HDMI cable length Extended through a standard HDMI cable, and the output/input length can be up to 5m each (over this length, please use it with an extender)
Control method Remote control, TCP/IP, Dual RS-232, button
Power consumption 2U: 25W (Max) / 3U: 40W (Max) / 6U: 75W (Max)
Power Supply AC 100~240V 50~60HZ
Dimensions 2U: 445 x 309 x 88mm / 3U: 483 x 309 x 133mm / 6U: 486 x 400 x 266mm / Other customization (LxWxH)
Weight 2U: 4.9Kg / 3U: 6.75Kg / 6U: 13.8Kg

Note:

  • Please use certified HDMI cables to connect the signals.
  • IIt is not recommended to connect, switch, distribute, and convert in series. Equipment without original factory certification.
  • Please use the certified power cord from the original manufacturer.
  • If you need to connect other devices, please let us know to avoid incompatibilities.
  • The remote control without batteries.

Package Contents

  • 1 X GMS02
  • 1 X Power cord
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
