GMS01


4K 30Hz seamless matrix processor

Support video wall, RS-232, TCP/IP control


Products / Video Wall

Video wall splicing

Up to 36 screens video walls can be spliced together.

Quick switch

When the signal source is switched, there is no black screen 0 seconds quick display function.

Scene automatic scanning function

The time of automatic platform jump in different scenes can be adjusted.

4K resolution

Support 3840 × 2160 30Hz resolution.

Redundant Power

Support dual power control backup function. (Additional purchase)

Dual RS-232

Supports 2 ports RS-232, which can be connected to the control screen.

Modular architecture

Supports 8/ 12/ 16/ 20/ 24/ 28/ 32/ 36-port matrix interleaved switching, flexible expansion of audio and video output ports.

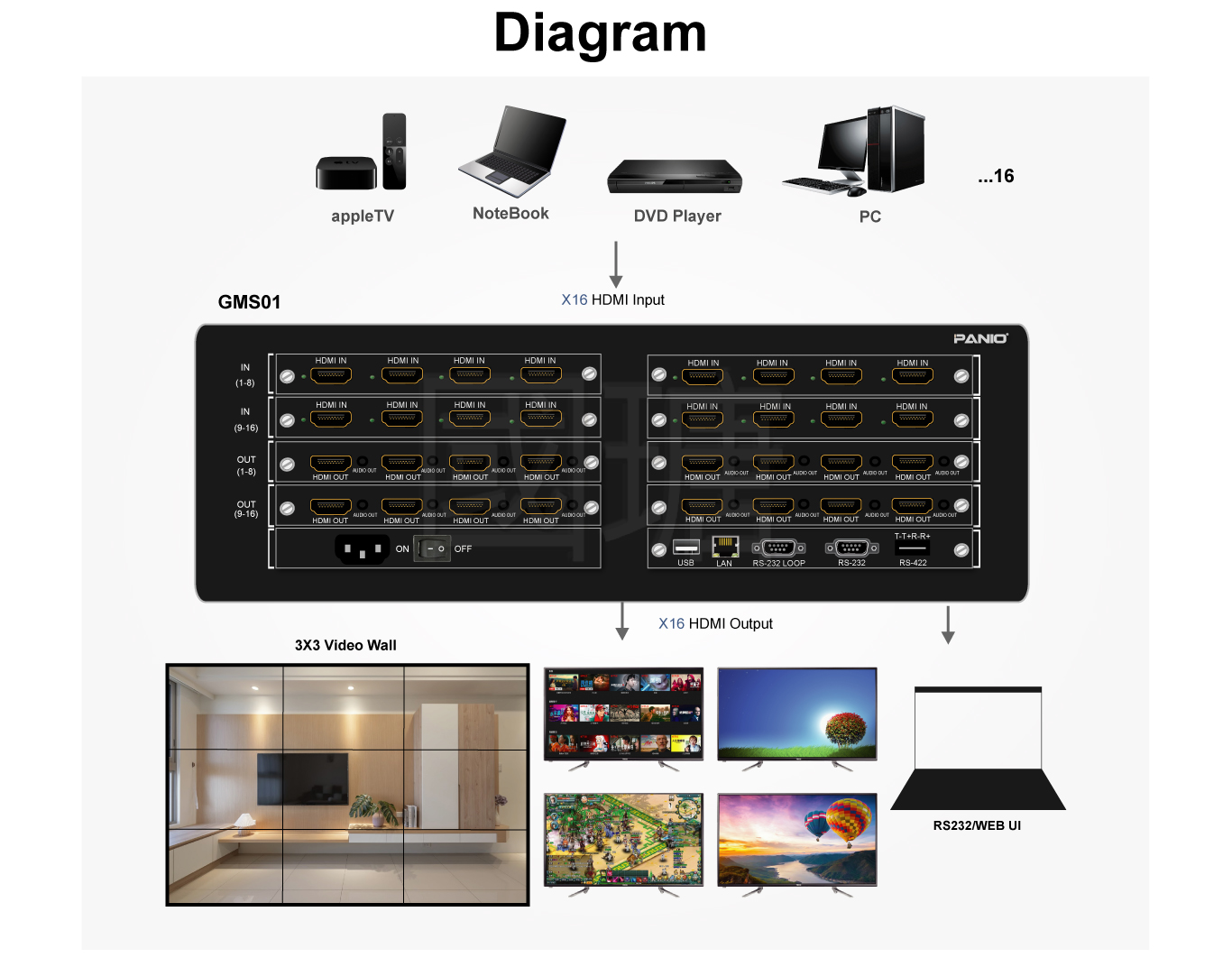

4K Quick Matrix switch with video wall
Feature
  • Support 4K video and audio signal multi-in and multi-out matrix cross-switching.
  • Support 4K splicing video wall processing function.
  • 1 card with 4 ports design, for example: 8 port input x 8 port output, you need to purchase 2 input cards + 2 output cards.
  • Support front panel access scene operation, can pre-store multiple sets of scene switching modes.
  • Supports uncompressed digital switching.
  • Support Web UI remote control.
  • PANIO Quick switch Technology: Support 0 second switch display function.
  • Support RS-232 automatic detection, you can judge whether there is a problem with RS-232.
  • Support scene automatic scan function (adjustable to automatically switch between different scenes).
  • The Web UI supports 3 switching modes: time schedule switching, custom group switching, and synchronous switching.
  • Support input and output port mapping function, in case of emergency, the faulty card can be temporarily skipped to facilitate the normal display of the screen.
  • Support machine temperature detection.
  • Support setting network static IP and dynamic IP.
  • Support the removal and replacement of the fan cooling module.
  • Support power supply 1+1 backup to ensure 24 hours continuous operation of the equipment (optional).
  • Control method: remote control, button,TCP/IP, RS-232.
  • Support 19" rack size.

Specification

Model Name GMS01
Input Support HDMI interface
Output Support HDMI / 3.5mm interface
Video resolution 4096x2160 @30HZ, 1920x1080p, 1768x992p, 1680x1050p, 1600x1024p, 1600x900p, 1360x768p, 1280x1024p, 1280x960p, 1280x800p, 1280x768p, 1280x720p, 1176x768p, 1152x864p, 1024x768p, 480p, 800p
Bandwidth 8.25G
Clock Jitter <0.15Tbit (1080P 60)
Rise Time <0.3Tbit (20%--80%)
Falling time <0.3Tbit (20%--80%)
Transmission delay time 5nS (Max)
Signal strength T.M.D.S +/- 0.4Vpp
Differential impedance 100±15Ω
RS-232 port 2 x 9pin, D-type interface
RS-232 transmission rate Serial transmission rate: 9600, data bits: 8 bits, stop bits: 1, no parity bit
Control method Button, remote control, RS-232, TCP/IP
Power consumption 300W (Max)
Power AC170~245V 50~60HZ
Dimensions 1.5U: 482 x 306 x 72mm / 3U: 482 x 306 x 134mm / 6U: 482 x 300 x 270mm / other customized (LxWxH)

Note:

  • Please use a certified cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • Quick switch: need to be at the same resolution.

Package Contents

  • 1 X GMS01 chassis
  • 1 X Power cord
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
