CQ8210K


4K 60Hz HDMI Multi-View Matrix Splitter

Supports Dual Monitor Matrix Switching Output


Products / Multi-View Switch

4K 60Hz

Supports Maximum Output Resolution of 4K 60Hz with Crystal Clear 4-Split Mode

Multi-View Display

Built-In Multi-View Options to Meet Diverse Conference Needs

8x2 Matrix Switch

Featuring 8 Input Channels and 2 Output Channels, Employing a Matrix Switching Configuration.

Seamless Signal Transitions

Zero-Second Instant Display with No Black Screen During Signal Source Switching.

Dual Audio Outputs

This device offers two distinct audio output options: a 3.5mm headphone jack and an optical audio port.

4K Quad-Split KVM Switch: Enhance Productivity with Window Tiling & Free Dragging！
Feature
  • 8-Port HDMI Input Matrix Switch.
  • Equipped with Dual HDMI Output Ports for Dual Screen Display.
  • 8-Port HDMI Input Device: Supports 1080P, 720P, 1080I, 576P, and 576I Resolutions for High-Quality AV Experience.
  • High-Resolution Output: Supports 1080P, 2560x1600, 2560x1440, 4K 30Hz and 4K 60Hz.
  • HDMI 2.0 and HDCP 2.2 Compatibility for Superior Performance.
  • Dual Audio Outputs: 3.5mm and Optical Audio Support.
  • Seamless 0-second switching between signal sources with the same resolution is possible in full-screen.
  • Supports Up to 23 Multi-Window Split Screen Configurations.
  • Equipped with three control modes: panel buttons, remote control, and WEB UI, to meet the needs of different usage scenarios.
  • Even with multi-window splitting, 4K resolution guarantees the preservation of image detail and clarity.
  • Featuring an integrated picture-in-picture mode, allowing for the movement and resizing of the sub-screen.

Specification

Model Name CQ8210K
Input Interfaces 8 × HDMI
Output Interfaces 2 x HDMI, 3.5mm,Optical Audio
Input resolution Support 1080P, 720P, 1080I, 576P, and 576I.
Output resolution Support 1080P 60HZ, 2560 x 1600 60HZ, 2560 x 1440 60HZ, 3840 x 2160 30HZ, 3840 x 2160 60HZ.

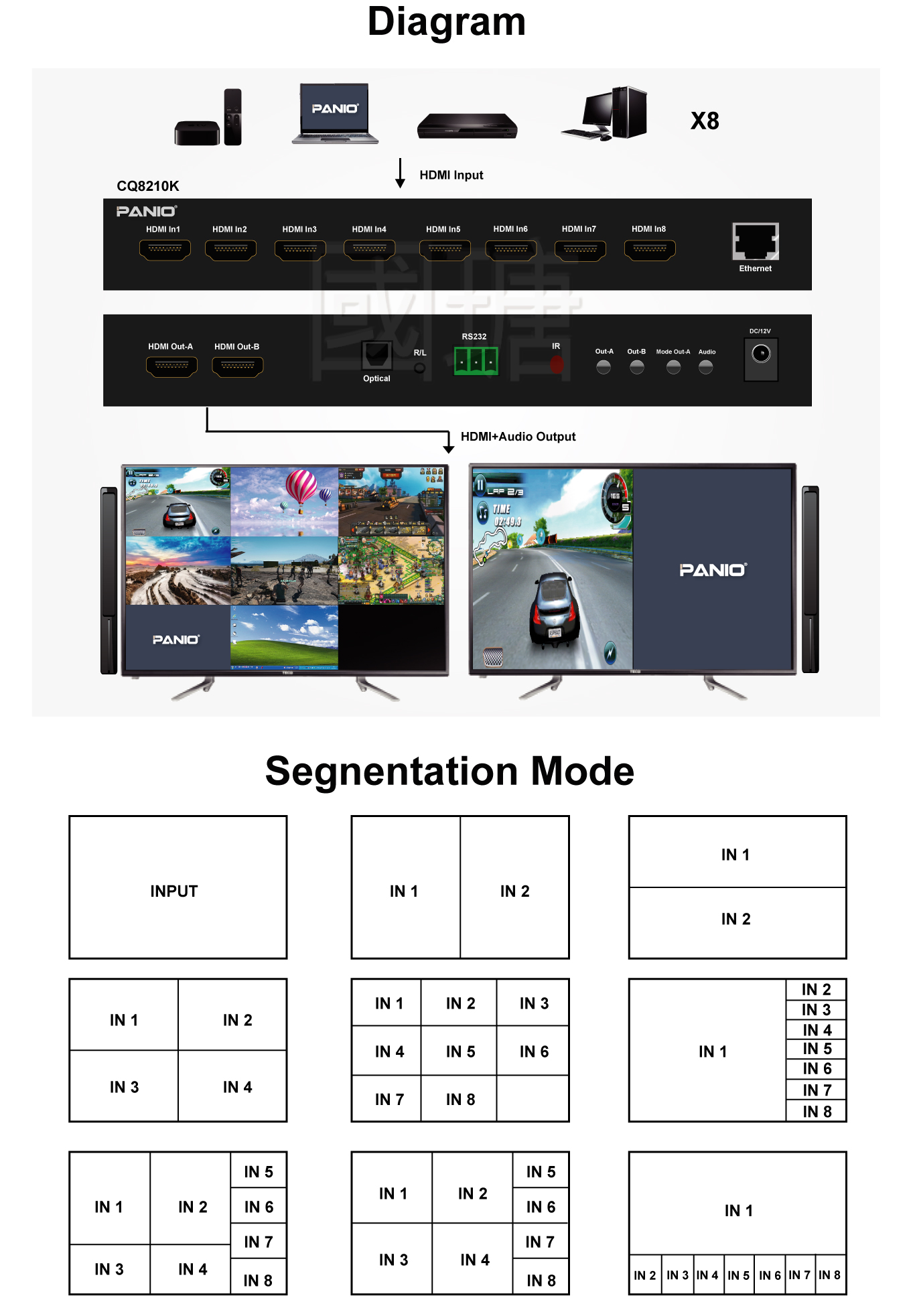

Presentation mode 9 split screen/ 8 split screen/ 7 split screen/ 6 split screen/ 5 split screen/ 4 split screen/ 3 split screen/ 2 split screen/ full screen screen.
The video transmission distance Optimal HDMI Cable Lengths: Input and Output Total Should Not Exceed 10 Meters.(Max.)
Control methody Remote control, button, WEB UI.
Power supply DC 12V 2A
Dimensions 226x113x25mm (LxWxH)
Weight 520g

Note:

  • RS-232 is not functioning in this location.

Package Contents

  • 1 × CQ8120K
  • 1 × Remote Control (batteries not included)
  • 1 × DC 12V 2A
  • 1 x Quick guide
