CQ8200


8-channel HDMI KVM Multi-computer centralized manager

Support 2 monitors to display up to 8 split screens


Products / KVM Switch

8-channel 2 monitors to display & 8 split screens HDMI KVM Switch | PANIO
8-channel 2 monitors to display & 8 split screens HDMI KVM Switch | PANIO
Feature
  • Support 8-port HDMI+ 8-port USB signal input.
  • Support 2 monitors with 8 split windows.
  • Resolution up to 1920x1080 @60HZ.

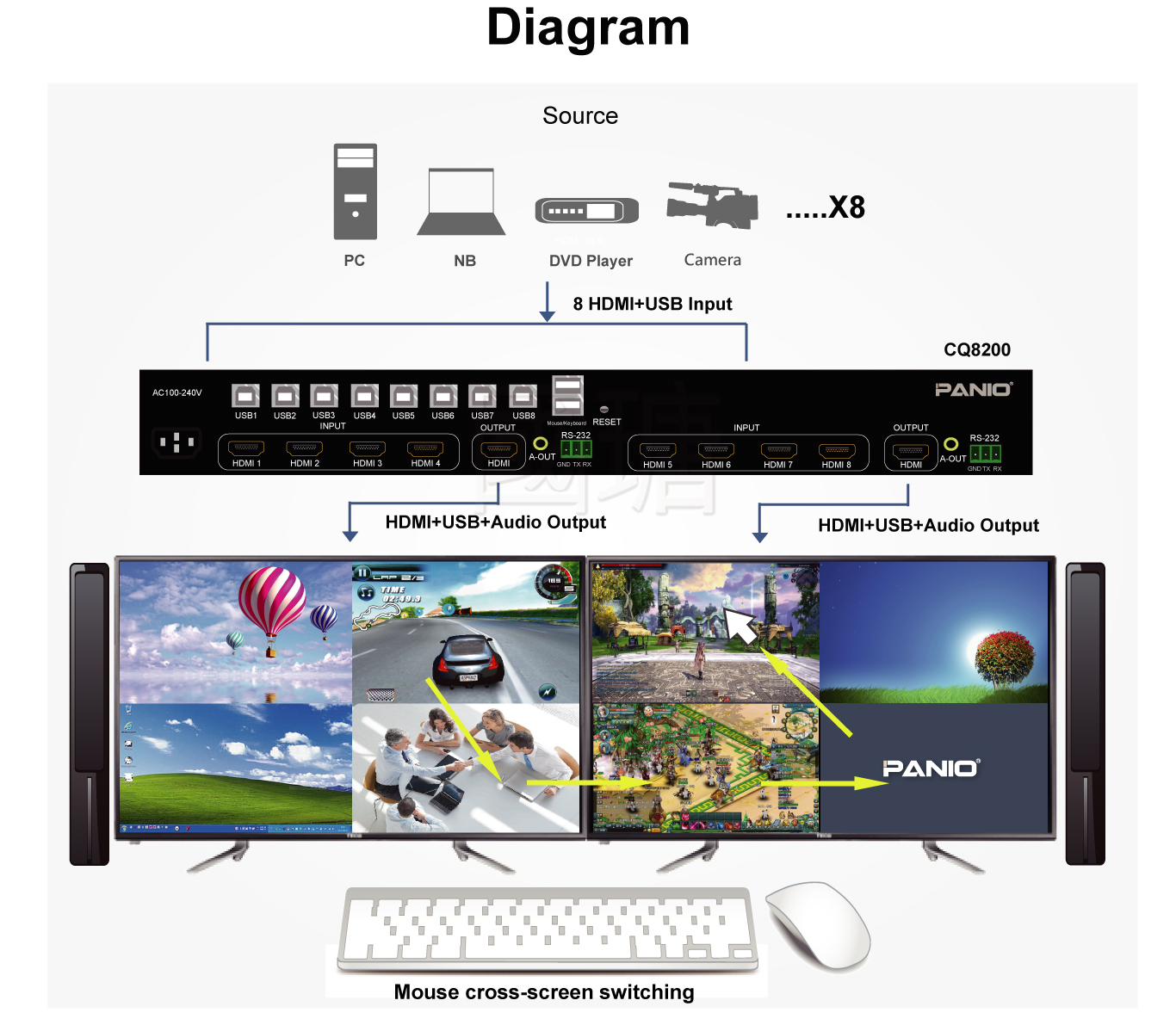

  • Support mouse cross-screen switching function, as long as you easily move the mouse across the boundary of the split screen, you can jump to other computer host screen control.
  • Built-in multiple screen modes: 8 splits screen/ 1 full screen 4 split screen/ 2 full screen.
  • Support keyboard hotkey switching/mouse cross-screen switching / RS-232 commands.
  • Support video separation technology, output built-in 3.5mm audio port, and additional speakers can be connected to output sound.
  • PANIO fast switching technology: support 0 seconds switching display function.

Specification

Model Name CQ8200

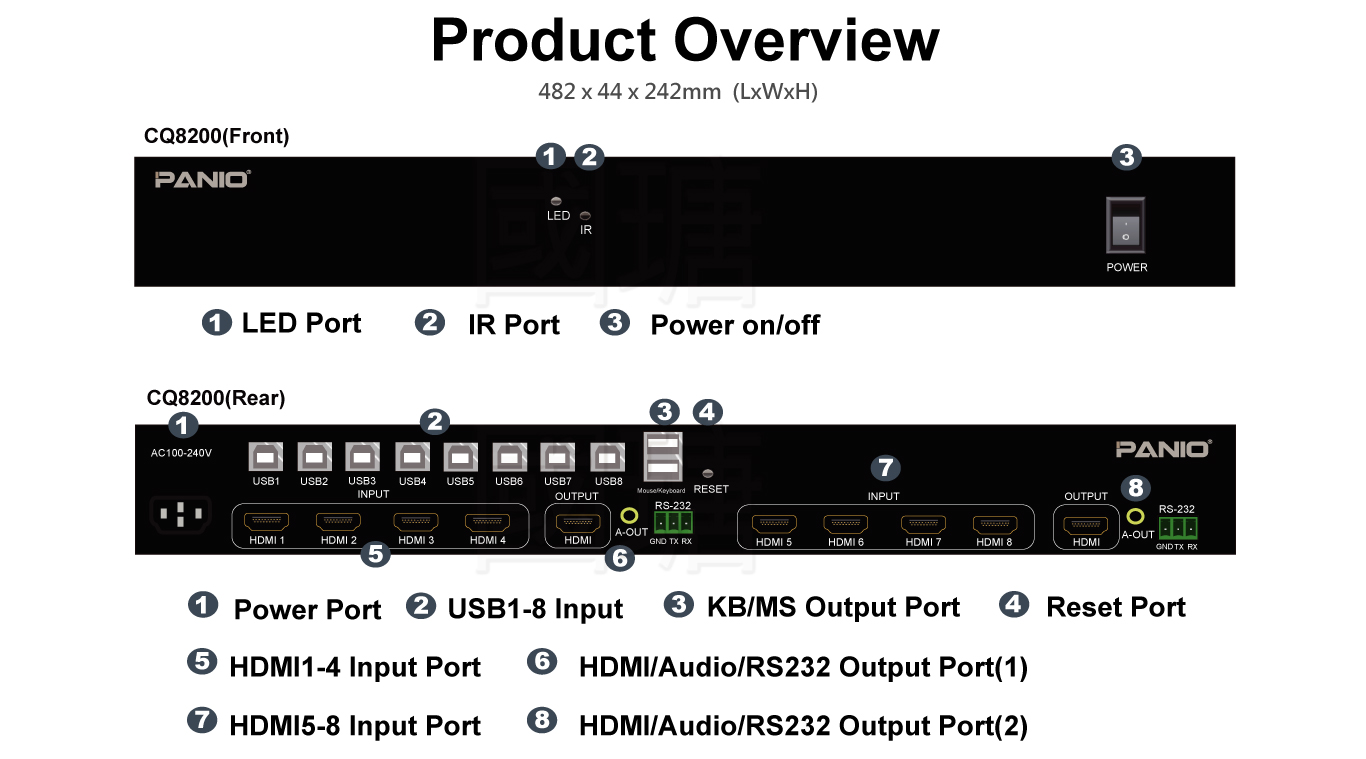

Input port 8 x HDMI, 8 x USB
Output port 2 x HDMI (Left output display: Computer 1 2 3 4, Right output display: Computer 5 6 7 8), 2 x USB to mouse/keyboard, 2 x 3.5mm
Video resolution (Max) Up to 1920x1080 60HZ
Display mode 8 split screen / 1 full screen 4 split screen / 2 full-screen
Control mode Keyboard hotkeys, USB mouse cross-screen switching, RS-232 commands
Cable length Input and output can be connected to HDMI cables with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Power supply AC 100~240V 50/60Hz
Dimensions 482 x 242 x 44mm ( LxWxH )
Weight 3.75Kg

Note:

  • The 8 USB cables and HDMI cables must be in good order. If the wrong number is connected, the USB cannot be connected to the same computer, resulting in the keyboard and mouse being unable to work
  • Please use the original certified USB cable.
  • It is not recommended to connect, switch and distribute converters in series. No equipment such as original factory certification.
  • Certain industrial computers are not compatible with this device.
  • If you need to use it with other devices, please be sure to inform us so as not to cause incompatibility problems.
  • Dual-screen non-interlaced display, please read the specification sheet for details.

Package Contents

  • 1 X CQ8200
  • 8 X USB Cable
  • 1 X Power Cord
  • 1 X User manual
