CQ4170K


4 in 1 out 4K HDMI+USB2.0 Multi-View KVM switch

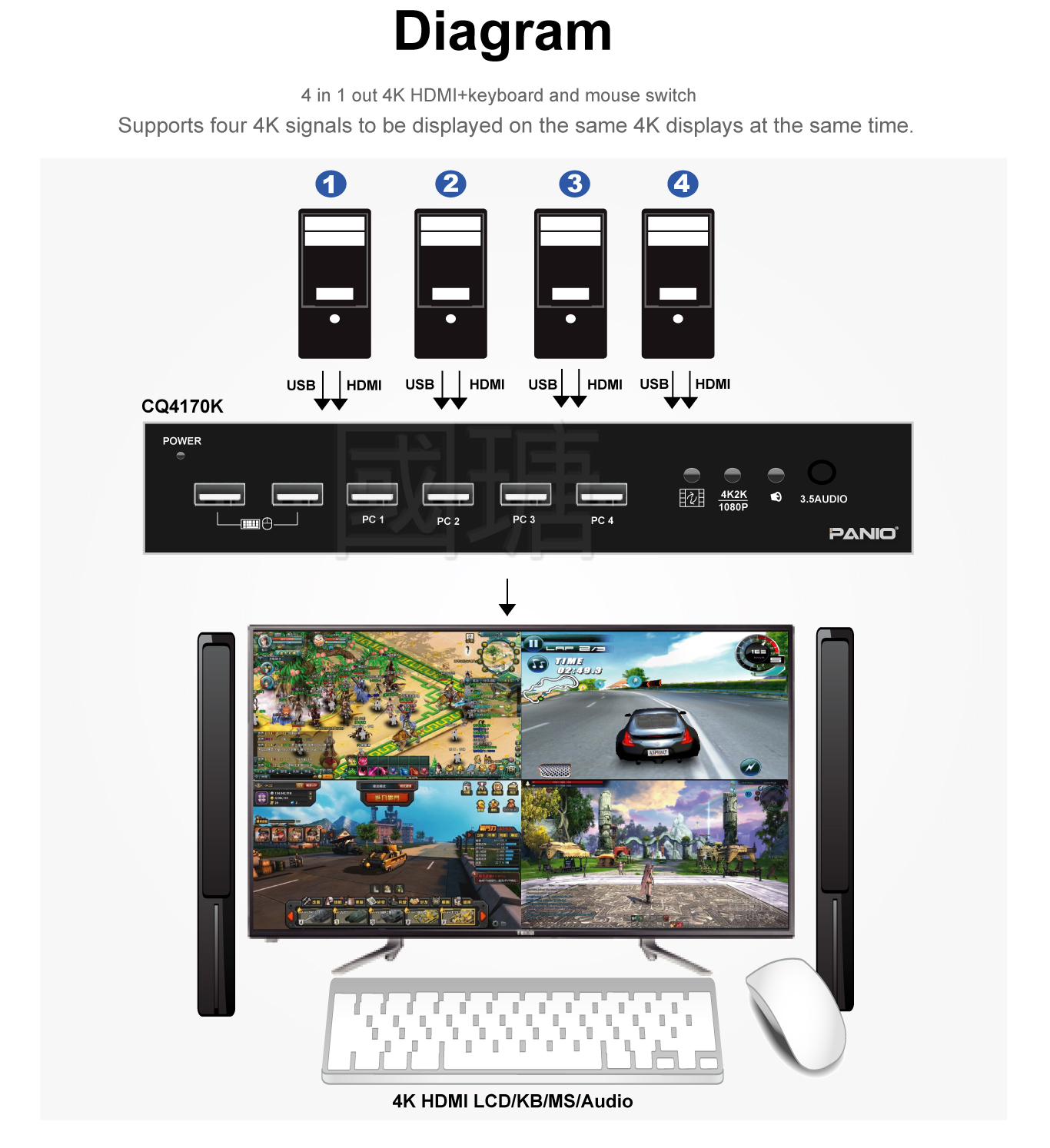

Support 4 computers to share 1 set of on-screen keyboard and mouse, built-in multiple split screens


Products / Multi-Viewer Switch

4 in 1 out 4K HDMI+USB2.0 Multi-View KVM switch
Feature
  • Support 4-port HDMI+ 4-port USB signal input.
  • Support 4-port signal input, 1080P, 720P, 1080i, 1024 x 768, 1360 x 768...etc.
  • Support output resolution, 1080P 60Hz, 4K 30Hz.
  • Support split mode mouse cross-screen switching function, as long as you easily move the mouse across the split-screen boundary, you can jump to other computer host screens for control.
  • Support split mode can use a mouse to control 4 computer signals simultaneously.
  • Built-in multiple screen modes: 4 split screen / 2 split screen / 1 large 3 small screen / full screen screen.
  • Supports button switch/hotkey switch/mouse cross-screen switch.
  • Support audio and video separation technology, output built-in 3.5mm audio port, can be connected to additional speakers to output sound.
  • Compatible with operating systems such as Windows XP/ 7/ 8/ 10, OSX...

Specification

Model Name CQ4170K
Input port 4 × HDMI, 4 x USB
Output port 1 x HDMI, 2 x USB for mouse/keyboard, 1 x 3.5mm
Video resolution (Max) Input support 1080P, 720P, 1080i, 1024 x 768, 1360 x 768... etc., output support 1080P 60Hz, 4K 30Hz
Screen division function 4 split screens / 2 left and right screens / 1 large 3 small screens / full screen
Control mode Button, hotkey, USB mouse cross-screen switching
Cable length Input and output can be connected to HDMI cables with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Power supply DC 12V 2A
Dimensions 223 x 105 x 35mm (LxWxH)
Item Weight 750g

Note:

  • First connect Adapter, then connect the HDMI cable, then connect the USB cable when there is a picture, and finally connect the keyboard and mouse.
  • The 4 USB cables and the HDMI cables must be in good order. Connecting the wrong order causes the USB to fail to match the PC screen, which makes the keyboard and mouse unable to operate.
  • The monitoring host or industrial computer USB system is not supported.
  • To ensure the stability of the picture, please do not use the converter.
  • Please use the original certified USB cable.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.

Package Contents

  • 1 X CQ4170K
  • 4 X USB cable
  • 1 X DC 12V 2A adapter
  • 1 X User manual
