CQ4155K


4K Multi-View KVM Switch

Support for Custom Screen Placement, Scaling, Stacking, and Built-in Multi-View Options


Products / Multi-View KVM Switch

4K 30Hz

Supports Maximum Output Resolution of 4K 30Hz with Crystal Clear 4-Split Mode

Multi-View Display

Built-In Multi-View Options to Meet Diverse Conference Needs

Picture-in-Picture (PiP)

Seamlessly Switch Between Computers with Mouse Cursor Movement.

Seamless Signal Transitions

Zero-Second Instant Display with No Black Screen During Signal Source Switching.

TCP/IP and RS-232

Effortless Remote Control via TCP/IP Network and RS-232 Serial Communication.

Scene Save

Advanced Scene Management: Save 8 Preset Scenes with RS-232 Expansion to 16 Scenes – Streamline Operations and Save Time.

Audio separation functionality

Standard 3.5mm Audio Jack for Superior Sound Quality with External Speaker Connections.

Customizable Screen Splitting

Intuitive Software Interface for Seamless Image Layering and Customizable Meeting Layouts to Enhance Visual Impact.

Versatile Display Modes

Support for Undistorted Left/Right and Top/Bottom Splitting, Point-to-Point Display, and More.

Flexible Source Arrangement

Customizable Computer Signal Layouts in Split Display Mode.

4K Quad-Split KVM Switch: Enhance Productivity with Window Tiling & Free Dragging！
Feature

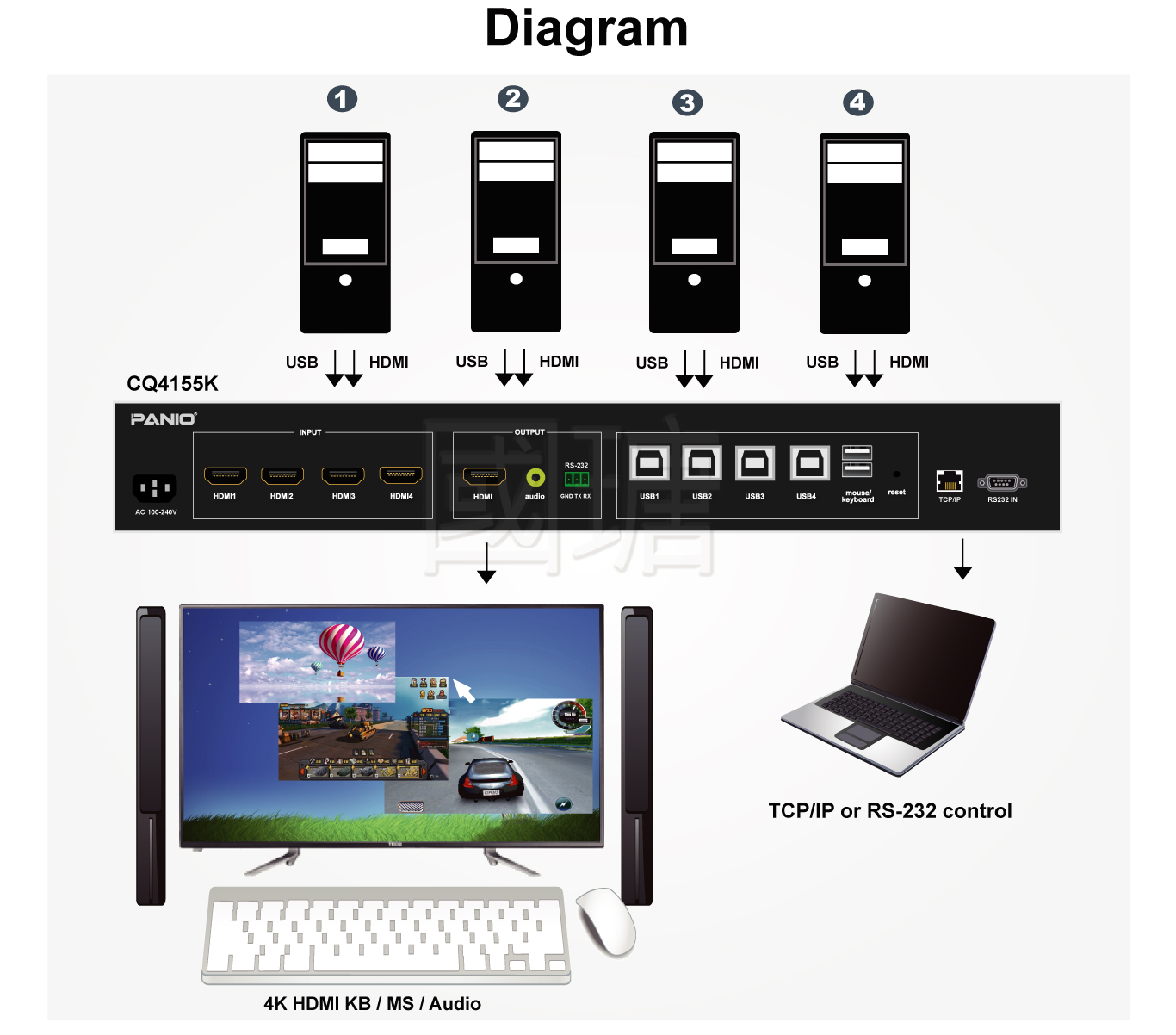

  • 4-Port HDMI and 4-Port USB Input, 1-Port HDMI and 2-Port Keyboard/Mouse Output KVM Switch.
  • Supports Quad-Split, Horizontal Split, and Vertical Split Modes to Accommodate Various Work Scenarios.
  • Supports High-Resolution 3840x2160 @30Hz for Enhanced Visual Clarity.
  • Supports 5 Manual Resolutions for Versatile Device Compatibility.
  • KVM Switching: Quick Screen Mode and Audio Output Changes via Keyboard Hotkeys, with Convenient Quad-Split Mouse Roaming.
  • Built-in Multi-View Mode: Offers flexible viewing options including 4-way split, 3-way split, 2-way split, picture-in-picture, large and two small, large and three small, and full screen.
  • Advanced Multi-Window Management Software: Flexible Desktop Layout with Adjustable Window Sizes, Positions, and Layering Capabilities.
  • PANIO Instant Switching Technology: Seamless 0-Second Display Transition Support.
  • Control Methods: Remote Control, Panel Buttons, Cross-Screen Mouse Switching, Scene Hotkeys, TCP/IP, and RS-232 Commands.
  • Audio Separation Technology: Built-in 3.5mm Audio Port for External Speaker Output.
  • 8 Preset Scenes for Instant Display Customization.

Specification

Model Name CQ4155K
Input Interfaces 4 × HDMI, 4 × USB
Output Interfaces 1 × HDMI, 2 × USB (for mouse/keyboard), 1 × 3.5mm audio
Output Display Features Supports various multi-window and single-window switching modes, Fast 0-second switching, Mouse roaming across screens.
Supported Resolutions Input: up to 3840x2160 30Hz
Output options:3840x2160 30Hz, 3840x1080 30Hz, 2560x1440 60Hz, 1920x1080 60Hz,1280x720 60Hz
Presentation Display Modes 4-split screen, 3-split screen, 2-split screen, 1 large and 1 small picture-in-picture (PiP) screen, 1 large and 2 small screens, 1 large and 3 small screens, Full screen, Fixed split screen
Switching Methods Remote control, Buttons, USB mouse roaming, TCP/IP, RS-232 commands
Power Supply AC 90V-260V
Weight 2.9 Kg
Dimensions 435 x 241 x 44mm (LxWxH)

Note:

  • Ensure that the four USB cables and four HDMI cables are connected in the correct order. Incorrect connections may cause the USB ports to not correspond to the correct computers, resulting in non-functional keyboard and mouse operations.

Package Contents

  • 1 × CQ4155K
  • 4 × USB Cables
  • 1 × Remote Control (batteries not included)
  • 1 × Power Cable
  • 1 × User Manual
