CK3000W


HDMI + USB + Audio + IR signal wireless WIFI extender

Support WIFI wireless transmission 200 meters, near-end output HDMI signal, 1 input and multiple output, multiple input and 1 output


Products / KVM EXTENDER

4K Quick Matrix switch with video wall
Feature

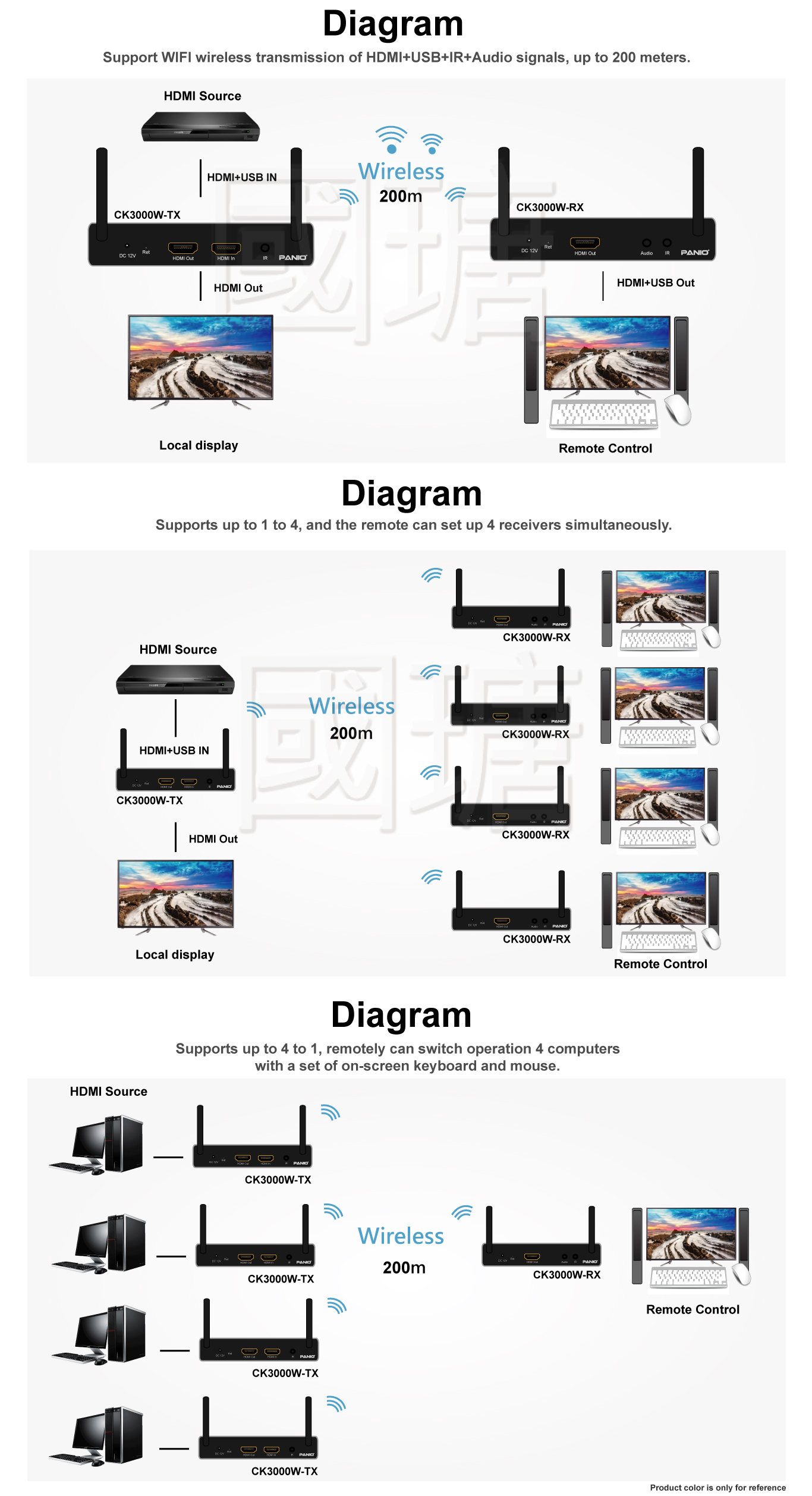

  • Support WIFI wireless transmission of HDMI+USB+IR+Audio signals, up to 200 meters in open and unobstructed places.
  • Built-in transmitter HDMI signal output can be connected to a monitor at the near end.
  • The resolution is up to 1920x1080 @60Hz.
  • Supports up to 1 to 4, and the remote can set up 4 receivers simultaneously.
  • Supports up to 4 to 1, remotely can switch operation 4 computers with a set of on-screen keyboard and mouse.
  • Pure hardware design, plug, and play, no need to install additional software.
  • Supports 2 transmission modes. Image mode: clear text and low-latency keyboard and mouse operation. Video mode: for watching smooth video and audio videos.
  • Support audio de-embedding: The receiving end outputs a 3.5mm port, which can be connected to a speaker to output sound.

Specification

Model Name CK3000W
Transmitter 1 x HDMI output, 1 x HDMI input, 1 x USB input, 1 x IR
Receiver 1 x HDMI output, 2 x USB output, 1 x 3.5mm output, 1 x IR
Support resolution The highest resolution 1080P @60Hz
Transmission distance Up to 200 meters in open areas
Wireless frequency 2.4Ghz/ 5GHz
Protocol standard HDMI1.3
Cable length input and output can be connected with a maximum length of 1.5 meters HDMI cable
Power supply DC 12V 1A
Dimensions 315 x 160 x 36mm (LxWxH)

Note:

  • The longest distance and best effect of the device can be reached in an open and unobstructed space.
  • Industrial computer USB keyboard and mouse are not supported.
  • To maintain quality stability, please use the original certified adapter.
  • Please use certified HDMI cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.

Package Contents

  • 1 X CK3000W transmitter
  • 1 X CK3000W receiver
  • 2 X 12V 2A adapter
  • 4 X Antenna
  • 1 X User manual
