CH4412


4x4 Matrix Switch Video Wall Controller

Matrix Switching, Video Wall Splicing


Products / Video Wall

4x4 Matrix Video Wall Controller

Create Stunning Visual Displays with 4x4 Matrix Switch Video Wall Controller.

Video wall+Matrix Switcher

Transform Your Displays into Captivating Video Walls with Seamless Matrix Switching.

Seamless Signal Switching

Enjoy Smooth Transitions with Zero-Latency Signal Switching.

Automatically detect no input signal

Never Miss a Signal, Automatic Source Jump Ensures Continuity.

The latest signals are displayed first

Never miss a beat with our matrix switcher's built-in auto-detection, prioritizing the latest input signal for seamless switching.

Video wall+Single screen synchronization

Unleash versatile display options with our innovative splicing video wall technology, enabling simultaneous synchronized viewing on both the wall and individual screens.

3.5mm output

Connect external speakers for enhanced audio playback with our matrix switcher's 3.5mm jack.

3.5mm input

Experience the future of audiovisual integration with our innovative HDMI audio embedding technology, seamlessly combining external audio with your HDMI content.

16 scene shortcuts

Use the remote control, front panel buttons, WEB GUI and RS-232 commands to store or quickly recall scenes.

Remote push button

Support LAN(POE) or RS-232 to control remote equipment, such as matrix switcher, video wall splicer, etc..(with CP1000)

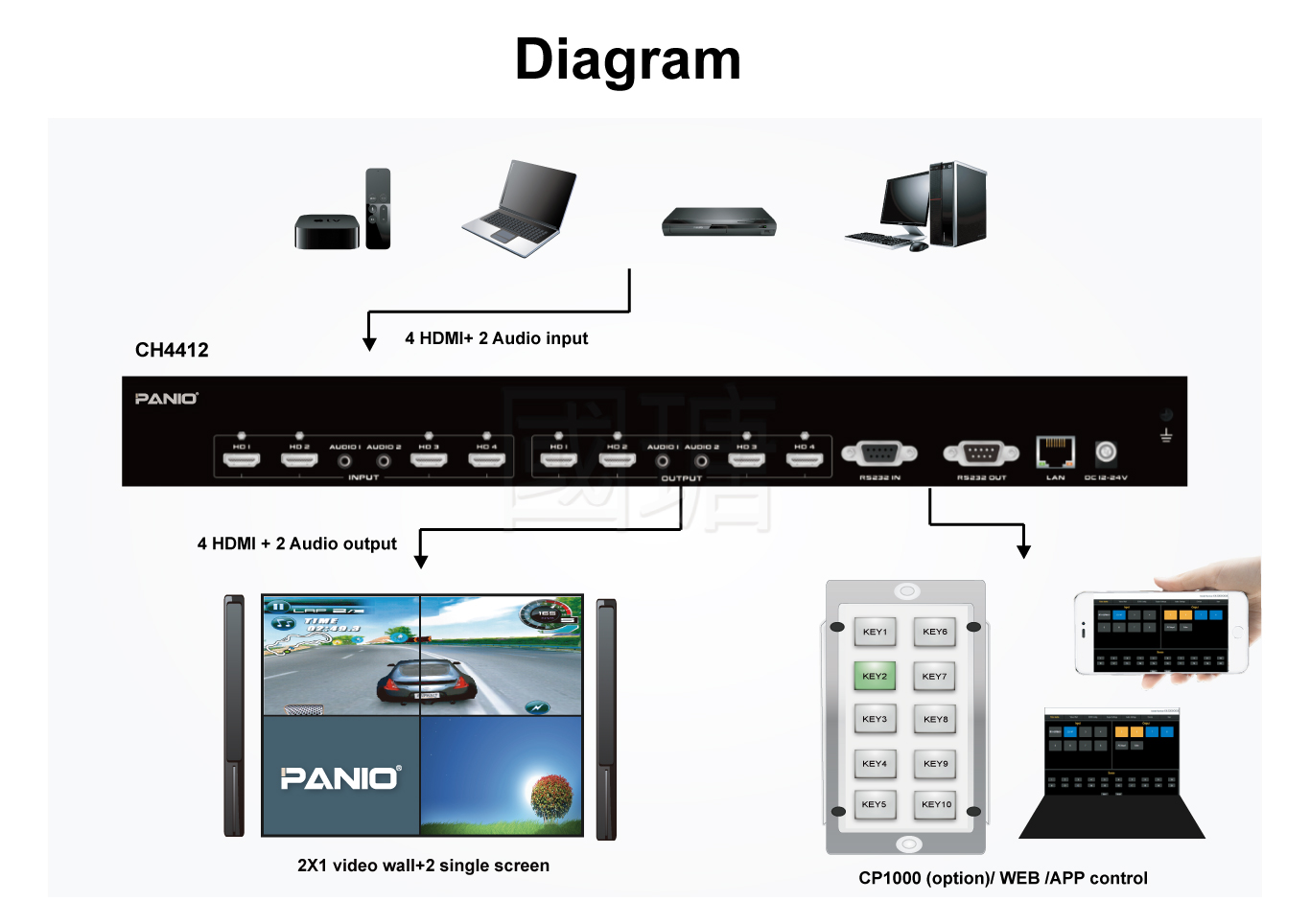

Quick Matrix switch with video wall
Feature
  • 4-in, 4-out Matrix Switcher with Integrated Video Wall Processor.
  • Input and output support up to 1080p resolution, backward compatible.
  • Support HDMI1.4a, HDCP1.4.
  • Experience seamless visual transitions with our cutting-edge technology. Enjoy zero-second switching, eliminating black screens and delays, for real-time content changes and a smoother overall viewing experience.
  • Simultaneous Display on Video Walls and Individual Screens.
  • Harness the power of EDID processing technology to eliminate display-related issues like unsatisfactory picture quality, flickering screens, and frustrating no-display scenarios.
  • Elevate your audio experience with our versatile sound input and independent sound separation output capabilities.
  • Experience comprehensive control options with our versatile device, supporting push button, remote control, TCP/IP, RS-232, and Remote IP/RS-232 push button controller (with CP1000) integration.
  • Over the LAN or RS-232 interface, with the remote control button - CP1000; Simplify complex commands into a single button, users can easily and quickly get started.
  • The output signal is used with GMS05 to extend the HDMI signal to 100m long-distance dual-screen display.

Specification

Model Name CH4412
Input 4 x HDMI, 2 x 3.5mm
Output 4 x HDMI, 2 x 3.5mm
Input resolution The maximum resolution is 1920x1080 60HZ, backward compatible.
Stitching output resolution Output resolution: 1080P\ 720P\ 1366 x 768 60Hz
Control method Remote control, TCP/IP, ,APP, RS-232, Button
Power AC 110V-240V
Dimensions 430 x 260 x 44mm (LxWxH)
Weight 3.4Kg

Note:

  • Ensure a Flawless Visual Experience with Our Certified HDMI Cables
  • To ensure optimal performance, avoid using uncertified serial switchers, distributors, or converters.
  • The total HDMI cable length (input + output) should not exceed 10 meters. For longer distances, an optical HDMI cable is recommended.

Package Contents

  • 1 X CH4412
  • 1 X Power cord
  • 1 X Remote control (Battery not provided)
  • 1 X RS-232 Cable
  • 1 X Rack Accessories
  • 1 X User manual
