CH218K


4K 60Hz HDMI2.0 1 in 8 out signal synchronizer

Support EDID management function & output downscaling


Products / Video Splitter

4K 60Hz 8port HDMI2.0 Video Splitter|TAIWAN PANIO
Feature

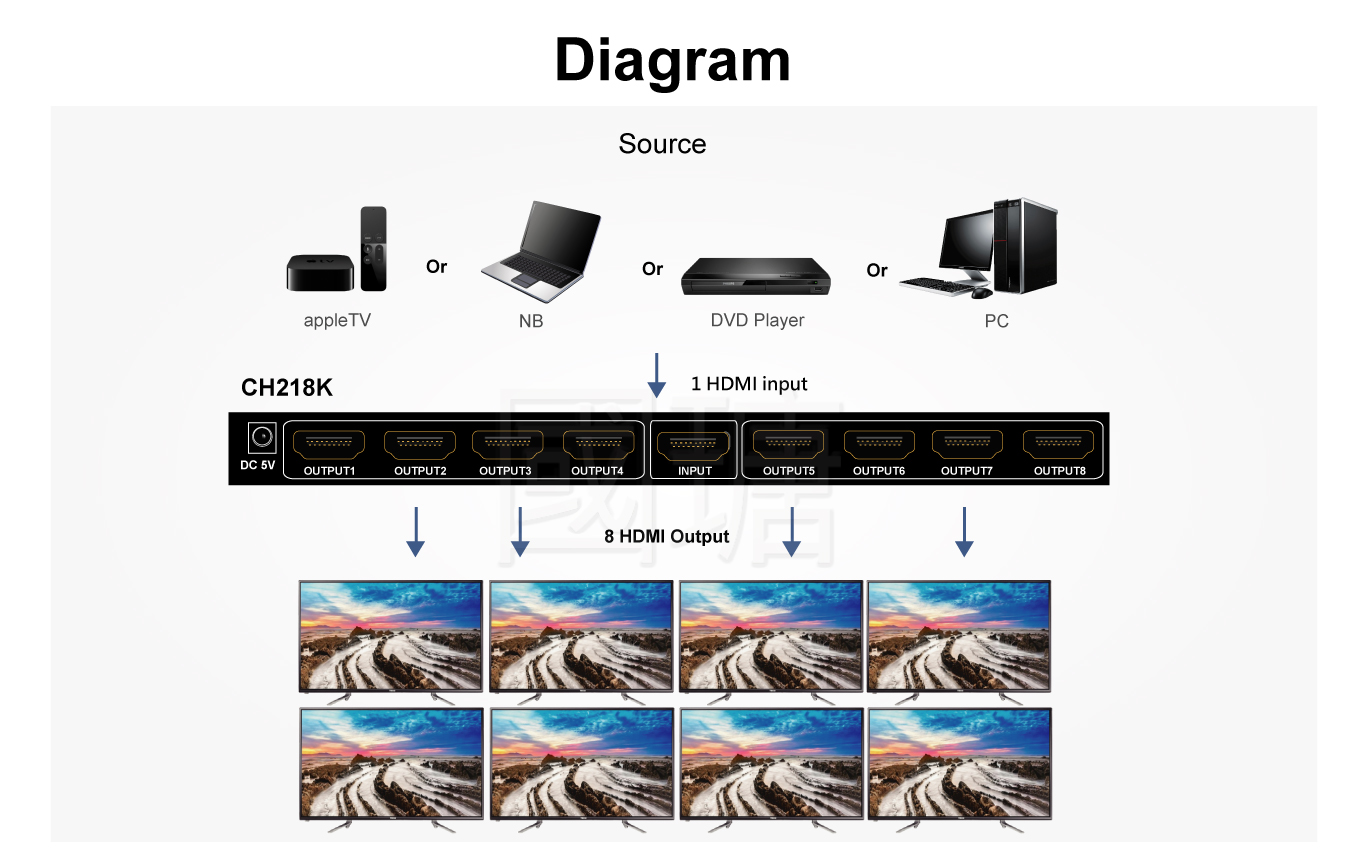

  • 1 port HDMI2.0 signal source input, 8 port HDMI2.0 ultra high definition 4K 60Hz signal source output.
  • Support HDMI2.0, resolution up to 4K/2K 60Hz.
  • Support 18Gbps high bandwidth.
  • Support 8/10/12 bit dark color.
  • Able to transmit 3D stereo signal format.
  • Support DTS-HD/Dolby-TrueHD/ DTS/Dolby-AC3/ DSD.
  • Support EDID management function, comes with eight kinds of EDID mode.
  • Support the 1st output with CEC function.
  • Support output down frequency resolution, can achieve the best quality video output.
  • Support RS-232 port online upgrade.
  • Remote control the source via the IR-RX of HDMI repeater which splitter works with to receive the IR command.

Specification

Model Name CH218K
Input 1 x HDMI2.0 input
Output 8 x HDMI2.0 output
Resolution up to 4Kx2K 3840x2160 60Hz resolution.
Audio format Support DTS-HD/ Dolby-trueHD/ DTS/Dolby-AC3/ DSD.
The length of the connecting cable Can be connected to a HDMI cable with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Transmission rate 18Gbps
Power supply DC 5V 2A
Dimensions 310 x 90 x 24mm ( LxWxH )
Weight 864g

Note:

  • It is not recommended to serial switchers, extender, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified adapter.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The HDMI2.0 Cable output + input cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X CH218K
  • 1 X DC 5V adapter
  • 1 X User manual
