CH1612


16x16 Matrix Switch Video Wall Controller

Video Wall and Matrix Switcher Solutions


Products / Matrix Switch + Video Wall

16x16 Matrix Video Wall Controller

Seamless 16-Screen Video Wall Integration | 16 Input Sources

Multifunctional audio and video signal processor

Enhance Your Viewing Experience with Advanced Video Wall and Matrix Switcher Solutions.

Quick switching

Experience seamless switching with our advanced technology, ensuring a 0-second fast display with no black screen. Perfect for professional presentations and home entertainment setups.

Ultra high resolution

Our advanced audiovisual solutions provide exceptional input and output capabilities, supporting resolutions up to 1080p at 60Hz.

Synchronized video wall and single screen display

Example: Displaying across 7 independent screens and a 3x3 video wall, totaling 16 screens.

Audio output

Supports up to 16 Channels of 3.5mm Audio Output for External Speakers.

External sound input

Each input port offers a built-in 3.5mm audio jack, providing 16 total inputs for external audio integration with HDMI output.

Dual-Port Control Interface

Dual RS-232 interfaces enable effortless control of matrix video walls, and other devices.

Scene Shortcuts

Benefit from 16 customizable scene shortcuts to swiftly switch between different scenes.

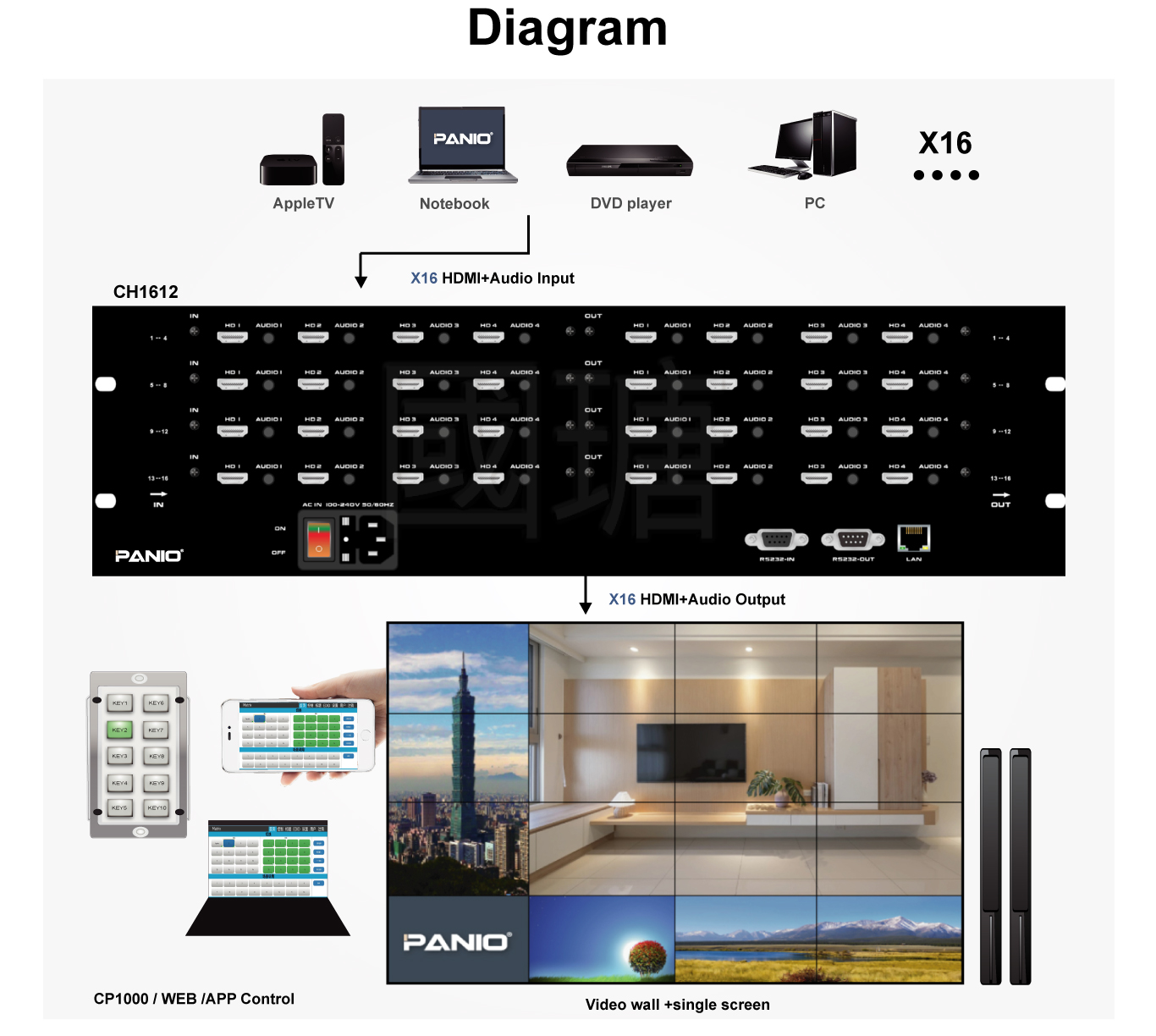

Matrix switch with video wall
Feature
  • Elevate Your Visual Experience with a 16-Screen Video Wall Matrix Switcher.
  • Experience Seamless Matrix Switching with Support for 16 Sets of HDMI+Audio Inputs.
  • Supports up to 1920x1080 60Hz Resolution, Backward Compatible.
  • Support HDMI1.4a, HDCP1.4.
  • Experience Seamless 0-Second Switching with No Black Screen Issues. Enjoy Instant, Real-Time, and Smooth Switching Effects!
  • Supports Multi-Screen Video Wall Splicing and Independent Single-Screen Display.
  • Equipping each input channel with EDID processing technology effectively resolves prevalent display issues, such as user dissatisfaction with screen quality, flickering, and complete lack of image output.
  • Supports independent sound input and separate output for enhanced audio management.
  • Multiple control options are available, including infrared remote control, TCP/IP network control, RS-232 serial control, and a dedicated mobile app.

Specification

Model Name CH1612
Input 16 x HDMI, 16 x 3.5mm
Output 16 x HDMI, 16 x 3.5mm
Input resolution The maximum resolution is 1920x1080 @60Hz, backward compatible.
Stitching output resolution Output resolution: 1080P\ 720P\ 1366 x 768 60Hz
Color depth 8 10 12bit
Color space YCbCr, RGB
The video transmission distance (Max.) The total length of the HDMI cable, including both the input and output segments, is limited to 10 meters.
Control method Remote control, TCP/IP, RS-232, Button, APP
Power AC 110V-240V 50/60HZ
Dimensions 486 x 316 x 148mm (LxWxH)
Weight 6Kg

Note:

  • To achieve optimal signal transmission, please use a certified HDMI cable.
  • The use of non-certified serial switchers, distributors, and converters may lead to compatibility issues, signal degradation, or equipment malfunctions.
  • In compliance with shipping safety regulations, the remote control battery is excluded.
  • For optimal system compatibility, please consult us before utilizing this device with other equipment.
  • The combined input and output cannot exceed 10 meters; for longer distances, we recommend using an optical HDMI cable for extension.

Package Contents

  • 1 X CH1612
  • 1 X Power cord
  • 1 X Remote control (Battery not provided)
  • 1 X Rack Accessories
  • 1 X User manual
