HW6120K


4K deform splice Video wall processor

Support a variety of horizontal and vertical mix and match video wall


Products / Video Wall

Irregular stitching

You can combine deformation and splicing Video wall images on different screen sizes.

Cascade expansion

A maximum of 12 TVs can be spliced together, and multiple HW6120K can be connected in series to achieve unlimited splicing.

Screen rotation function

Either output can present 90°, 180°, 270° picture flip function.

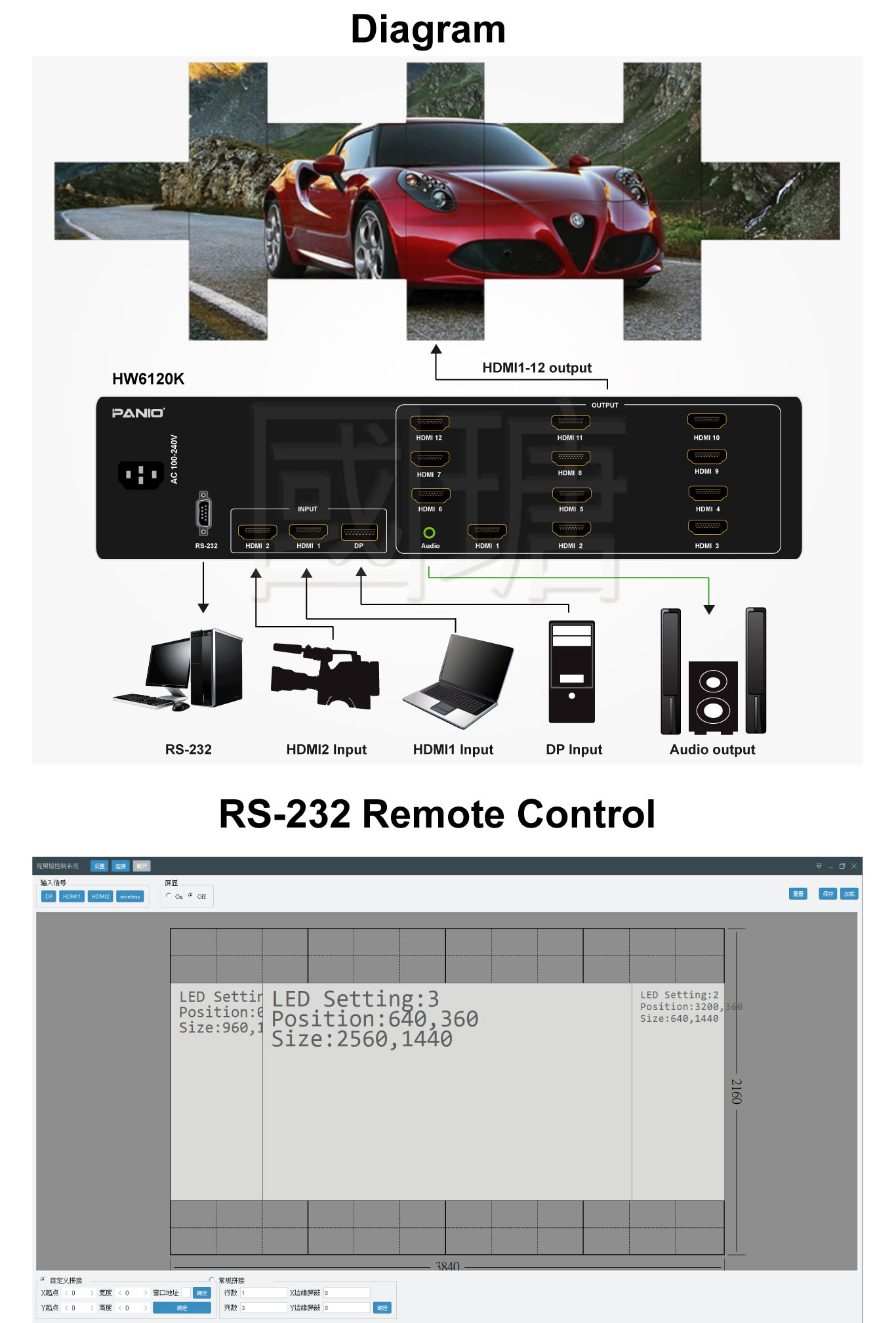

Multi-interface input

Support 1 HDMI2.0, 1 HDMI1.4, 1 DP1.2 signal input.

Audio and video separation

With audio and video separation technology, a built-in 3.5mm audio port can be connected to speakers to output sound.

4K resolution

Support input resolution up to 4K60Hz, output to 4 *1080P TVs to splice out 4K Video wall.

Feature
  • With the latest deformation technology, you can arrange the screens of different sizes at will, and combine the deformed spliced TV wall pictures.
  • Support 1 HDMI2.0, 1 HDMI1.4, 1 DP1.2 signal input.
  • Support input maximum resolution up to 3840 x 2160 60HZ.
  • Support multiple HDMI signal output, output resolution 1920 x 1080 60HZ.
  • Support audio and video separation technology, output built-in 3.5mm audio port, can be connected to speakers to output sound.
  • Support graphical software mouse drag and drop to set splicing screen. (Connect RS-232)
  • You can intercept any part of the input screen for display.
  • The single machine can be purchased with 2 to 12 picture splicing, and the multi-machine series connection can achieve unlimited splicing.
  • You can set any output to perform 90 degrees, 180 degrees, and 270-degree flip functions.
  • Display mode: You can choose to switch between screenshot mode, normal mode, full-screen non-deformation mode, and point-to-point mode.

Specification

Model Name HW6120K
Input 1 × HDMI2.0, 1 x HDMI1.4, 1 x DP1.2
Output HDMI1.3 (up to 12 channels), 1 x 3.5mm
Control mode Button, RS-232
Support resolution input up to 3840 x 2160 @60HZ, output support 1920 x 1080 @60HZ
Power supply AC 100-220V

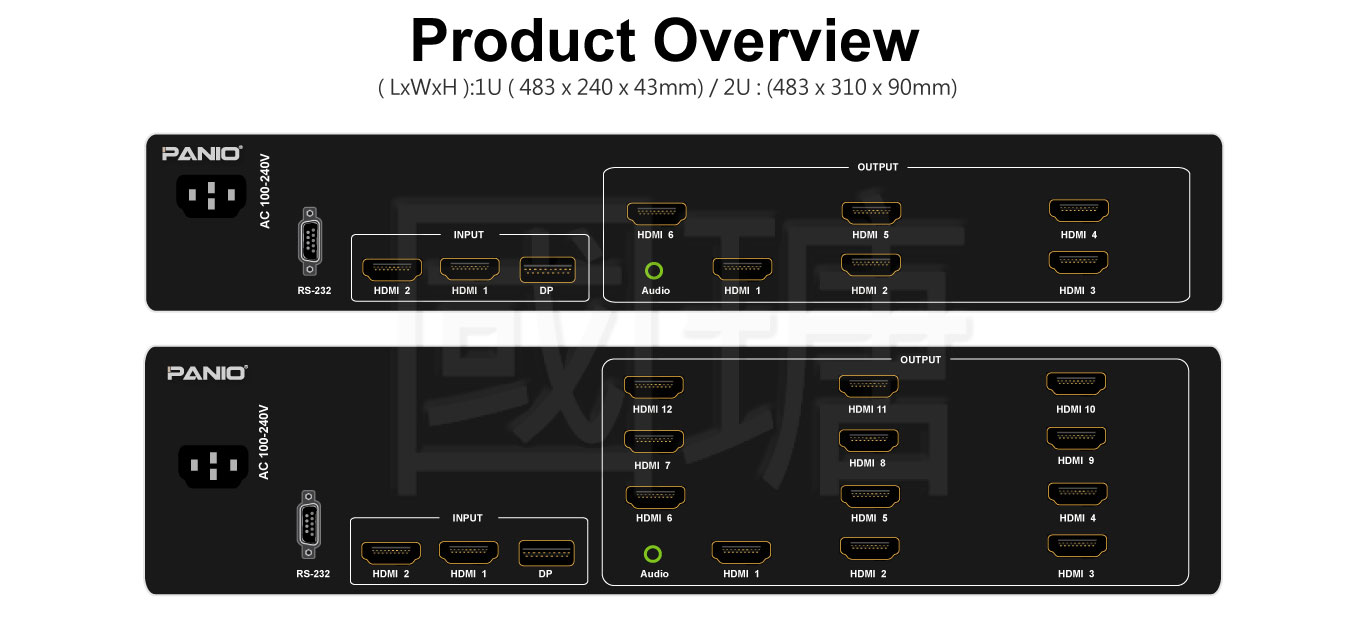

Dimensions 1U case: 483 x 240 x 43mm / 2U case: 483 x 310 x90mm ( LxWxH )
Item Weight 3Kg

Note:

  • Please use the original certified 4K cable.
  • It is not recommended to serially switcher, distributor, converter, and so on that has not been certified by the factory.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.

Package Contents

  • 1 X HW6120K
  • 1 X Power Cord
  • 1 X User manual
