HD4200K


4K 60Hz Type-C + VGA + HDMI 4 in 1+1 out switcher with extend

Support embedded analog audio, POC, RS232 and TCP/IP software control


Products / 4K 60Hz Extender

Network cable transmission

Audio and video signals are transmitted by HDBaseT technology and using network cables to distributed remotely play videos.

Switch + extend the signal

4 ports of signal input switching, 1 port of long-distance, and 1 port of the local synchronous output display.

Support 3 interfaces

Built-in Type-C + VGA + HDMI interface input.

4K 60Hz resolution

Support 3840 × 2160 60Hz resolution, YUV4:4:4, 18G, HDR10.

Display over long-distance

Transmit up to 70 meters at 1080P @60Hz and up to 40 meters at 4K @60Hz.

Audio extraction

Near-end and far-end speakers can be connected to output sound.

Microphone input

Support embedded analog audio, microphone input.

POC power supply

It can be powered by a single side, and the remote receiver is powered by the transmitter.

Feature
  • Support 1 x VGA, 1 x Type-C, 2 x HDMI input.

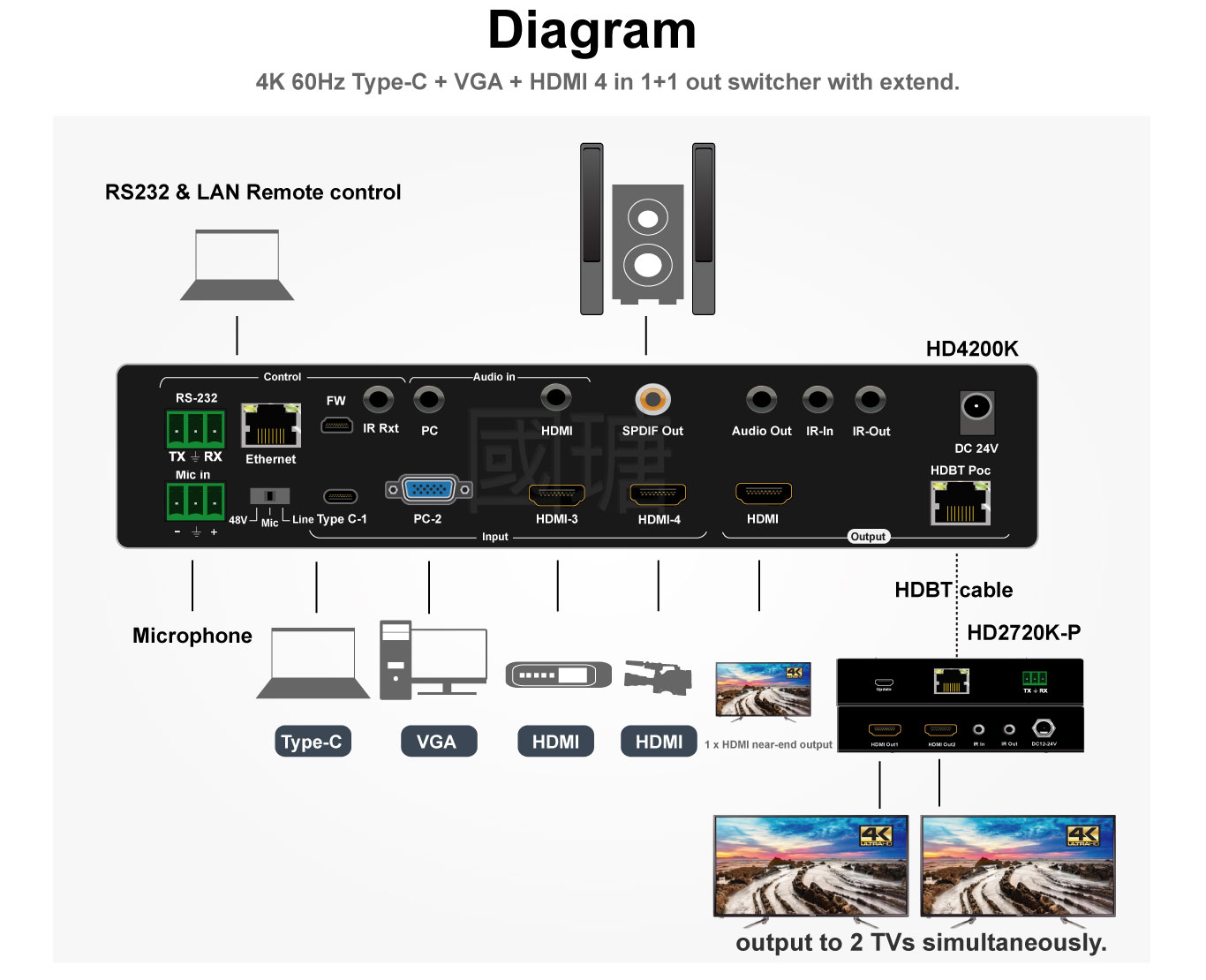

  • Support 1 x HDMI near-end output and 1 x HDBT network port can be extended to remote sync output.
  • Using HDBaseT technology, 4K signals can be transmitted remotely through the network cable.
  • The long-distance transmission signal must with the receiver (HD2720K-Plus-R).
  • The receiver can output to 2 TVs simultaneously.
  • Support 4K @60Hz resolution and YUV4: 4:4, 18G, HDR10.
  • Transmit up to 70 meters at 1080P @60Hz and up to 40 meters at 4K @60Hz.
  • Support HDMI2.0, HDCP 2.2 / 1.4.
  • The audio sampling rate is up to 192KHz, and the maximum support is 7.1CH.
  • Support software to set EDID function in multiple modes.
  • Support Analog / SPDIF audio extraction, analog output support PCM2.0, SPDIF output support Dolby, DTS, maximum 5.1CH.
  • Support wide-band bi-direction infrared routing control (38 ~ 56KHz).
  • Control method: LCD panel buttons, IR, RS232, TCP/IP control.
  • Support POC unilateral power supply (the receiver is powered by the transmitter).

Specification

Model Name HD4200K
Input 2 x HDMI input, 1 x Type-C input, 1 x VGA input
Output 1 x HDMI output, 1 x HDBT (RJ45) output, The receiver can output 2 ports HDMI.
Audio 2 x 3.5mm input, 1 x SPDIF output, 1 x 3.5mm output
Control mode 1 x RS-232 , 1 x TCP/IP Ethernet , 3 x IR
Support resolution 4K@60Hz,YUV4:4:4 / 4k@30Hz / 1080P / 1080i / 720P / 576P / 480P
Transmission distance Transmit up to 70m under 1080p 60Hz, 40m under 4K 60Hz
MIC switch Left switch for 48v microphone mode, Middle switch for MIC mode, Right switch for line mode(Analog PCM2.0 audio embedded)
Audio format supported PCM2.0, Dolby5.1, DTS5.1
Bandwidth 18Gbit/s
Power supply DC 24V/1A
Dimensions 235 x 137 x 39mm ( LxWxH )
Item Weight 1.175Kg

Note:

  • Please use a certified HDMI2.0 cable to connect the signal.
  • It is not recommended to serially switcher, distributor, converter, and so on that has not been certified by the factory.
  • To maintain quality stability, please use the original certified adapter.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • Please use Cat6 standard network cable (8-cores full).
  • To extend the signal, the network cable is connected to the HDBT/POC port, not to the Ethernet port.
  • Due to shipping safety considerations, the remote control battery not provided.

Package Contents

  • 1 X HD4200K
  • 1 X HD2720K-Plus-R
  • 1 X DC 24V 1A
  • 1 X Remote control (battery not provided)
  • 1 X CD
  • 1 X User manual
