[ VAS116 ] 16-Port VGA Switch with Audio & Remote

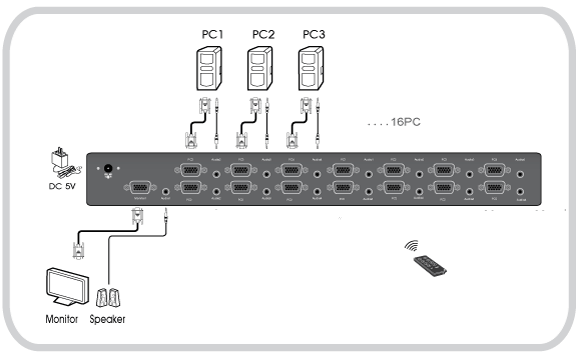

VAS116 dispays Video inputs from 16 computers on a single monitor or projector with Audio Function support. VAS116 is euipped with IR remote controller to control this VGA switch by 6 feet away. From use in test bench facilities, data centers and help desks, to classrooms, and multi-media centers, ACAFA 16 ports VGA Switch & Extender with Audio & Remote delivers both performance and value.
Display video input from 16 computers on 1 monitors or projectors.
Can be used as the sharing device for projector.
PC selection via push buttons or IR remote control.
IR remote control allows you to switch outputs from up to 6 feet away.
Support Daisy-chain to expand the number of computers connection up to 3 layers.
Enhance video signal enhancement allows monitor to be placed up to 210 feet away.
Supports video resolutions up to 2048x1536.
Suitable for VGA, SVGA, XGA, SXGA, UXGA, and Multisync monitors.
Made in Taiwan.


1 x VAS116
1 x IR Remote Controller
1 x DC 5V 1000mA Power Adaptor
1 x User's Manual


Model
VAS116
Connector Ports
Video In
1x HDB-15 Female
Video Out
16 x HDB-15 Female
Audio In
1 x Audio jack Female
Audio Out
16 x Audio jack Female
LEDs
Selected
16 (Red )
ON-Line
16 ( Green )
Selection Method
Push Button or IR Remote Control

DDC, DDC2,DDC2B monitor

Yes (Max. Resolution up to 2048 x1536) @ 85Hz

Power
DC5V 1A
Environment
Operating Temp
0°C ~ 50°C
Storage Temp
-20 °C ~ 60°C
Humidity
0 ~80% RH, NC
Physical Properties
Housing
Metal
Dimensions ( L x W x H )
44 x 15.7 x 4.5 (cm)
