[ UE250 ] USB2.0 Extender over Cat5e/6- 50m

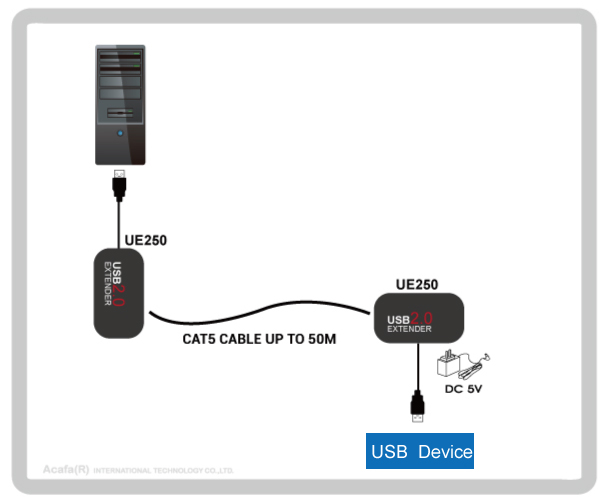

This device is a low cost high performance USB 2.0 extender, compliant with USB 2.0 SPECIFICATION (up to
480Mbps).With this device you can extend the transmission distance between USB device and the host
(computer) up to 50meters, eliminates the 5 meters distance limitation of USB.
Support for any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices.
Allows a USB device to have its cable length extended up to 50m.
Support suspend/resume detection.
Support Hot Plug.
Low cost in comparison with extension of cable using Hubs or other USB extender.
No software driver required.
Operating Temperature:0˚C to 85˚C.
Made in Taiwan.


1 x Transmitter
1 x Receiver
1 x DC5V2A Power Adaptor


Model UE250

Local Unit

Upstream Port

USB Type A Male

Downstream Port RJ45 Jack
Power Bus-Powered

Remote Unit

Upstream Port USB Type A Female
Downstream Port RJ45 Jack
Power Self-Powered

Built In Cable Length

1 Feet

Interconnect Cable

Standard Category-5/5e/6 Network Cable

Max Cable Length

50m

Operating Temperature

0°C∼85°C
