[ UE2100 ] USB2.0 Extender over Cat5e/6- 100m |

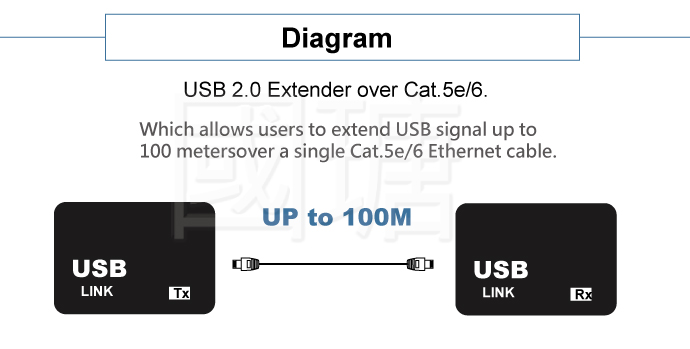

UE2100 is the latest new designed USB 2.0 Extender over Cat.5e/6,which allows users to extend |

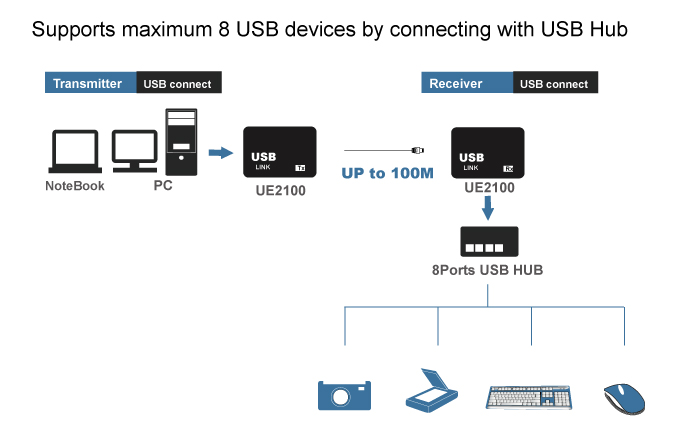

| USB signal up to 100m. With expandable devices demanded that the UE2100 supports maximum |
| 8 USB devices by connecting with USB Hub, and comply with USB 2.0 or 1.1 devices: keyboard, |
mouse, flash drive, hard drive…etc. |
|
|
 |
| |
 |
Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices . |
|
Operates with USB 2.0 high-speed host controllers and USB 1.1 classic hosts. |
|
Plug and play. |
|
No driver installation required . |
|
Supports all major operating systems including Windows• ®, Mac OS®, and Linux®. |
|
Single port USB extender. Number of devices can be increased by using standard USB Hub. |
|

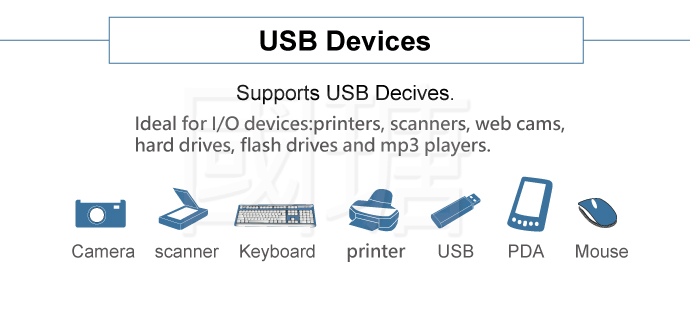

Ideal for I/O devices, printers, scanners, web cams, hard drives, flash drives and mp3 players |
|
Bus powered local unit at computer. D/C power at remote unit |
| |
|
|
|
 |
|
 |
| |
|
1 x Transmitter |
|
1 x Receiver |
|
1 x DC5V2A Power Adaptor |
|
USB 2.0 Cable (1.8m) |
|
| |
|
 |
| |
| Model |
UE2100 |
Extend Distance |
100m over Cat.5e (or better) |
Transmitter Connector |
1 x USB Type B (Female) |
1 x RJ45 |
Receiver Connector |
1 x USB Type A (Female) |
1 x RJ45 |
Power adapter |
Transmitter (no need) |
Receiver ( DC 5V) |
Operating temperature |
0°C to 50°C |
Maximum USB devices supported |
8 USB devices by connecting USB Hub |
|
|
|
|
