[ KP04A ] Quad-split Screen Roaming Mouse KVM Switch

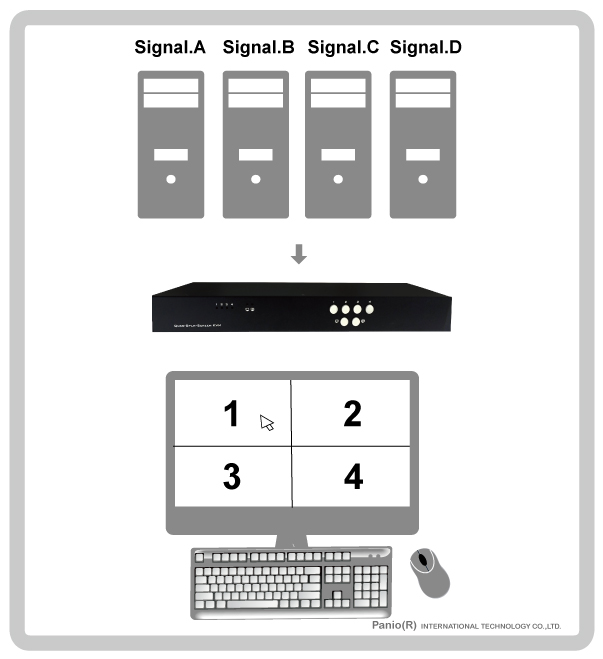

The KP04A is a device for user to use the keyboard/mouse to control 4 computers.
It operates like a four-port KVM switch in full screen mode
however, the 4 PC’s could be displayed at a time while switching to the Quad-Screen Mode.
Nevertheless, one could use the mouse to switch the port while the mouse moves across the boundary
of each screen.

Full Screen/Quad Screen Display
Switch Ports by button or hotkey as well
Seamless Cursor & Roaming Mouse switch.
Supports USB Hub & Audio out switching.
Made in Taiwan.




1 x DC12V 2A
1 x KP04A


Model KM04A
Host Video DVI-I  x 4
USB USB (Type-B) x 4
Audio Audio jack (3.5mm female) x 4
Console Video DVI-D  x 1 Resolution 1920x 1080, 60Hz
KB/MS Console USB (Type-A) keyboard Console Port x 1 USB (Type-A) mouse Console Port x 1
USB HUB USB (type-A, vertical) x 2
Audio Stereo speaker (3.5mm female) x1
Front panel button/ LED Full Screen button / LED 1 / 1
Port Selector Push Buttons/LED 4 / 4
Quad Screen button / LED 1 / 1

Miscellaneous

Port Select Front panel / Hotkey / Mouse-moving-across-boundary
Full /Quad Screen Selection Front panel /
hotkey
buzzer yes
Power DC-in 12V DC / 12A Center-pin-positive polarity
Power Adapter 100 to 240 V, Freq. 50/60Hz
Environment Operation Temp 0 to 40 degree C
Storage -20 to 60 degree C
Humidity 0-80% RH, non-condensing
Mechanism Dimension 360 x 136 x 44 mm
