KH2000 HDMI/VGA/USB/RS232/IR/Audio Matrix Extender over IP/Fiber
|
KH2000 is the HD KVM over IP extends HDMI,VGA, USB, 2-way analog audio, RS-232, and
|
bi-directional IR over a Gigabit Local Area Network or Fiber Optic. |
The Sender and Receiver units can be automatically or manually configured to unique IP |
addresses to allow the connection of multiple Senders and Receivers to the same network. |
Multiple Receiver units can simultaneously connect to any Sender unit within the network to |
create a virtual cross-point matrix of up to 16 Senders and multiple Receivers .
|
|
|
 |
| |
|
 |
Extends HDMI,VGA, USB, RS-232, bi-directional stereo analog audio, and bi-directional IR
|
| |
over IP / SFP |
|
Matrix switching extension over IP. |
|
Supports resolutions up to 1920 x 1080. |
|
Supports video wall matrix extension over IP. |
|
USB 2.0 and backward-compatibility with USB 1.1 |
|
HDMI (non-HDCP protected ) into VGA out . |
|
Web UI shows the connection status included all of Tx and Rx. |
|
Supports multi-consoles to max 255 PCs ( multi-console KVM Extender ) . |
|
Field-upgradable firmware via web server interface |
|
Support HDR pass through . |
|
Supports just over 65,000 Receivers, depending on the network bandwidth and number of |
| |
ports of your network switch. |
|
Supports up to 16 Senders (DIP) or 250 Sender( Command mode ) |
|
Extend by CatX or Fiber |
|
PoE supported ( Optional ). |
|
|
| |
|
 |
| |

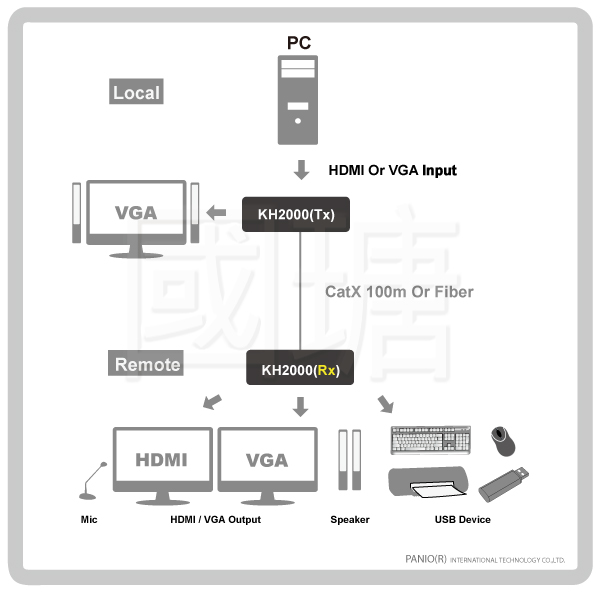

UHD+VGA+Audio+IR+RS-232+USB2.0 over IP / Cat.5e/6 / Fiber Optic with Video wall |
Support both digital HDMI and VGA+Audio input / output . |
Support Printer connect. |
| |
|
| |

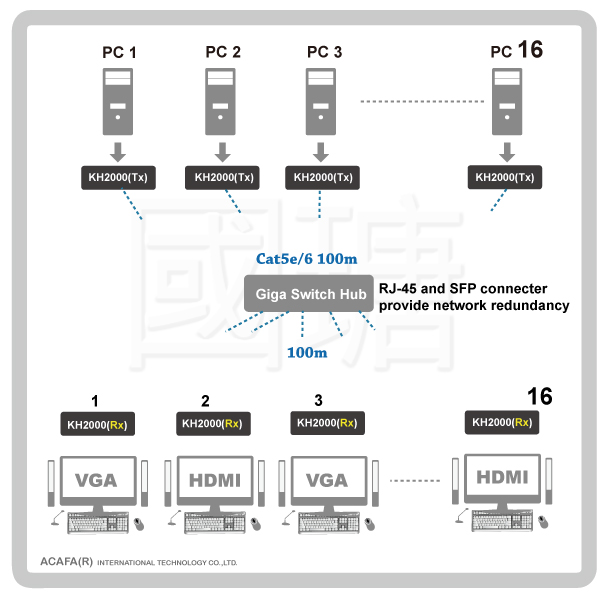

16X16 Diagram: |
Video wall supports up to 8x8. |
Support IR Remote control. |
Up to 16 Groups Multi-Casting. |
| |
|
| |
 |
| |
|
|
| |
|
 |
| |
|

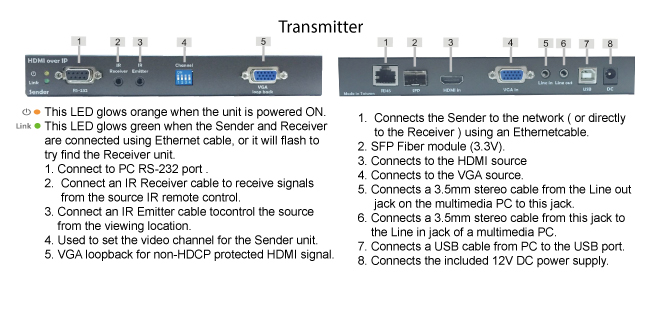

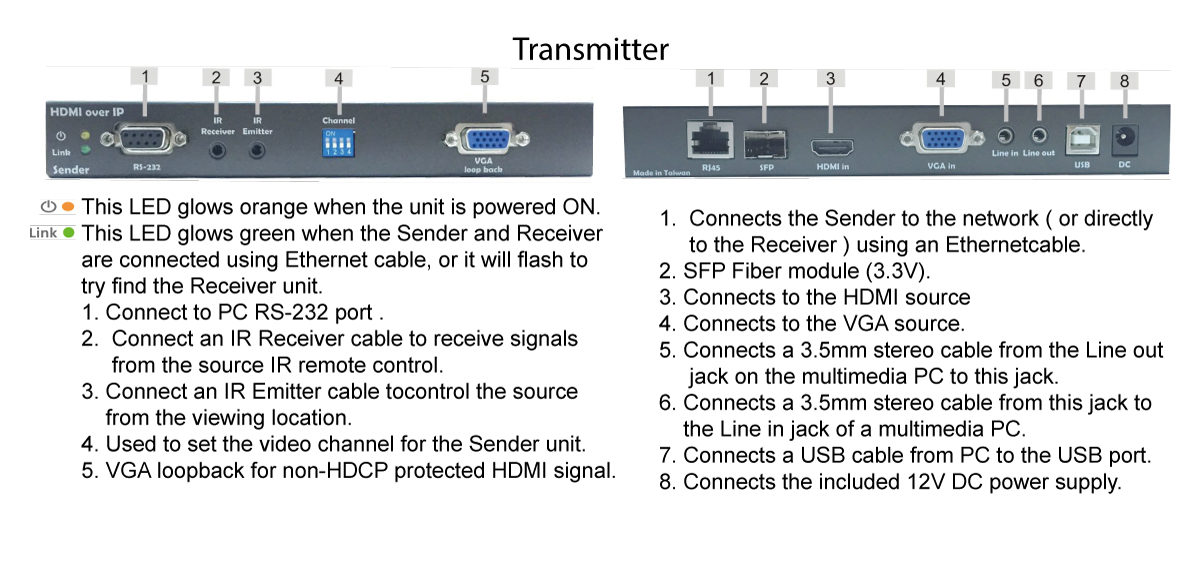

KH2000 UHD KVM Extender - Transmitter
|
|

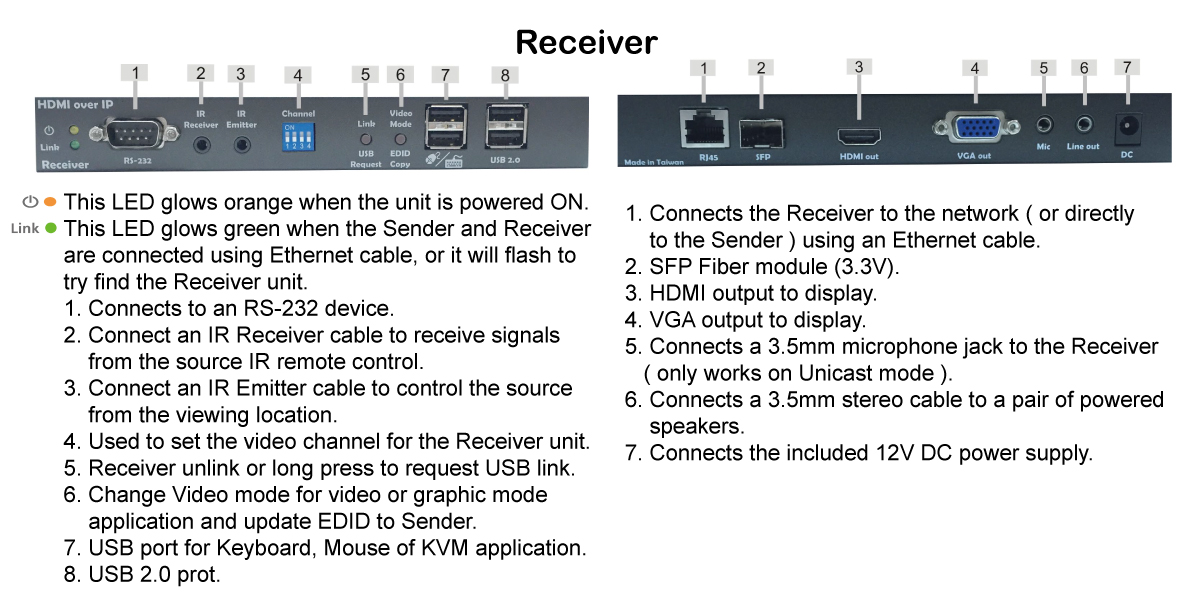

KH2000 UHD KVM Extender - Receiver
|
|
1 x 12V DC power supply |
|
1 x IR emitter cable or 1 x IR receiver cable ( optional ) |
|
| |
|
 |
| |
| MODLE NAME |
KH2000 (Transmitter) |
KH2000 (Receiver) |
Video |
|
HDMI + VGA , female |
- |
Output |
VGA female ( Loopback ) |
HDMI Type A 19-pin, female VGA 15-pin, female |
|
Line-In |
3.5mm mini-stereo jack |
- |
Line-Out |
3.5mm mini-stereo jack |
3.5mm mini-stereo jack |
MIC-In |
- |
3.5mm mini-stereo jack |
USB
|
|
USB Type B, female |
- |
USB Device |
- |
USB Type A, female x 4 |
RS-232 Connector |
DB-9, female |
DB-9, male |
IR
|
|
3.5mm mini-mono jack |
3.5mm mini-mono jack |
IR Extender |
3.5mm mini-stereo jack |
3.5mm mini-stereo jack |
Ethernet |
RJ-45, gigabit/ SFP Fiber |
RJ-45, gigabit / SFP Fiber |
Max Video Resolution |
1920x1080@60Hz, Full HD 1080P |
ID Selector DIP switch |
DIP Switch |
DIP Switch |
Link Indicator |
LED, green |
LED, green |
Power Indicator |
LED, orange |
LED, orange |
Power supply |
12V 1A DC |
12V 1A DC |
Consumption |
10W (max.) |
10W (max.) |
|
|
|
|
|
