[ HS401 ] 4-Port HDMI Switch

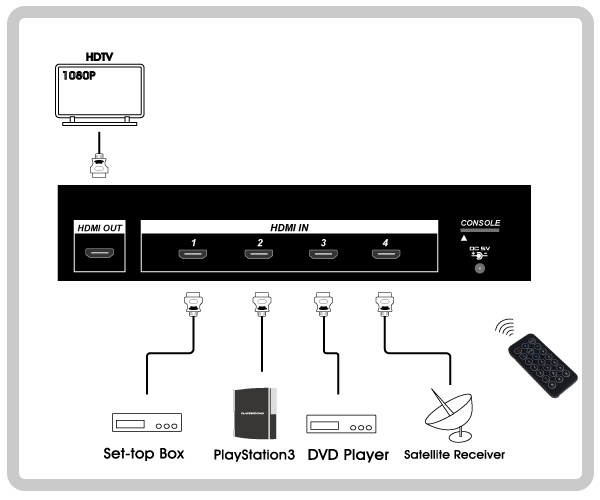

The HS401 4 Ports HDMI audio/video switch, is a multi-input, single output unit designed to conveniently connect, four HDMI source units such as, DVD player, Set top box, Satellite receiver, etc. then direct that input to a single HDMI monitor.
4 to 1 full function digital HDMI AV switch, easy switch by automatic, manual and remote control.
Built in auto detection when in booting status and auto switch to the input port which has the signal.
Receiving signal by built in or external infrared receiver(optional).
LED display the system connection status.
With latest HDMI 1.3, promote image up to 10 bit high quality resolution.
Support HDCP digital copy free certificate system.
Hot pluggable, easy installation without any software.
Economical home theater solution.
With ADI high level video switch display chipset, high compatibility.
Resolution up to Full HD 1080P.
Made in Taiwan.


1 x HS401
1 x IR Remote Controller
2 x HDMI Cable 1.8m
1 x DC 5V 1A Power Adaptor
1 x External Infrared Receiver(Optional)


Model
HS401
Device Connections
4
Number Of Monitors Controlled
1
Port Selection
Pushbutton / Infrared Remote Controller / Line Type IR Remote Control ( Buys in addition)
Connectors
Display HDMI Out 1 x HDMI Type A Female
Device HDMI In 4 x HDMI Type A Female
Power 1 x DC/9V , 0.6A
LEDs On Line 4 (Green)
Selected 4 (Yellow)
Video 480P,720P,1080i,1080P
HDCP Support HDCP
HDMI HDMI 1.3
Physical Properties Housing Metal
Weight 400g
Dimension ( L x W x H ) 192 x 85 x 24 mm
