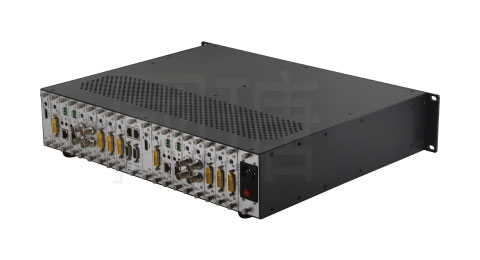

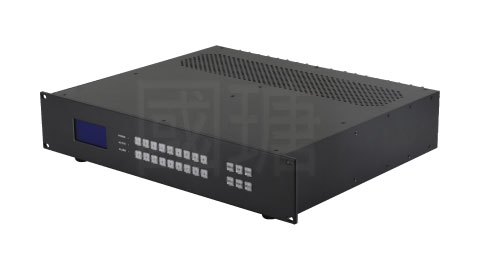

Multi-Signal modular Matrix switcher- Support HDMI/ DVI/ CVBS/ YPbPr/ VGA / SDI with Audio
The GMS9000 is an integrated video and audio modular matrix switcher,The superior modular matrix
manages any type of signals.
This switch supports long haul transmission, maintain power reliability in the event of failure and offer the best
flexible solutions for AV system deployment.
The EDID can be selected between seven different modes or copied from the attached displays. You can
control the switch via front buttons, web control, or RS-232.

Supports 3GSDI, DVI, HDMI, Analog Signal, Fiber Signal, HDBT Signal .
Standard chassis design.
Supports 9 inputs and 9 outputs.
Supports seamless switching, no black/ blue/ split screen while switching.
Supports Web / RS-232 / Front Buttons control.
Supports audio embedded and de-embedded.
Dual control system Design.
Supports resolution exchange, several resolutions can be chosen and used .
Supports HDBT signal input and output, the distance can up to 70/100m with Cat5e/ 6 cable
Supports fiber signal input and output, the distance can up to 10km with single model fiber .




Optional Products



4K HDMI input card / output card

Supports 1 HDMI port
4K 30Hz pass-through card
Supports HDCP1.4, EDID Management


4K HDBT Extender input card / output card (70m / 100m)

Supports 1 RJ-45 port and 1 HDMI loopout ( input )
Distance can up to 70m/100m with the Cat6 1080p60 40m/70m when 4k30)
POC function, RS232 and bi-direction IR / work with CM5500 or HD700


1080P HDMI Seamless switching input card / output card

1 HDMI+3.5mm audio port
Supports all the resolutions under 1920*1080
Supports HDCP


1080P Multi-signal Seamless switching input card / output card

1 HDMI/ DVI/ VGA/ YPBPR/ CVBS+3.5mm port by DVI-I port
Converts all types of signals to all types of signals.
Supports HDCP


1080P 3GSDI Seamless switching input card / output card

1 3GSDI+ 3.5mm port and 1 3GSDI loop out
Automatically adpot the SD, HD, 3G SDI signal



1080P Fiber Seamless switching input card / output card

1 Fiber signal port
Distance can up to 10km with 1 core single model fiber
work with CM5500F


MODLE NAME GMS9000 Multi-Signal Matrix Switch
 Input
HDMI、DVI、3GSDI、VGA、YPBPR、CVBS、HDBase-T Extender、Fiber Extender、3.5mm
Output
HDMI、DVI、3GSDI、VGA、YPBPR、CVBS、HDBase-T Extender、Fiber Extender、3.5mm
Control
Dual RS232, dual LAN(WEB GUI), front buttons
Power Supply
AC 110V-240V 50/60HZ
Dimension
482X390X88 mm ( L x W x H )
Unit Weight
6 KG
Housing material
Metal
Operating Temperature
-10 ~ 50°C
Humidity
10%~90%RH
