CM5500 Mixed signal Extender-70m , with Audio, RS-232,POE |
CM5500 is an HDBaseT technology extender, it supports no compression, no losses, no latency HDMI signal |
transmission.
With DVI-I interface design , it can support DVI/ HDMI/ CVBS/ YPbPr/ VGA transmission with |
different adapters. All the signals are transmitted by one single CAT5E/ CAT6/ CAT7 cable, for 1080P it can |
transmit to a distance of 70m(230ft), for 4K30Hz, it can up to 35m(115ft). |
support bi-directional RS232 / IR transmission and POE / EDID management |
|
|
 |
| |
 |
Transmit highest quality audio and video, for 1080p up to 220 feet and 4K can up to 110 feet with |
| |
Cat6/6a/7 cable . |
|
Highest resolutions supported up to 4K2K@30Hz
|
|
Equipped with EDID management capability |
|

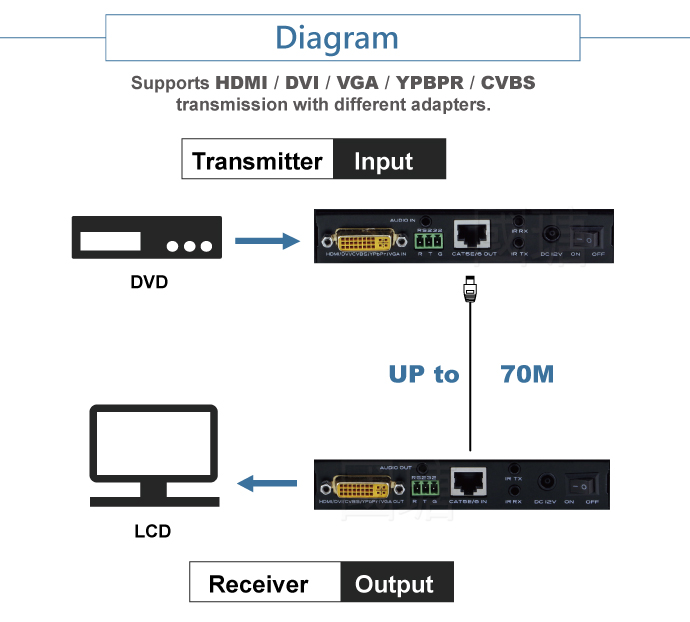

Support DVI/ HDMI/ CVBS/ YPbPr/ VGA transmission with different adapters. |
|

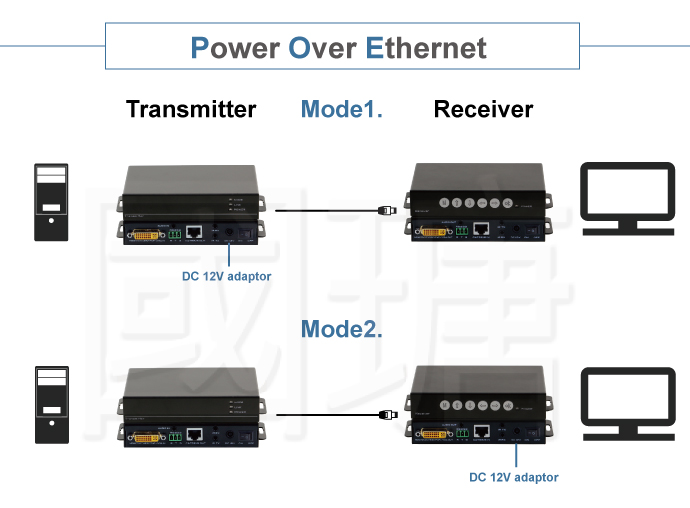

Support POE. |
|
Supports 7.1 DTS Master HD, Dolby True HD. |
|
Audio embedded and de-embedded. |
|
 |
 |
 |
 |
 |
|
| |
 |
| |
A: DVI-I interface (DVI/ HDMI/ CVBS/ YPbPr/ VGA)input port |
B: Audio input port |
|
|
|
|
|
H: OFF/ON switch |
| |
Receiver |
| |
 |
| |
| A: DVI-I interface (DVI/ HDMI/ CVBS/ YPbPr/ VGA) output port |

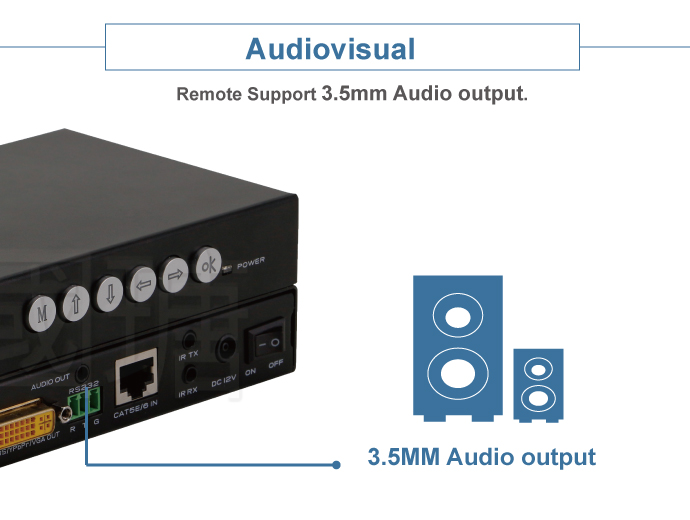

B: Audio output port |
C: 3-pin RS232 port |
D: RJ45 output port |
E: IR transmitter port |
F: IR receiver port |
G: DC 12V input port |
H: OFF/ON switch |
| |
 |
| |
|
2 x HDMI to DVI Conversion adapter |
|
2 x VGA to DVI Conversion adapter |
|
2 x YPbPr to DVI Conversion adapter |
|
2 x Power adapter (DC 12V) |
|
| |
 |
| |
| Model |
CM5500-Tx |
CM5500-Rx |
Input
|
1×DVI-I, 1×3.5mm Audio, 1×RS232,2×IR |
1×HDBaseT |
Output |
1×HDBaseT |
1×DVI-I, 1×3.5mm Audio, 1×RS232,2×IR |
Protocol
|
Supports HDCP, EDID management
|
Resolution
|
All DVI single channel resolutions
|
Color Space
|
1080p: 36Bit Deep Color; 4K: 24Bit True Color, 4:2:2
|
Bandwidth
|
10Gbps |
Distance
|
1080p60Hz:70m(Cat6/7) ; 4K30Hz: 35m(Cat6/7)
|
Dimension |
152×100×27（mm） |
| Power Supply |
DC12V 1.5A
|
Housing
|
Metal
|
Working Temperature |
0℃-50℃
|
Working Humidity |
10%-90% |
Weight
|
200g |
|
|
|
|
