CK1000 - HDMI USB KVM Over IP Extender -100M

This extender can extend the HDMI signal to 100meters over one single CAT5e/CAT6/CAT7 cable. It's compatible with all the HDTV formats, supports one way IR transmission, the max resolution can up to 1080P@60Hz. With KVM function, it provided users to remote control the equipment. With indicators on the front panel, users will be much easier to know the equipment working status. Last but not least, this extender also can connect to the network switch, then it can realize one to many or many to many.
This equipment has popularly used in meeting room, military, bank, government, medical and so on fields.

Supports KVM function to realize remote control.
Over one single Cat5e/6 cable or IP up to 100m transmission.
Support all HD formats, the maximum resolution up to 1080P60Hz
Supports one way IR.

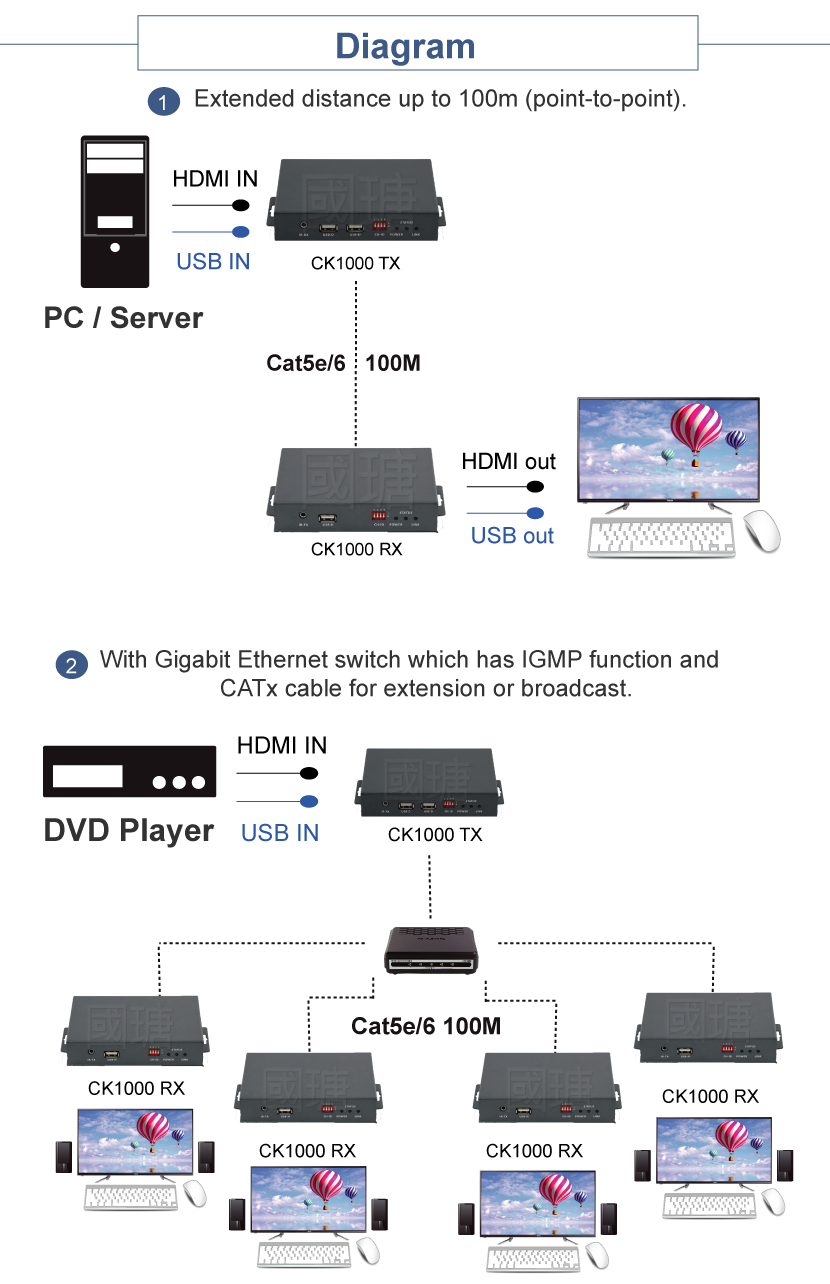

Matrix switching extension over IP.
Supports multi-consoles to multi PCs ( multi-console KVM Extender ) .
Made in Taiwan.

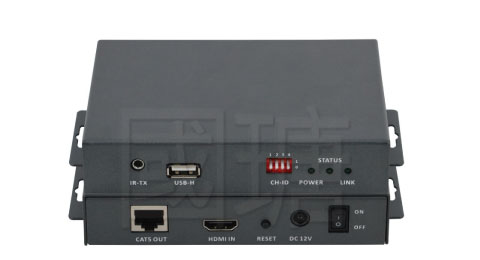

Transmitter

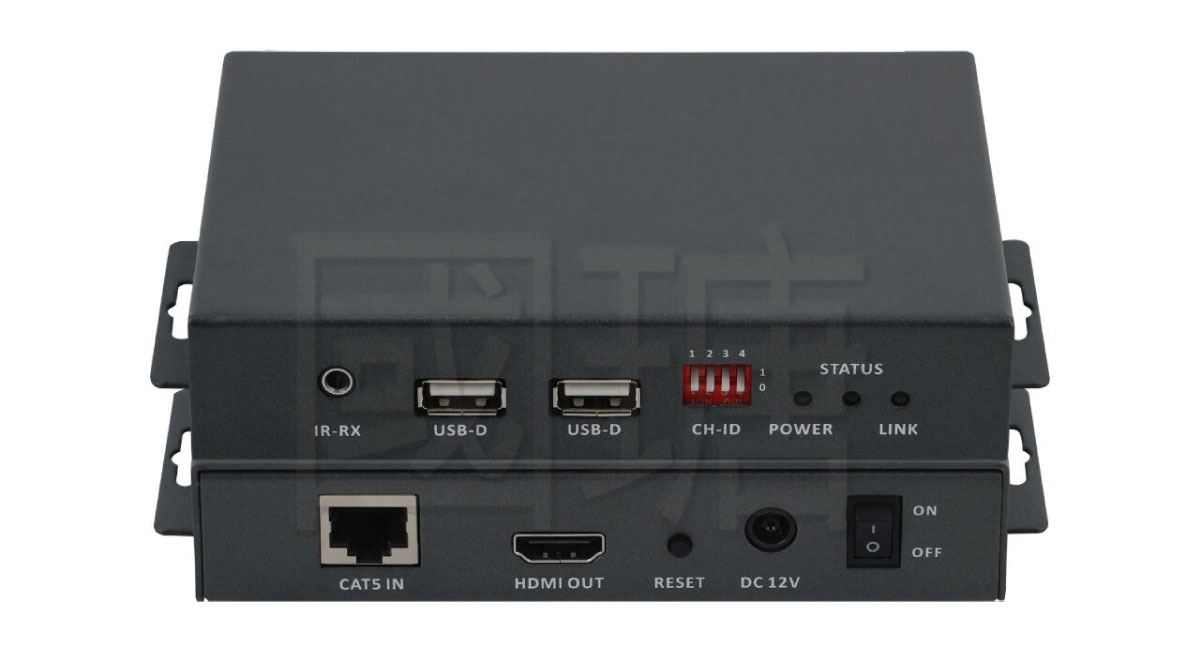

Receiver

2 X DC 12V

MODLE NAME CK1000 Transmitter CK1000 Receiver
 Input
1*HDMI, 1*USB, 1*IR
 RJ-45
Output
 RJ-45
1*HDMI, 2*USB, 1*IR
Protocol
Support HDMI1.3 and compatible with HDCP1.4
Transmission Distance
CAT5e/6 cable:100m (1080p60Hz)
Video Resolution
Supports 1080P60Hz and below
Power Supply
External DC 12V / 1.5A Adaptor
Dimension ( L x W x H )
135×92×27mm
Unit Weight
0.8 Kg (Tx+Rx)
Housing material
Metal
Operating Temperature
32~ 122°F  (0~ 50°C )
Humidity
10%~90%RH
