AI201 Single Port KVM over IP

The KVM over IP technology (IP-KVM) combines digital remote KVM access via IP networks with
access devices that can save your money, time, space, and equipment.
comprehensive and integrated system management. The IP-KVM defines a new class of remote KVM

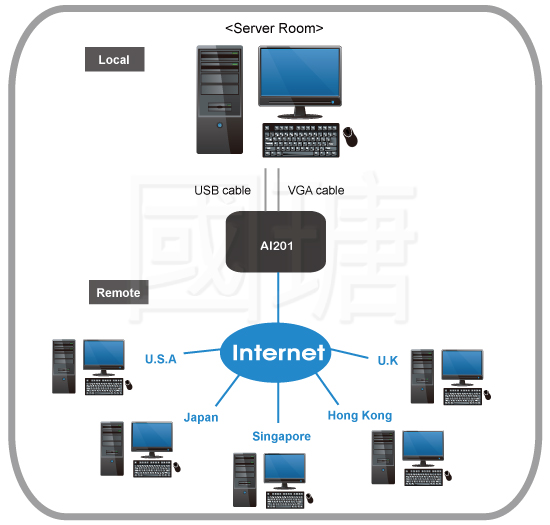

The IP-KVM provides convenient, remote KVM access and control via LAN or Internet. It captures,
digitizes, and compresses video signal and transmits it with keyboard and mouse signals to and from a
remote computer. IP-KVM provides a non-intrusive solution for remote access and control. Remote
access and control software runs on its embedded processors only but not on mission-critical servers,
so that there is no interference with server operation or impact on network performance.

Manage servers around the world.
KVM (keyboard, video, and mouse) access over IP and analogous telephone line (modem needed).
Full control under any OS, in BIOS mode, during boot, at Blue Screens.
Support VNC, major browser with Java.
No additional software necessary on servers.
Support Virtual Media.
256 bit SSL encryption of all transmitted data and Certificate management.
Automatically senses video resolution for best possible screen capture.
Serial over LAN.
Video Resolution up to:
Local console 1920 x 1200
Remote console 1920 x 1200, High-color depth 16 bits
High -performance mouse tracking and synchronization.
Automatic adjustment of data rate to transmission line.
Drive redirection function on the remote console control bar, Remote mass storage
control.
Can be controlled over all java -enabled Browsers.
Firmware update via web interface.
Port to connect a user console for direct analogous access to KVM switch.
Made in Taiwan.




1 x AI201
1 x CD-ROM (software utilities and User ’s manual)
1 x AC to DC Power Adapter (DC12V / 1A)
1 x Power Cord cable (6 feet)
1 x Rack Mount Kit
1 x USB cable (6 feet)
1 x 1-to-2 KVM cable (6 feet)


Model AI201
VGA Resolution
Local : 1920 x 1200
Remote : 1920 x 1200
OS supported
W indows, Unix, UnOS supported ix -like OS(Sun Solaris, Linux). Mac
OSX
Browser supported
Microsoft Internet Explorer version 6.0 or above or
Netscape or Mozilla or Safari
IP setting
DHCP, Bootp, Fix IP (DDNS supported)
Network Connection
10/100 Ethernet
Telephone line (modem needed)
Management Interface
Web , Utility, Telnet, Serial Por
Event log
NFS, SMTP, SNMP trap

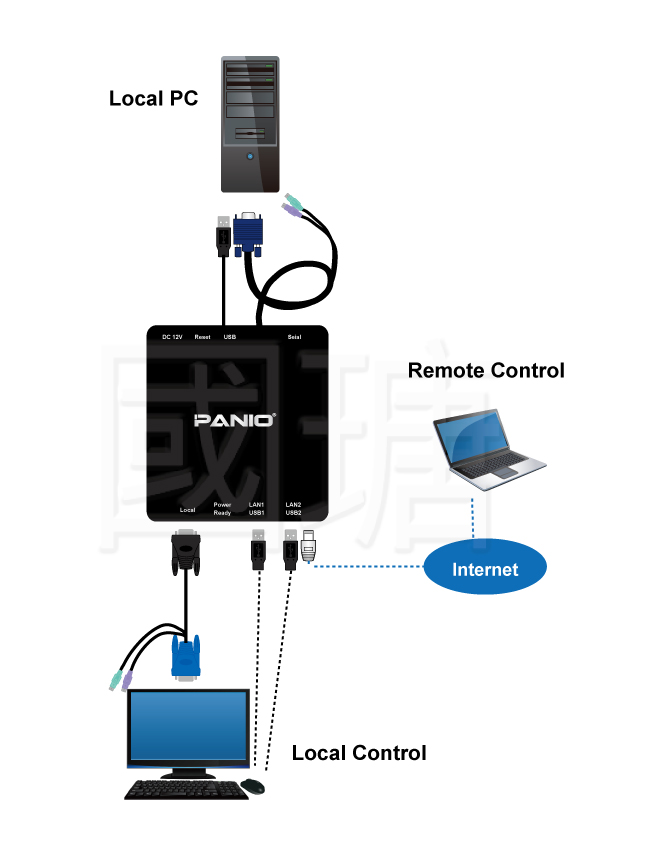

Hardware
Host Side
Keyboard
VGA HDDB 15-pin (female)
Connect to PC or KVM switch
Mouse
Monitor
USB
USB 2.0 mini
Power Adapter
DC12V1A
Console Side
Keyboard
USB port
Mouse
USB port
Monitor
VGA HDDB 15-pin (female)
LAN
Standard RJ-45 Connector
Serial Port
Standard RJ-45 Connector
Reset
1 button
Others
Housing
Metal
Form Factor
0-U
Temperature
Operation
0~ 50℃
Storage
-20 ~ 60℃
Weight(kg)
1 kg
Dimension(mm)
103 x 87 x 28.5
